Objective: Apply materials and render your collection for a polished, professional finish.

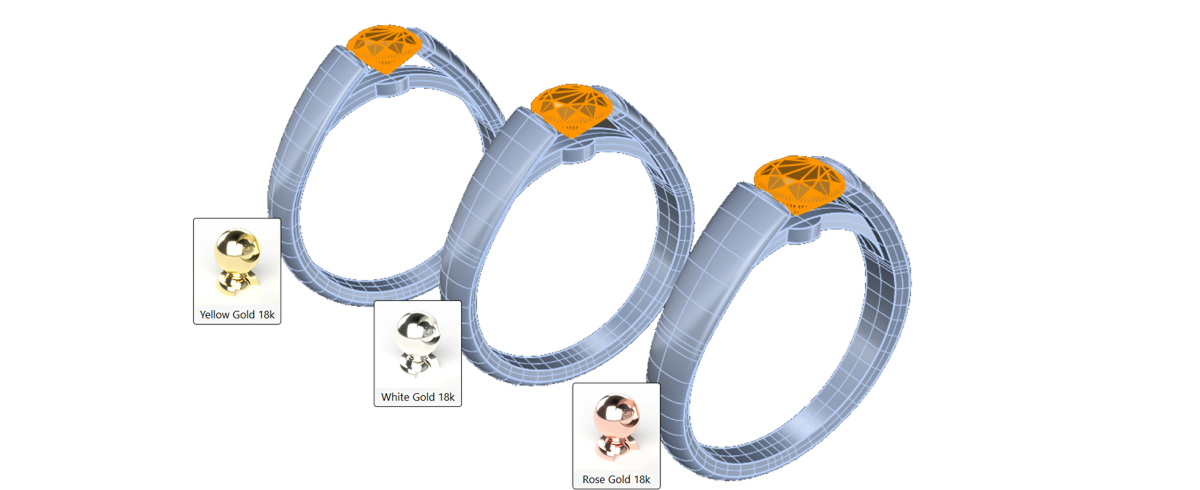

Apply materials
In the Render and Animation tab, materials for the metals rendering:
- Yellow Gold 18k
- White Gold 18k
- Rose Gold 18k

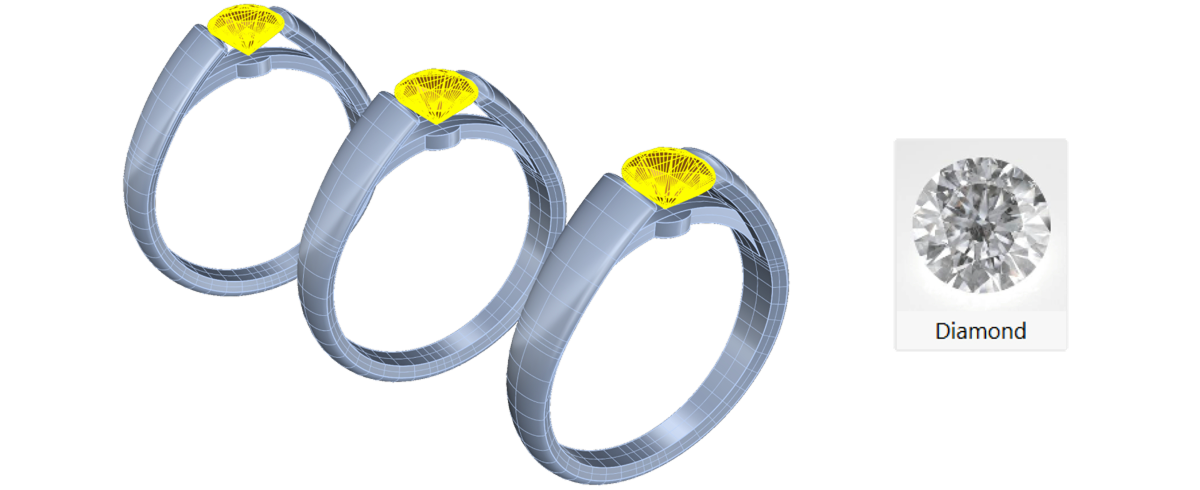

For the gems, apply the Diamond material.

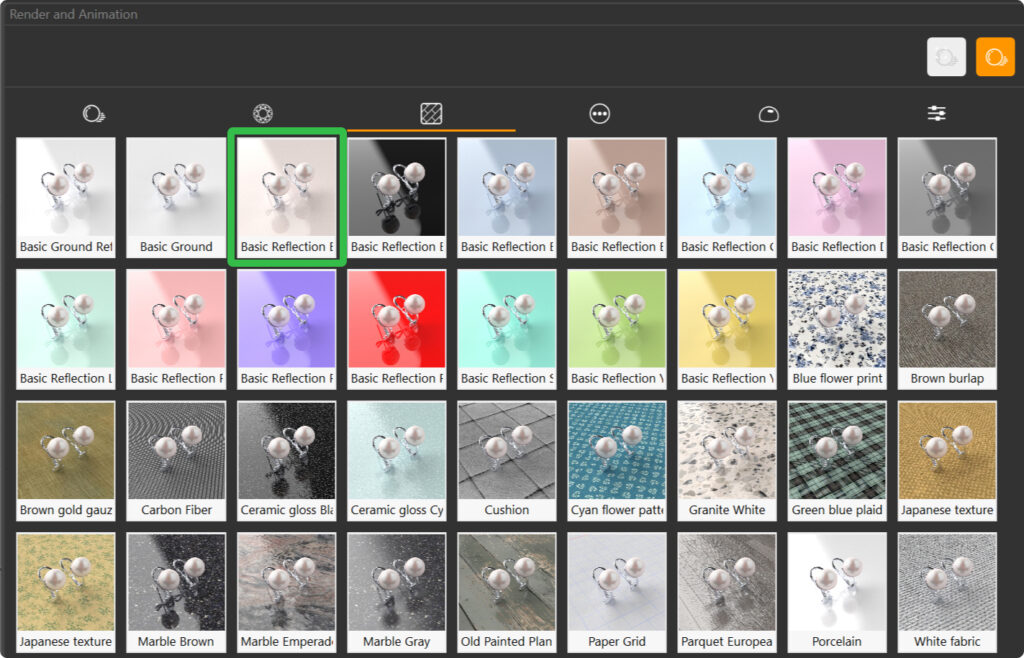

For the ground, apply a basic reflection.

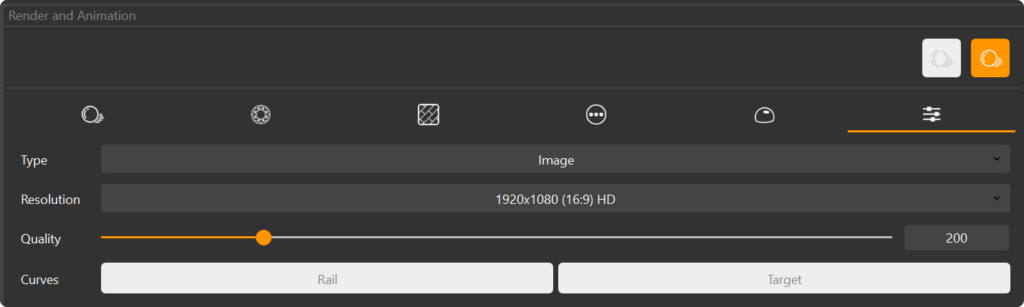

Set Rendering Parameters
In the Parameters tab, you can customize various rendering settings.
Set the resolution to 1920×1080 for a high-quality output.
Leave the Quality setting at 200, which is the default setting.

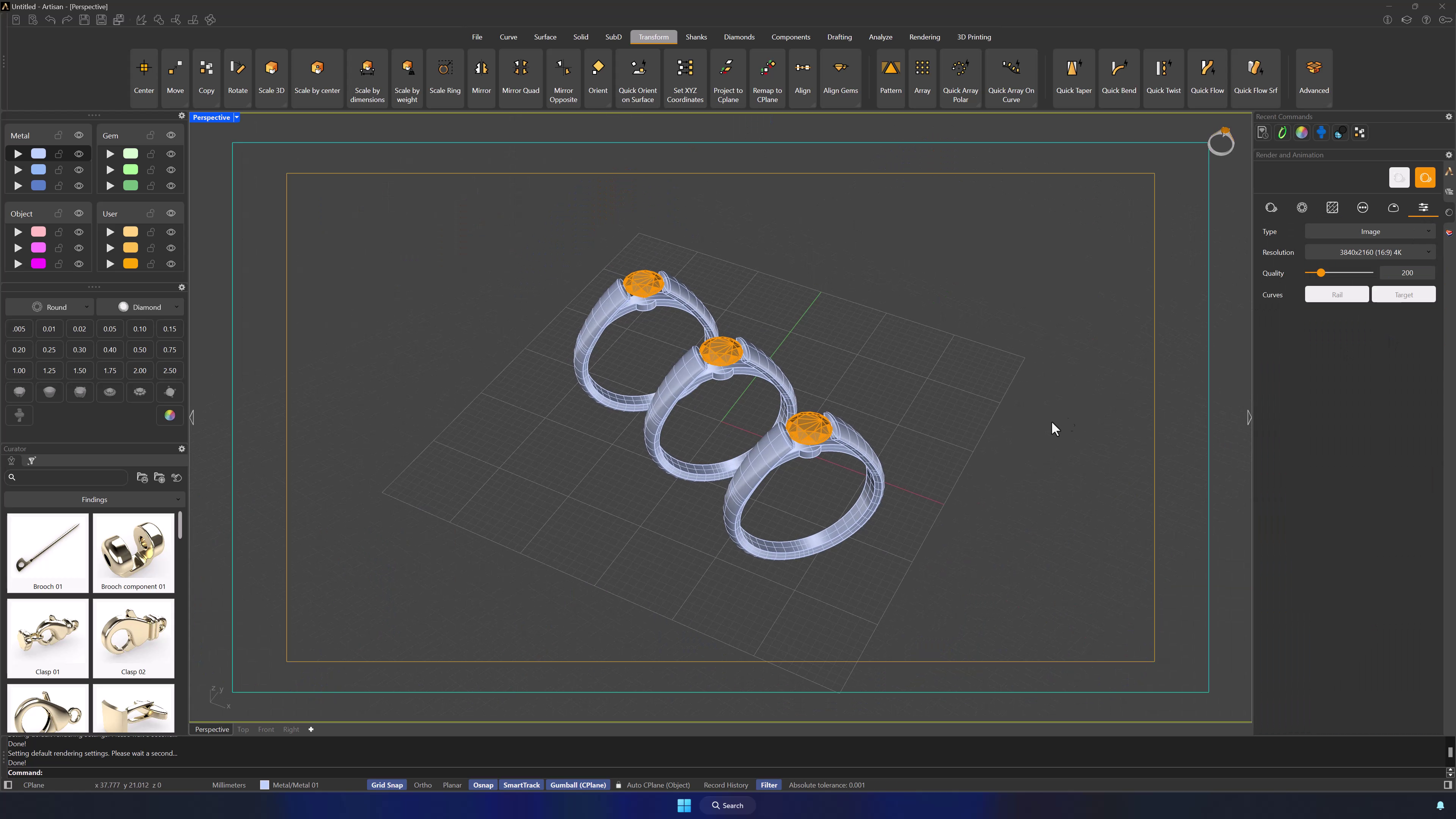

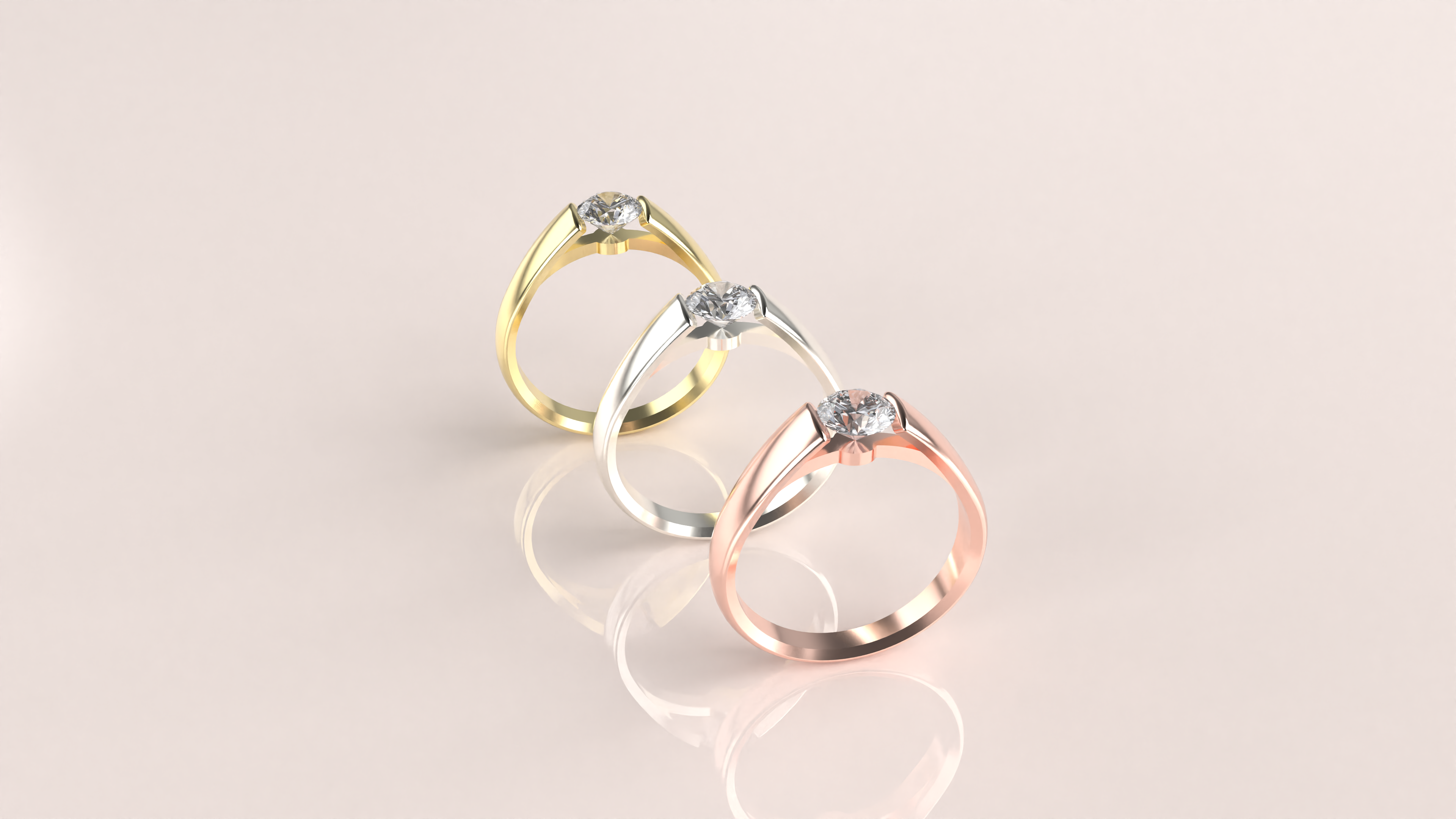

Render the Model
Ensure that your model is properly positioned within the safe frames.
Safe frames indicate the visible area of the render; anything outside these frames will not be included in the final image. Adjust the model’s position so that all important elements are within the safe frames.
Video Lesson
