Commands

When you activate a RhinoArtisan command, the Artisan Panel will automatically open, displaying the command panel for the selected tool. Here, you’ll find all the options you need for making selections (such as curves, surfaces, or objects) and for setting the parameters of the element you’re working on. For commands that require a curve, such as construction sections for building an element, you can either select a different curve from the assets collection or edit the currently selected one.

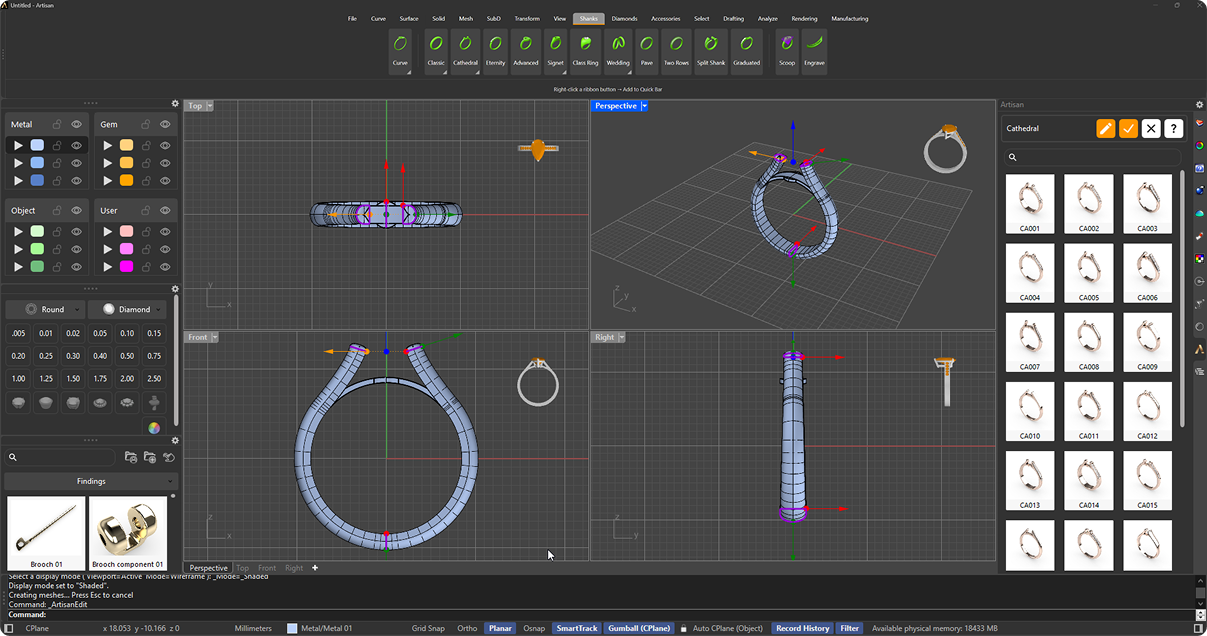

Upon activating a command—whether you’re creating a Shank, a Gemset, or a Component—the Artisan panel will present a comprehensive gallery of that specific type of element. Simultaneously, the default version of the element will appear in the viewport.

At this stage, you have three options:

• Accept the Default Element: If the default element meets your needs, simply click the checkmark icon above the gallery to confirm your choice.

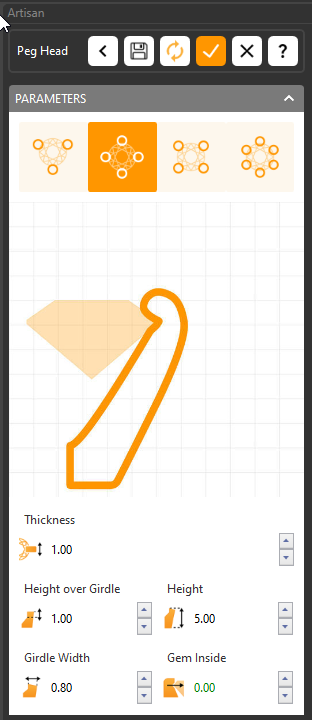

• Edit the Default Element: If you wish to customize the default element, click the pen-shaped icon to modify it and create a new design.

• Select from the Collection: To choose a different element from the collection, double-click on the image of your preferred option to proceed with it.

After you complete the editing and click the checkmark icon, the newly created element will be added to the Outliner panel, where it will be listed alongside the other elements you’ve created.

You can easily save your new element to the gallery by editing the element and clicking the save icon. Simply give it a name, and it will be added to the gallery, ready for future use.

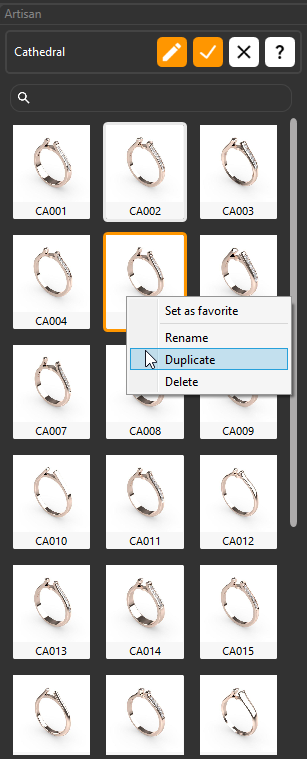

Additionally, if you right-click on any image in the galleries, a management menu will appear, allowing you to set your preferred elements as favorites, rename, duplicate, or delete any elements you no longer need.
