Objective: Learn how to draw a precise curve socket where the gemstone will be placed.
In this lesson, we’ll create the socket using a rounded rectangle.
Top View

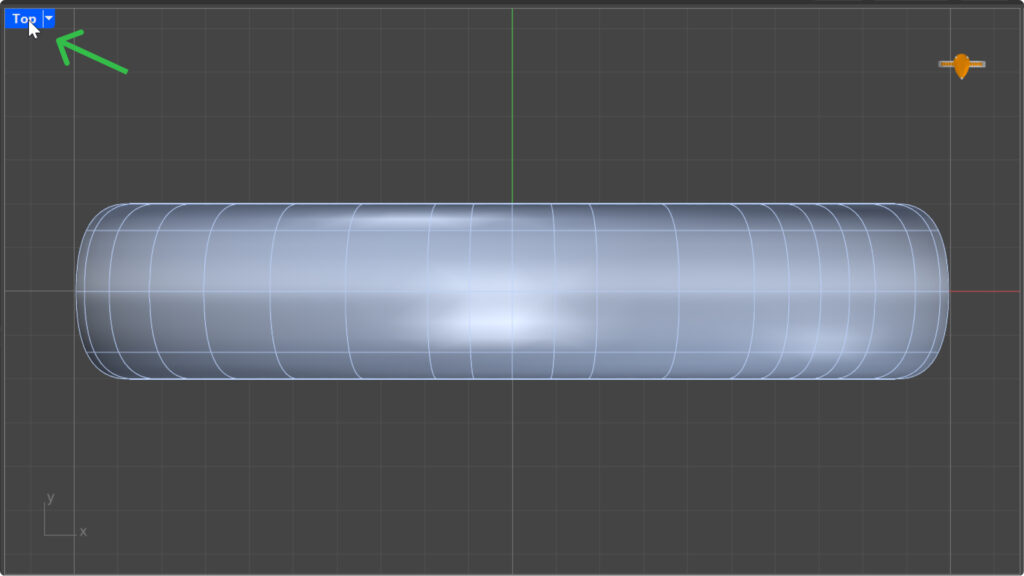

Switch to the “Top” view for better precision. Double click
Set the Layer Color

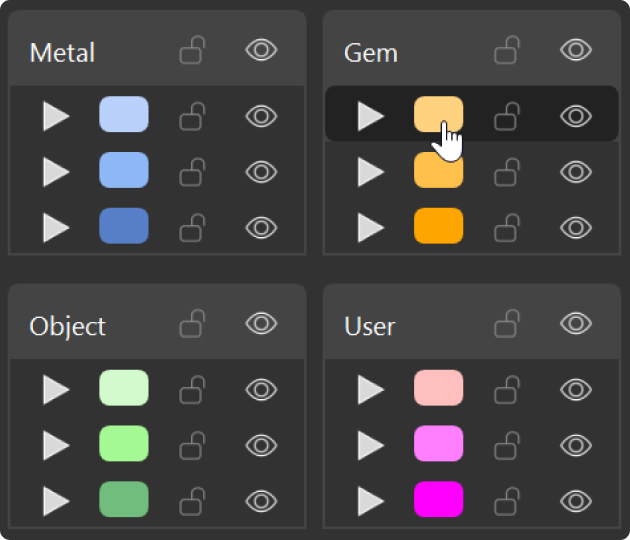

Select a color from the left panel to visualize the curve.
Rounded Curve Command

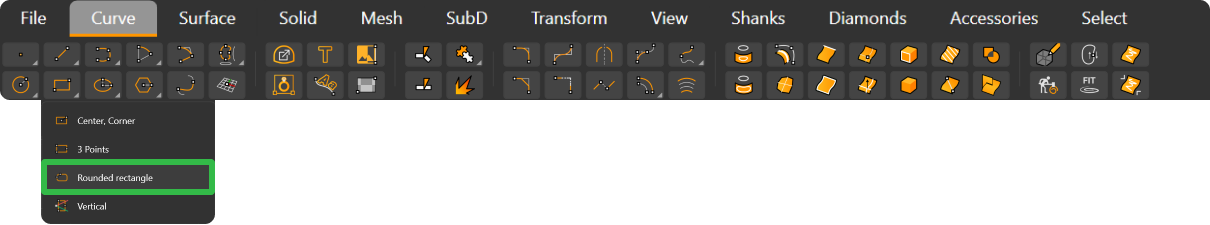

Go to the “Curve” tab, select “Rounded Rectangle” in the “Rectangle” section.
Command Prompt Options

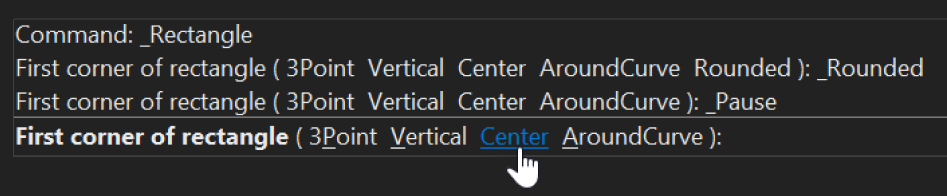

In the “Command Prompt” options, choose “Center”.
Parameters

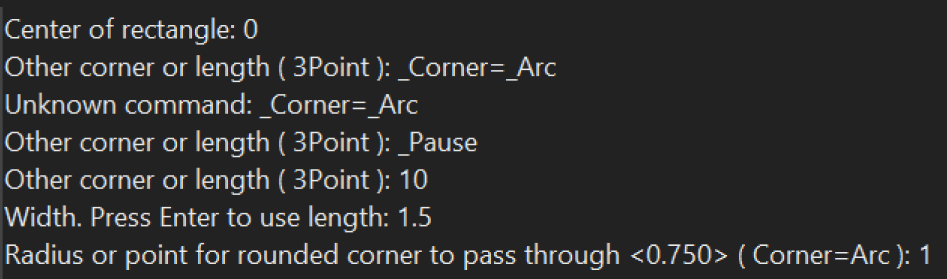

- Enter
0as the center point. Press Enter. - Type
10 mmfor length. Press Enter. - Type
1.5 mmfor width. Press Enter. - Set the rounded corners to
1 mm. Press Enter.

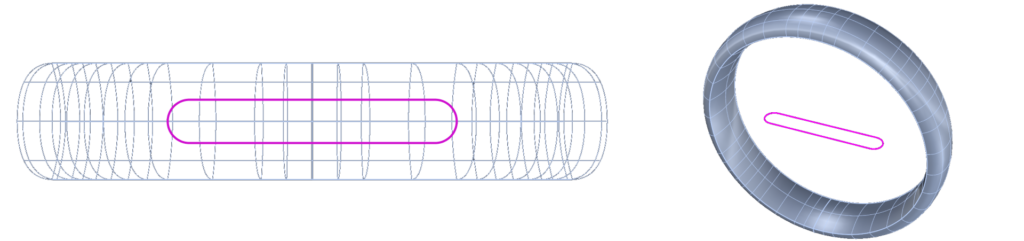

The curve socket is now ready. Change to Wireframe mode to view the curve.
Video Lesson
Next Step
Next, we’ll create a solid from this curve.
