Pose: Pair and Lying on the ground

Objective: Position the model and create a matching pair of earrings.

Position the Model on the Plane

Begin by going to the Rendering tab in the toolbar. locate and click on the Lying on the Ground command.

This tool allows you to position elements on the selected axis and automatically calculates the necessary balance to position the element with the perfect inclination.

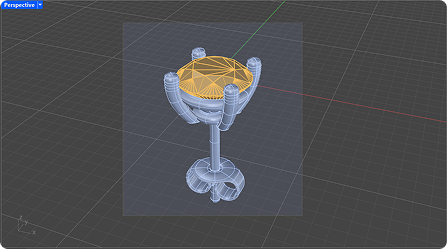

Click on the command and select all the elements of your earring model.

In the command bar, ensure that the plane on which you want to position the earring is correctly selected.

Once the plane is confirmed, press Enter.

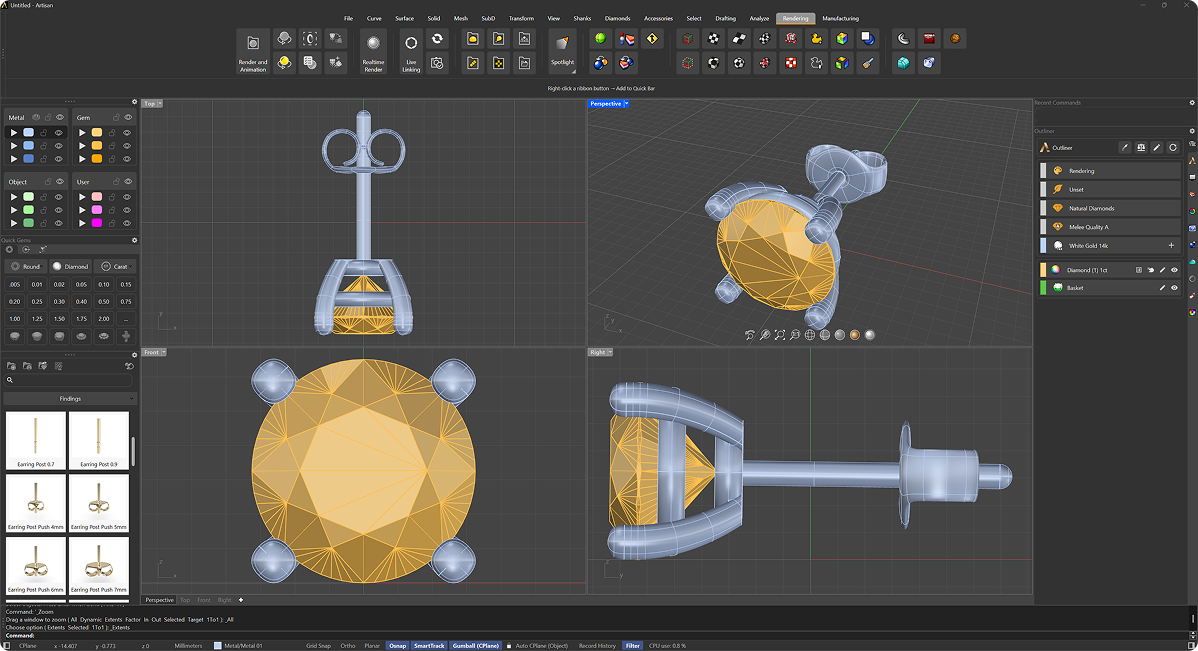

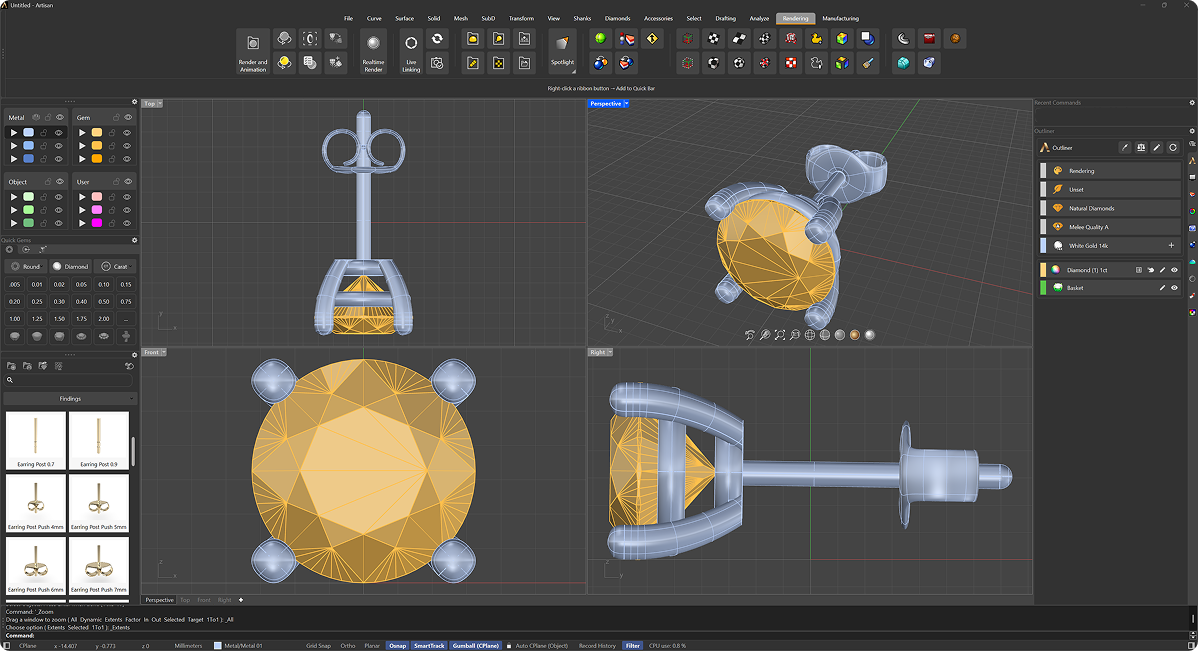

Your model should now be perfectly positioned on the ground.

Create the Earring Pair

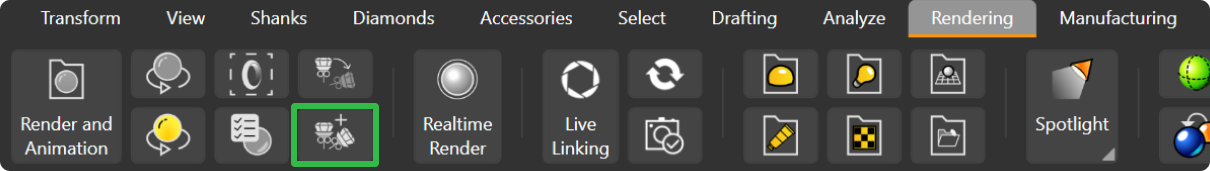

In the Rendering tab, find and click on the Pair command to create a matching earring.

Select all the elements of your earring model, just as you did in the previous step. Press Enter.

In the command bar, set a distance of 15 millimeters between the pair.

For the pair’s angle, type -50 degrees.

Mirror:  No

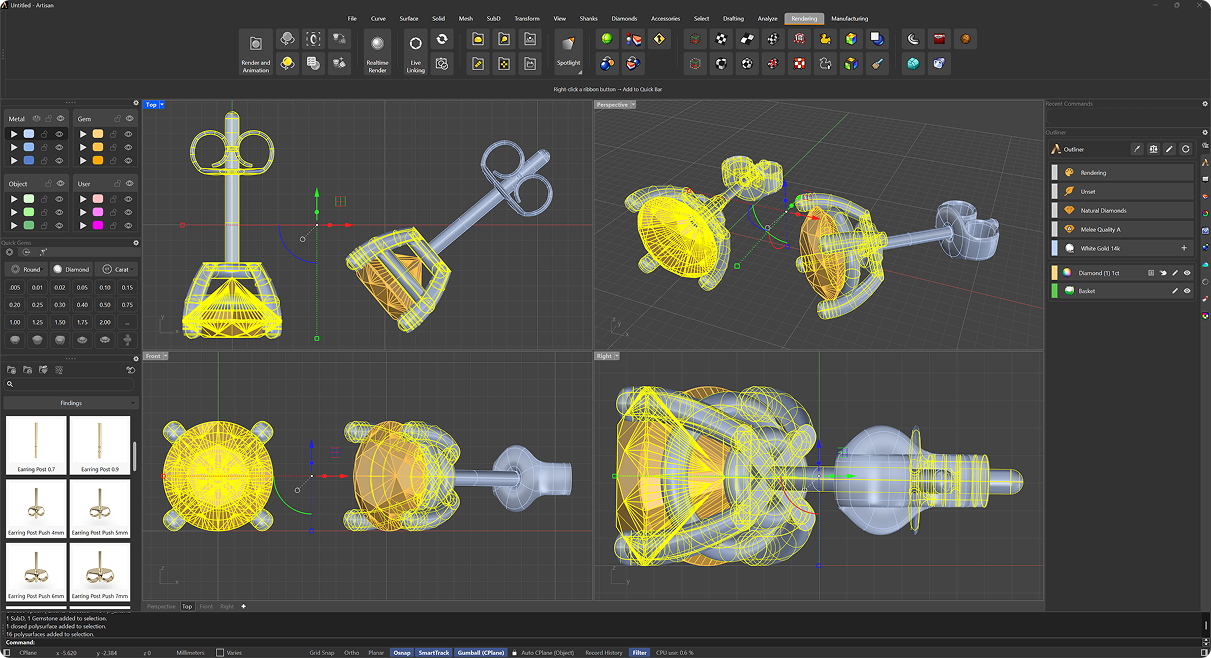

Your model is now perfectly positioned and paired, ready for the next step.

Video Lesson

Next Step

The next will involve applying materials and rendering the final design.
