Pearl and Diamond Earrings
Lesson 41 of 44
Pose elements and add a Pearl
Sign in to access this lesson
This lesson is part of Kickstart: From idea to Creation, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Kickstart: From idea to Creation, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Position each element correctly.
Pose Elements

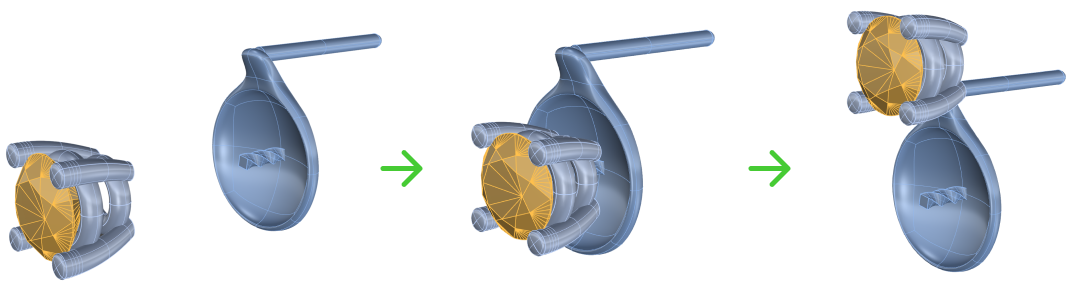

Move the basket and gem 10 millimeters back and 7.736 millimeters up using the gumball.
Pearl Command

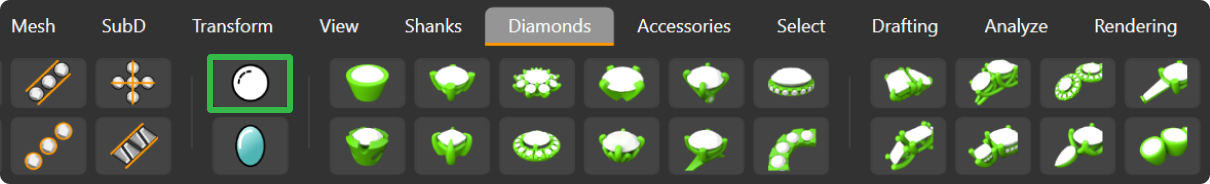

Then, in the Diamonds tab, select the Pearl command.
Parameters

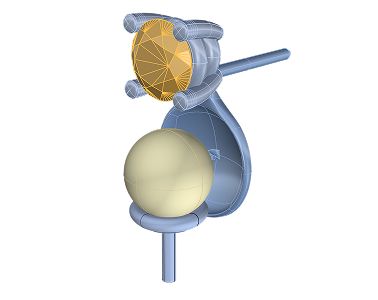

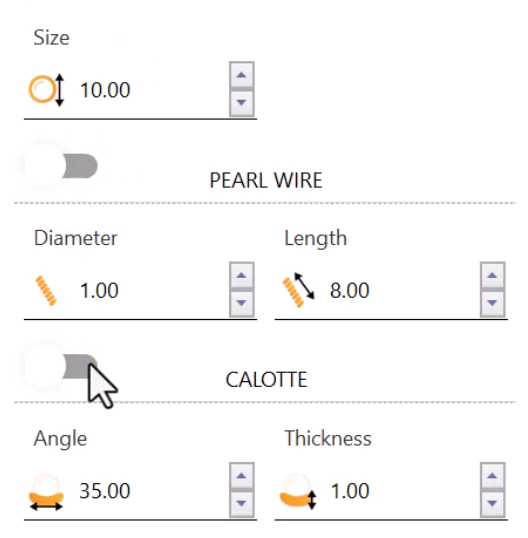

Change the size to 10 millimeters. Deactivate the Wire and the Calot, then accept.
Zoom extents All

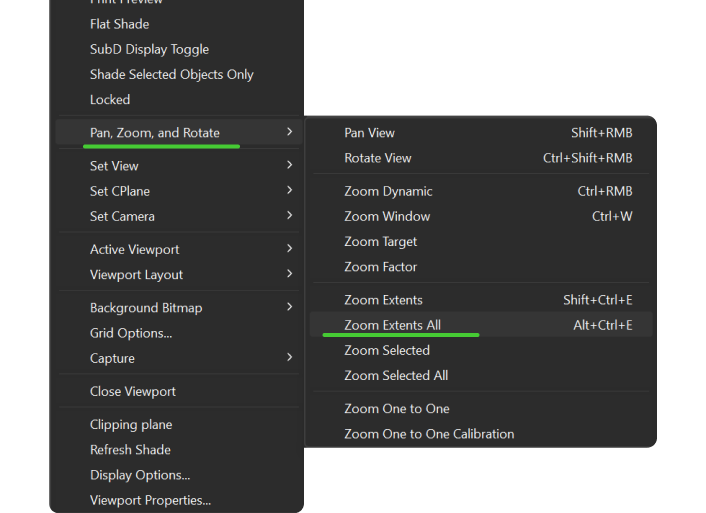

Select in the Perspective view, “Pan, Zoom, and Rotate”, and then “Zoom Extends All” to center the view.
Findings Elements

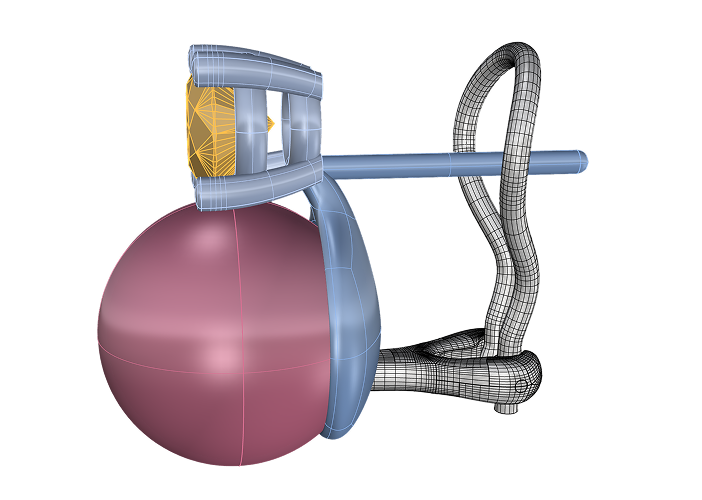

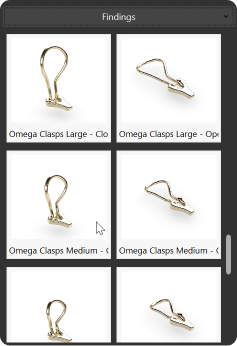

Also, add the clasp system: in the Findings category, select Omega Clasps Medium.
Select the entire piece and move it 4.422 millimeters back and 1.848 millimeters down using the gumball.
Our earring is complete!
