Objective: Learn how to create and modify the shank for your floating ring design.
Shank Command

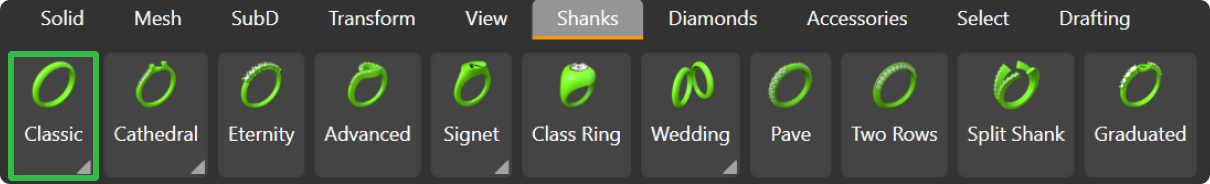

Go to the “Shanks” tab and select the “Classic” command.

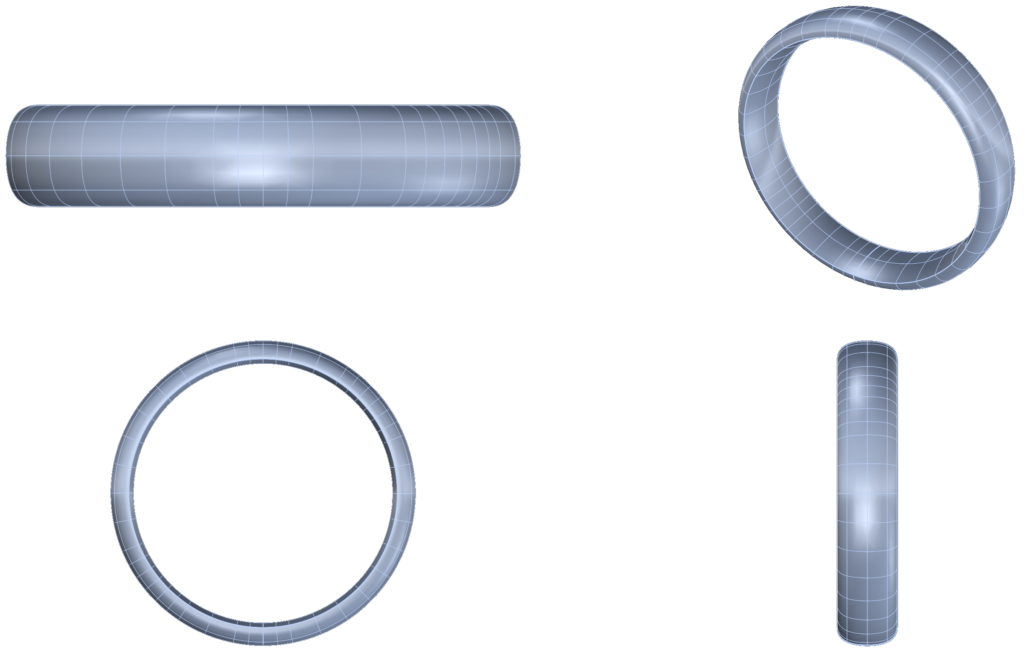

Classic Library

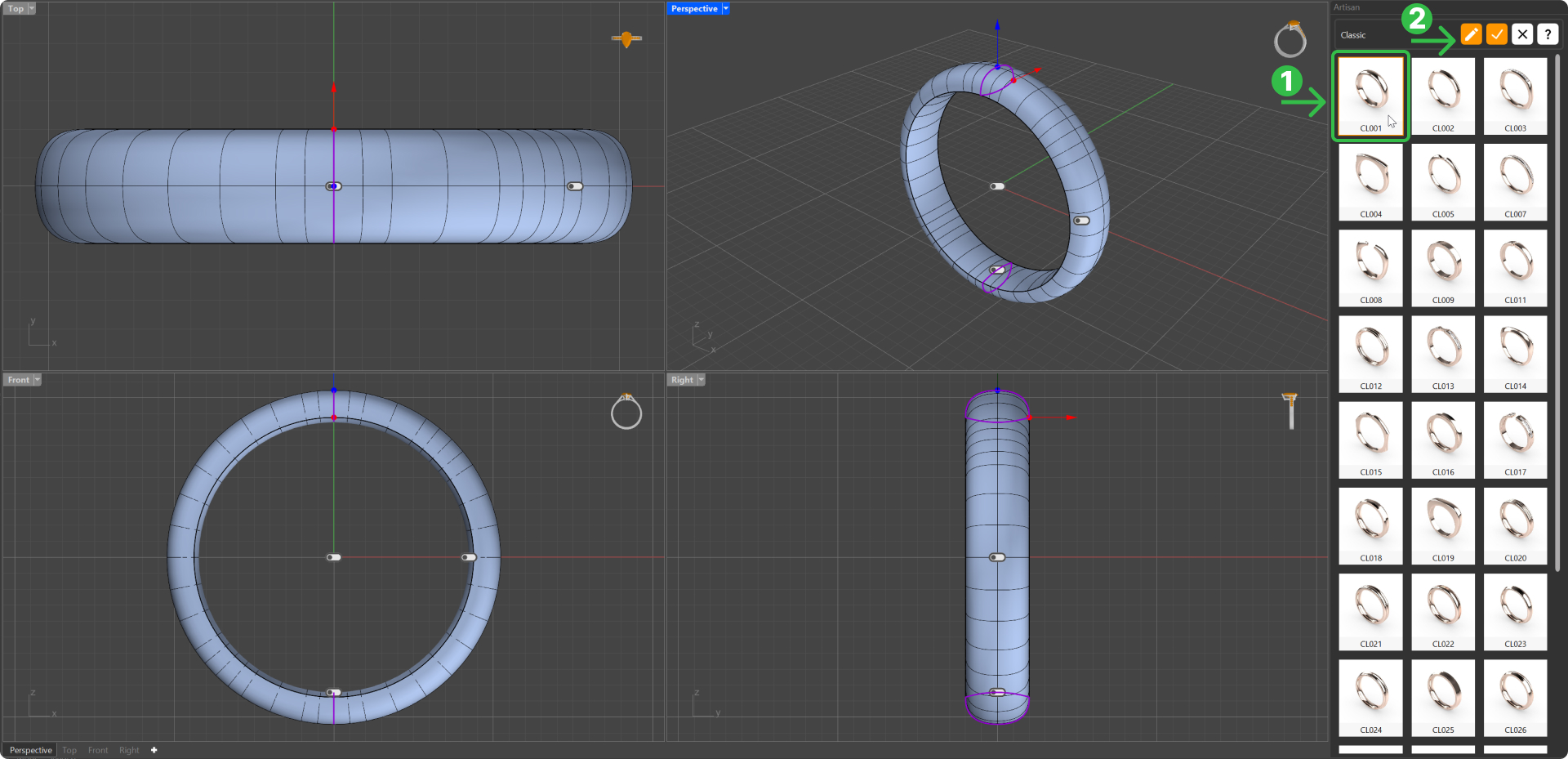

From the RhinoArtisan library, choose the model “CL001” (1), then click on Edit (2).

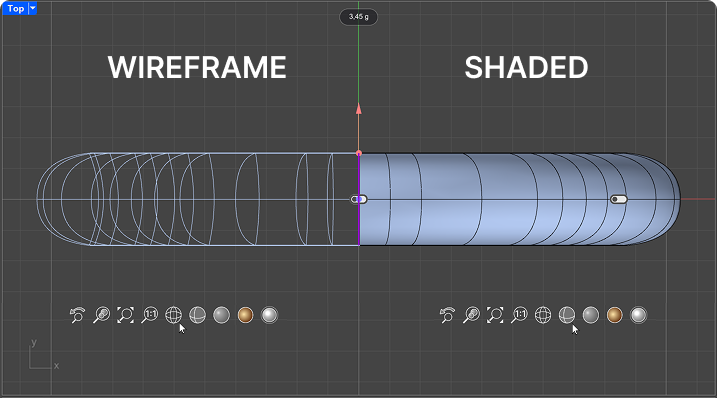

TIP: Use the shaded mode for better visualization of the model. Change it in the right corner of each viewport. Wireframe - Shaded
Shank Parameters

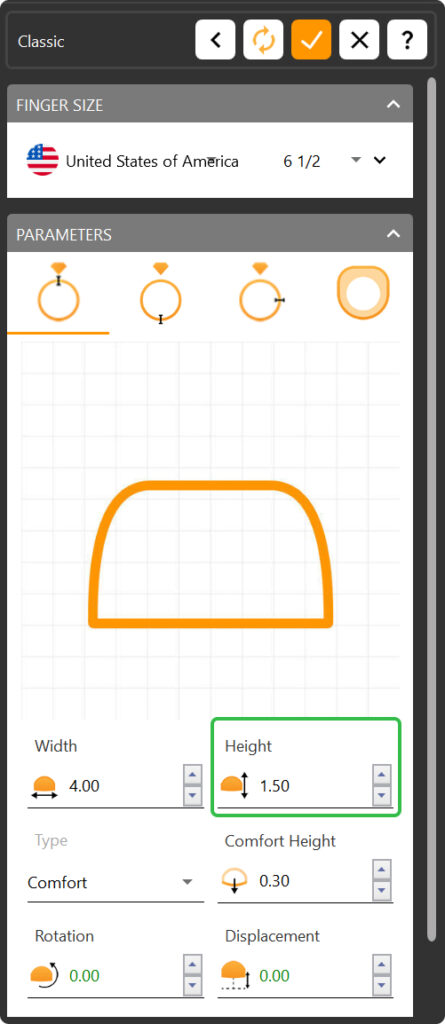

Adjust the parameters of the model by changing the Height to 1.5 millimeters.
Accept
Click “Accept” to finalize the shank design.
Video Lesson
Next Step
In the next lesson, we will create the curve socket for our gemstone.
