Objective: Design a secure basket setting for the Cushion cut gem.

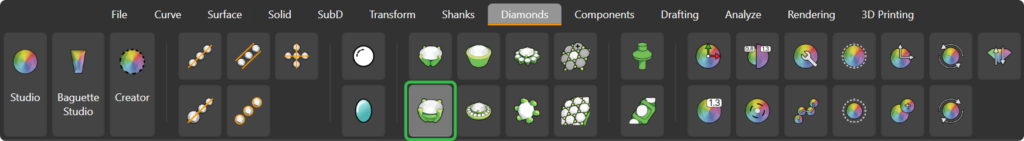

Step 1: Select the gem, then go to the “Diamonds” tab and choose the “Basket” command.

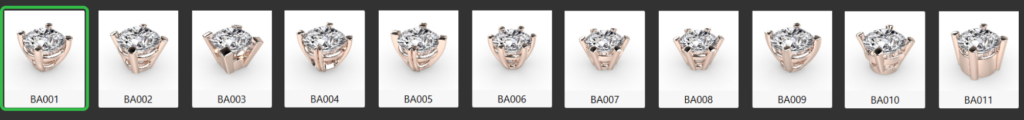

Step 2: Select model BA001 for the basket setting and press “Edit.”

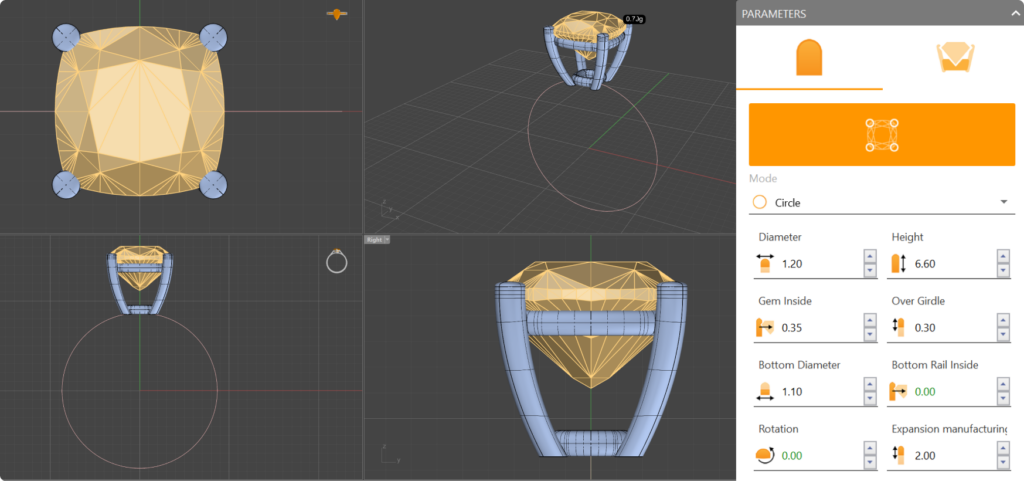

Step 3: Adjust the following parameters
- Mode: Circle
- Diameter: 1.2 millimeters
- Height: 6.6 millimeters
- Gem inside: 0.35 millimeters
- Over Girdle: 0.30 millimeters
- Bottom Diameter: 1.1 millimeters

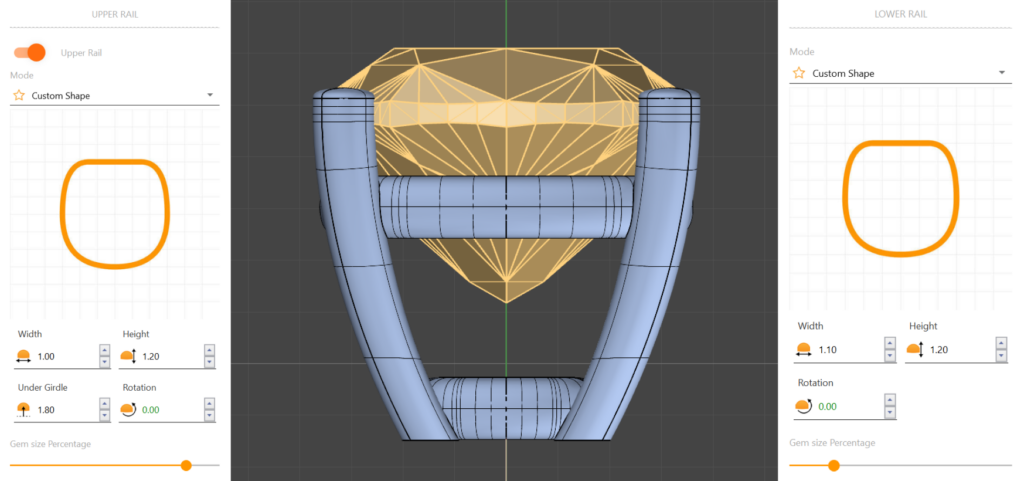

Step 4: In the “Rails” tab, adjust:
- Upper rail height: 1.20 millimeters
- Under Girdle: 1.8 millimeters
- Lower rail width: 1.1 millimeters
- Lower rail height: 1.2 millimeters
Video Lesson
Next Step
Begin designing the cathedral shank.
