Solitaire Ring Collection: First Ring
Lesson 26 of 49
Create Fittings for Casting
Sign in to access this lesson
This lesson is part of Crafting Engagement Masterpieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Crafting Engagement Masterpieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Use Boolean Difference to create perfect fittings for the basket and shank.

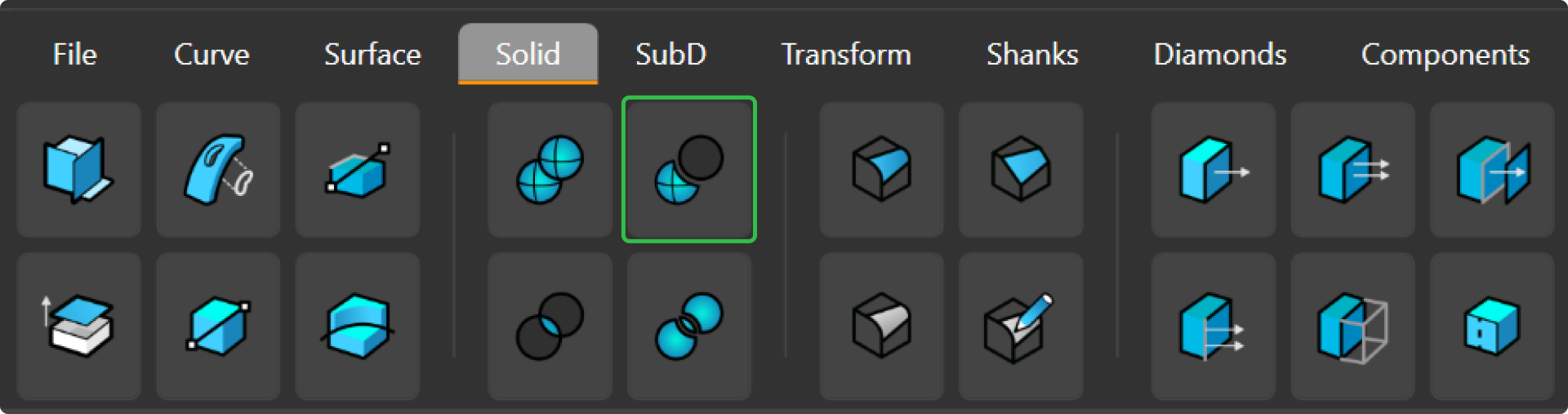

Step 1: In the Solid tab, select the Boolean Difference command.
- Choose the shank and press enter.
- In the command bar, set DeleteCutters to No to keep the basket for use as the cutter.
- Select the basket and press enter.
Step 2: Use the Hide command to hide the basket and gem. This will let you appreciate the result of the Boolean Difference.

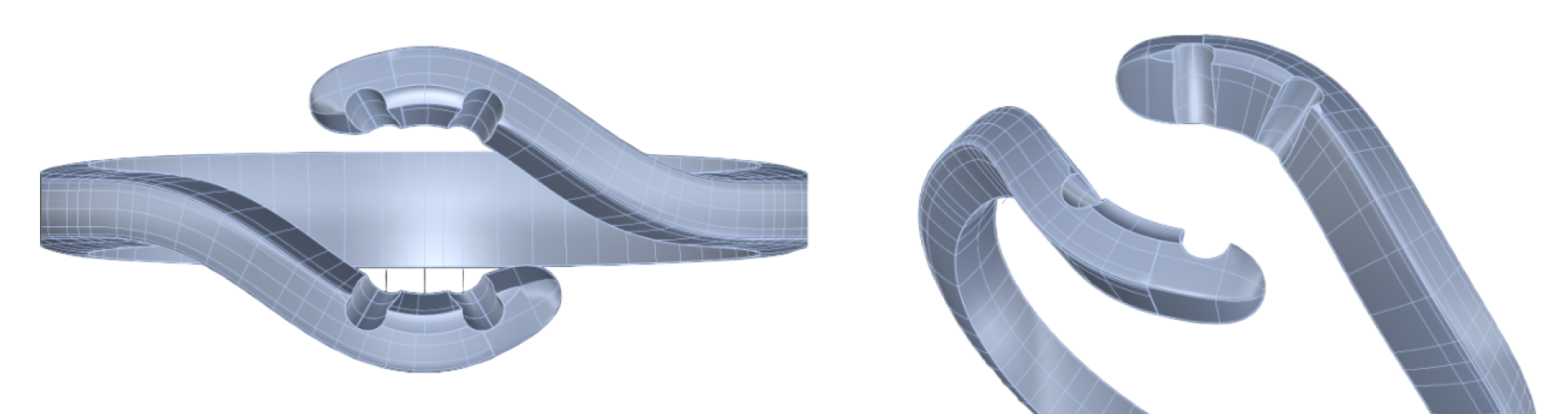

You’ll see that 4 perfect fittings have been created using 4 of the 6 prongs.
Type Show in the command bar to display the elements again.
Video Lesson
Next Step
Prepare the model for rendering.
