Halo Ring with Cathedral Shank
Lesson 5 of 49
Prong Settings
Sign in to access this lesson
This lesson is part of Crafting Engagement Masterpieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Crafting Engagement Masterpieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

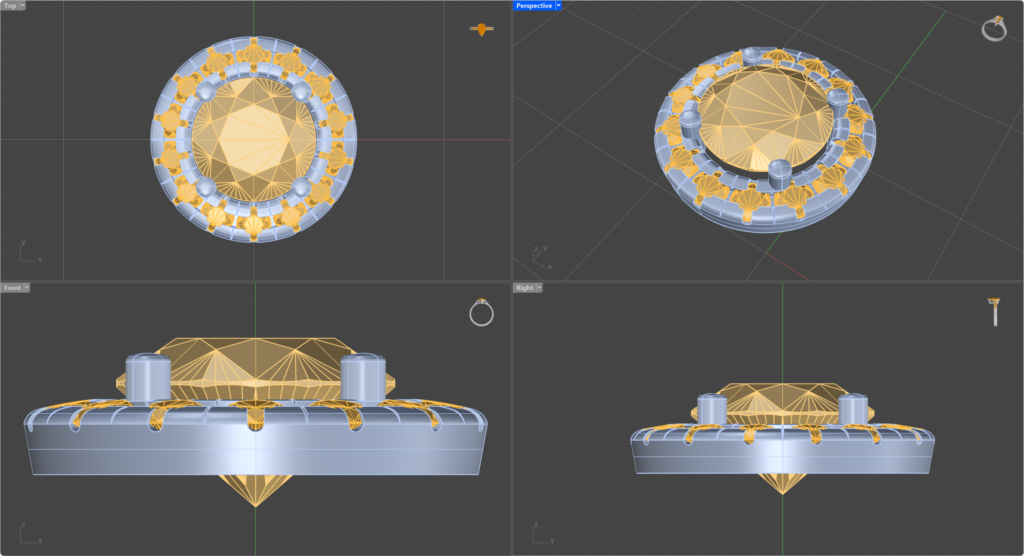

Objective: Customize the prongs for the halo gems.
Step 1: In the “Prong Settings” tab, activate the third option (scalloped) and the “Boolean” option. Adjust the cutter parameters:
- Start width: 1.4 millimeters.
- End width: 0.4 millimeters.
- Mode: Independently.

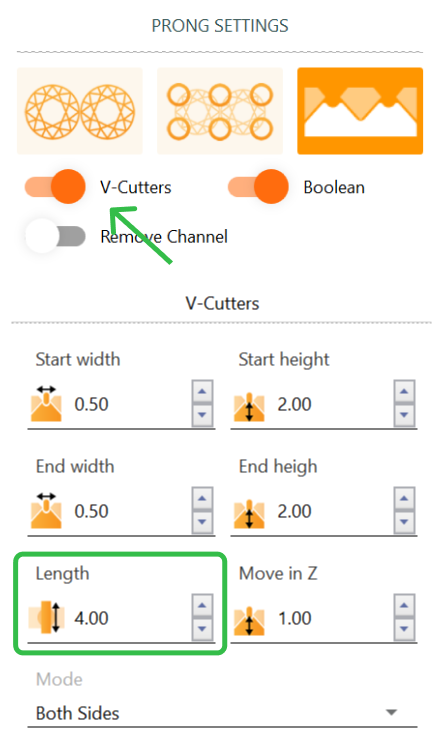

Step 2: In the V-Cuters section, adjust the length to 4 millimeters and activate the “V-Cuters ” option.

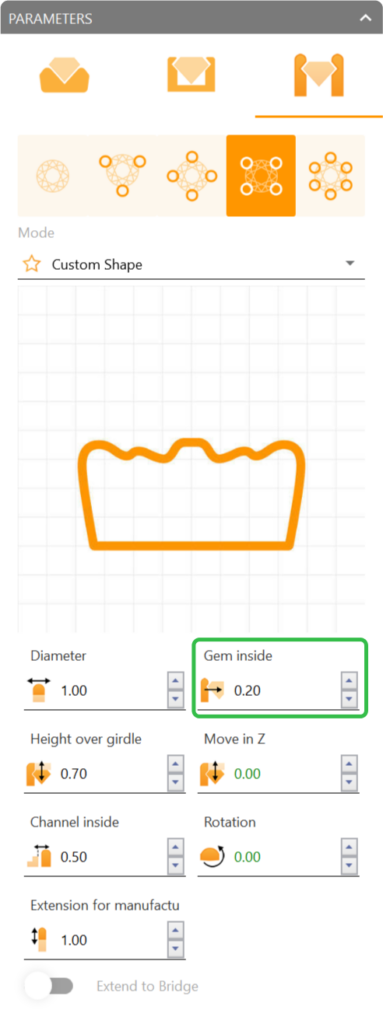

Step 3: Go to the “Prongs” tab and select the 4th option. Set the gem inside to 0.2 millimeters.
Video Lesson
Next Step
Begin constructing the cathedral shank.
