Objective: Design the shank that holds the peg head setting.

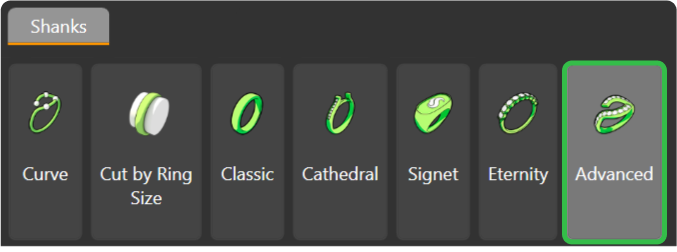

Step 1: Go to the Shanks tab and use the Advanced command.

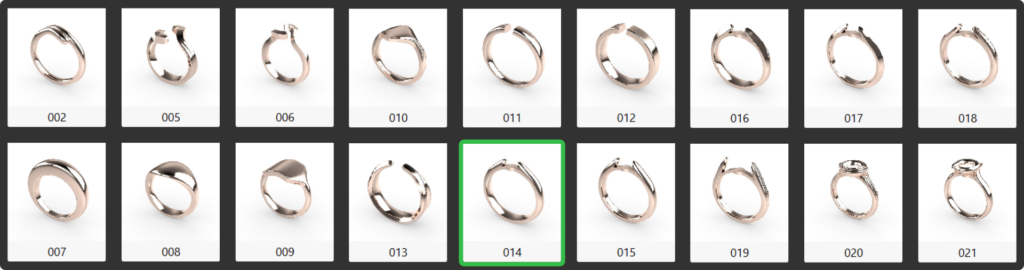

Step 2: Select element 014, click on edit.

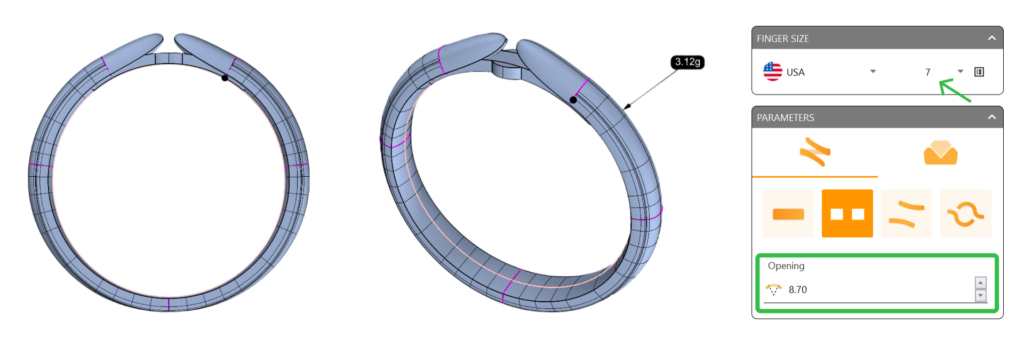

Step 3: Ensure the size matches the reference curve by selecting “United States of America” and setting the size to 7. Change the Opening to 8.70 millimeters.
Video Lesson
Next Step
Modify the profiles of the shank for added comfort and aesthetics.
