Solitaire Collection: Third Ring
Lesson 42 of 49
Helix Profiles
Sign in to access this lesson
This lesson is part of Crafting Engagement Masterpieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Crafting Engagement Masterpieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Create two profiles at each end of the helix for the sweep.
Step 1: Create the first curve for the sweep:

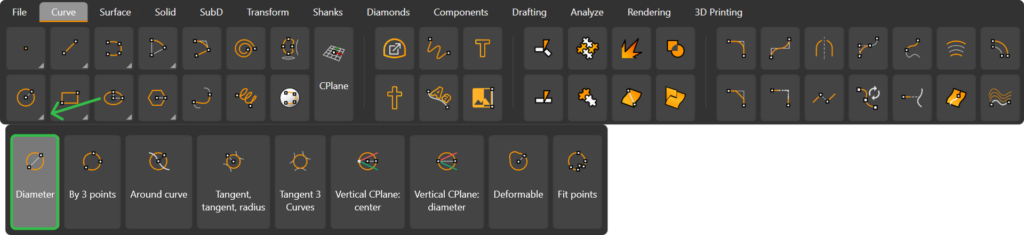

- Under the Circle button, use Diameter command.

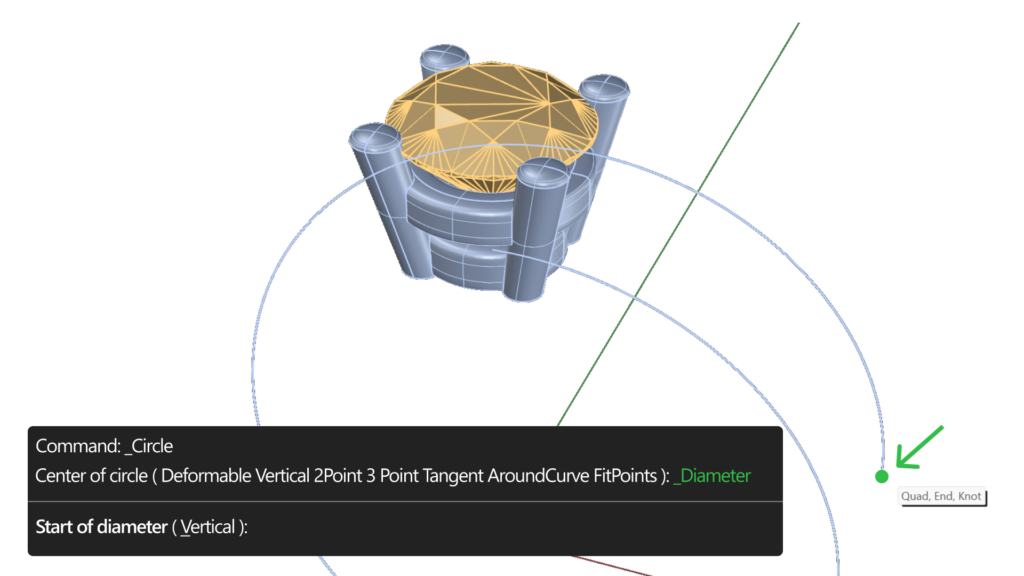

- Set the first point.

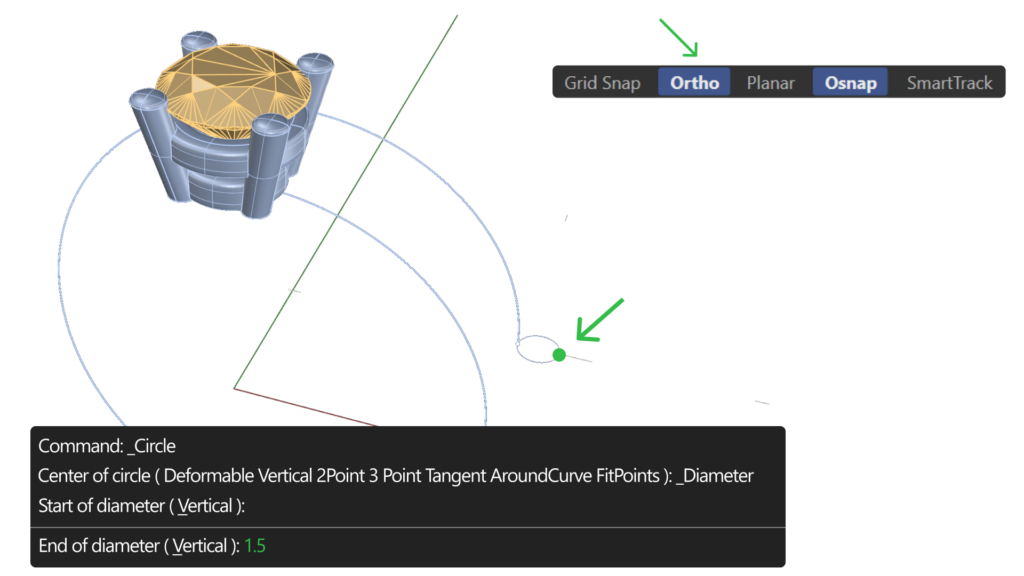

- Activate Ortho mode, set the second point. Type 1.50 millimeters for the outer tip. Use the perspective view.

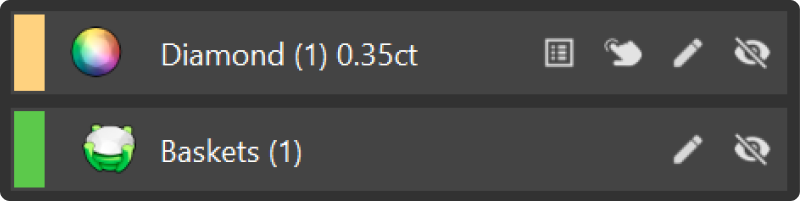

Step 2: Hide the basket and the gem using the Hide command or the outliner for better visibility.

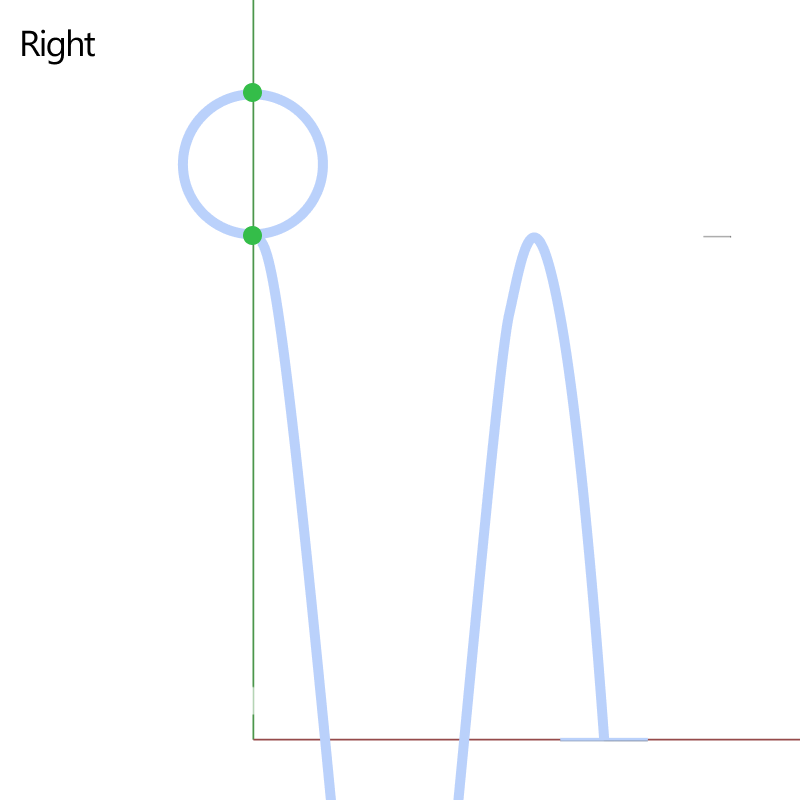

Step 3: Create another Diameter curve, this time set to 2.5 millimeters. From the right view, position the second curve for perfect alignment.

Video Lesson
Next Step
Perform a sweep to create the shank.
