Solitaire Collection: Third Ring
Lesson 43 of 49
Sweep rails
Sign in to access this lesson
This lesson is part of Crafting Engagement Masterpieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Crafting Engagement Masterpieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Perform a sweep to create the shank using the helix and profiles.

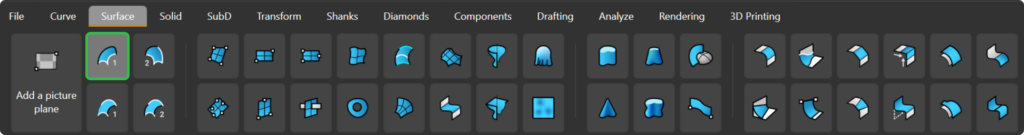

Step 1: With the two profiles created, go to the Surface tab and select the Sweep 1 Rail command.

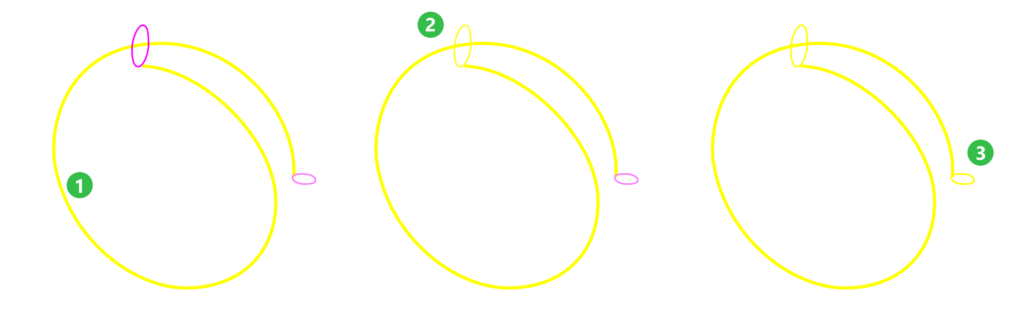

Step 2: Select the helix, then the upper rail, and finally the lower rail.

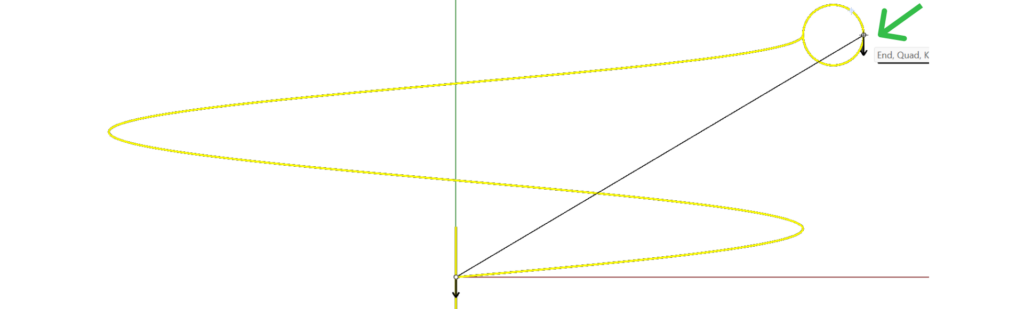

Step 3: Press Enter. Adjust the seam point like in the image, so that both arrows point in the same direction. Do it from the Top View.

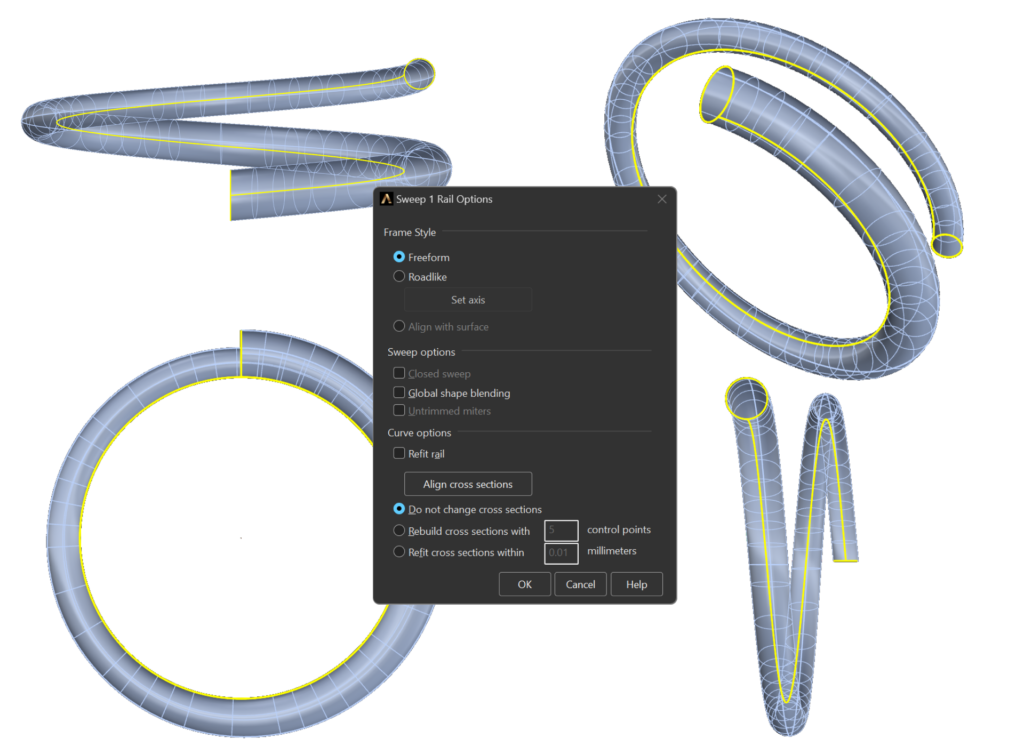

Step 4: Press enter. In the options panel, leave the default values. Press OK.
Video Lesson
Next Step
Create a cap for the outer end of the shank.
