Solitaire Ring Collection: First Ring
Lesson 22 of 49
Reference Curve and Gem
Sign in to access this lesson
This lesson is part of Crafting Engagement Masterpieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Crafting Engagement Masterpieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Start by creating a reference curve for the shank and positioning a 1-carat gem.
Step 1: Go to the “Shanks” tab and select the “Curve” command to create a reference curve.
Step 2: Set the region to United States of America and choose size 7.

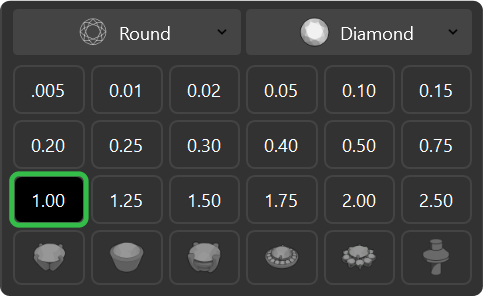

Step 3: In the Quick Gems panel, create a 1-carat gem.

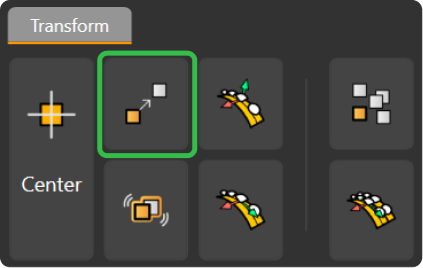

Step 4: Select the gem, then go to the “Transform” tab and use the Move command.
Step 5: Enable the Osnap aids, ensuring that Vertex and Mid are activated.

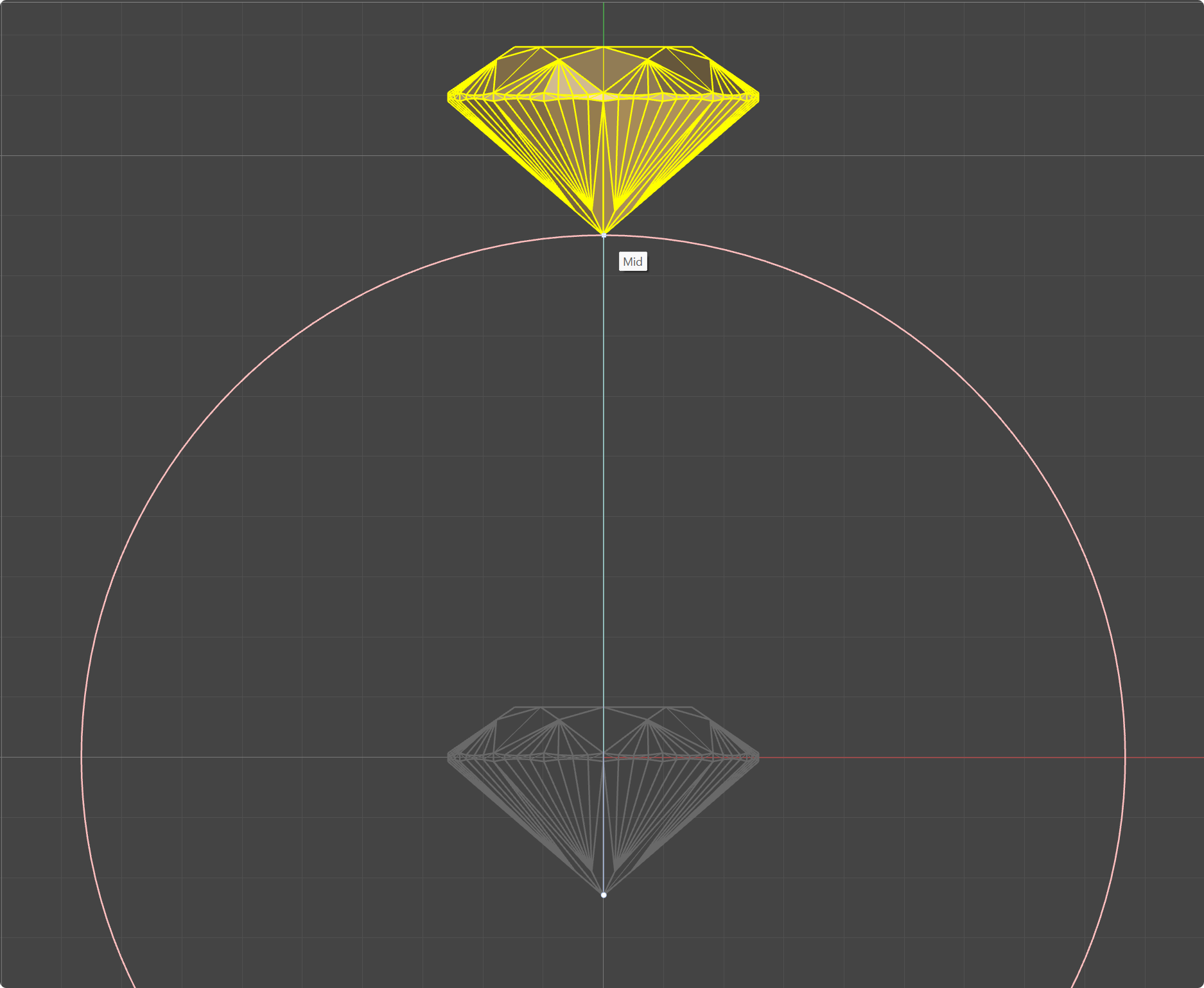

Step 6: Select the bottom point of the gem and move it to the top of the curve.

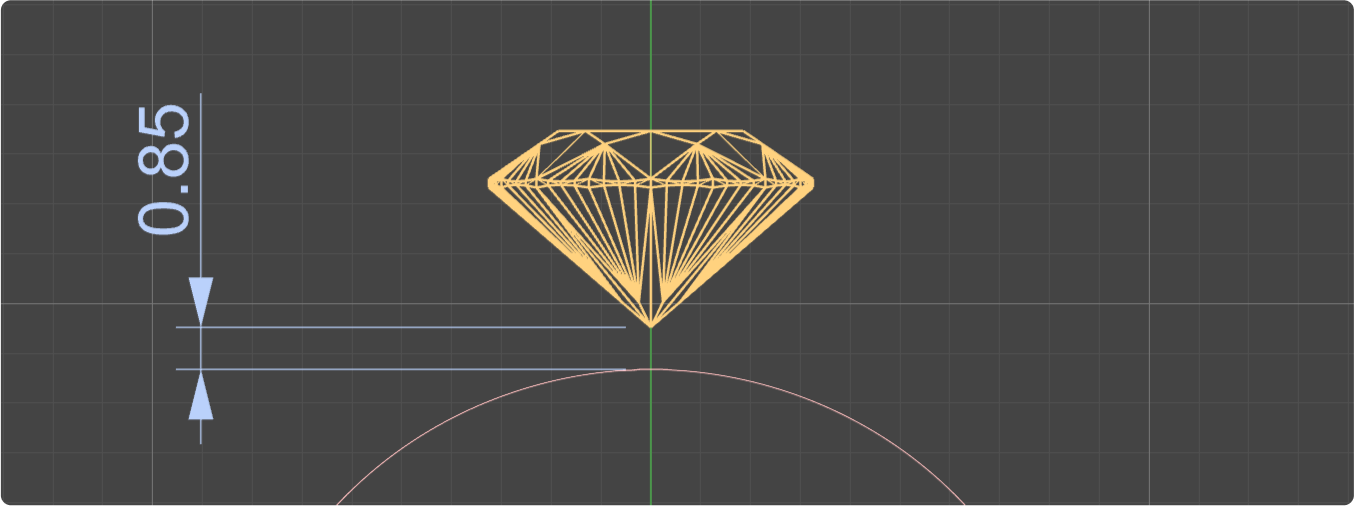

Step 7: Then using the gumball, move the gem up by 0.85 millimeters to position it correctly.
Video Lesson
Next Step
Create the basket setting for the gem.
