Objective: Set up a reference curve and add a 0.35-carat gem to the design.

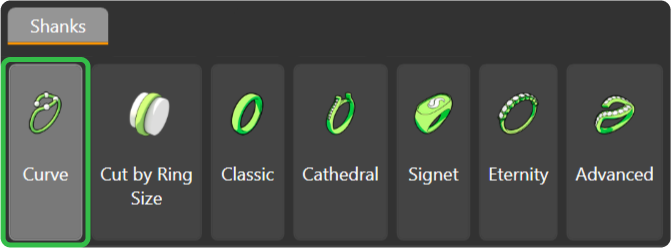

Step 1: In the Shanks tab, create a reference curve.
Step 2: Set the region to “United States of America” and select size 7.

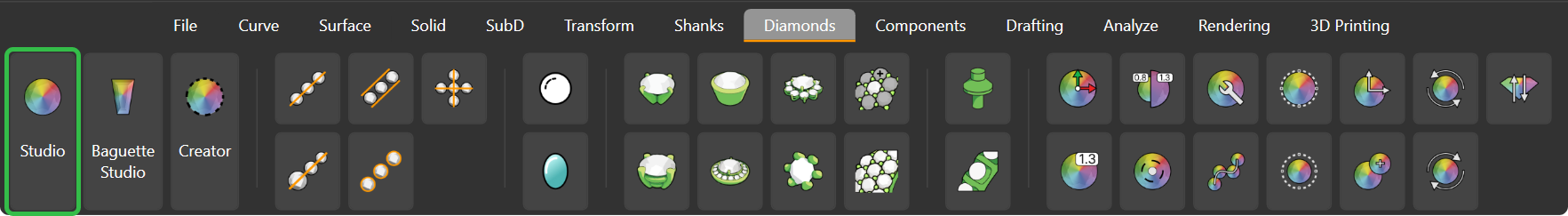

Step 3: Go to the Diamonds tab and use the Gem Studio command.

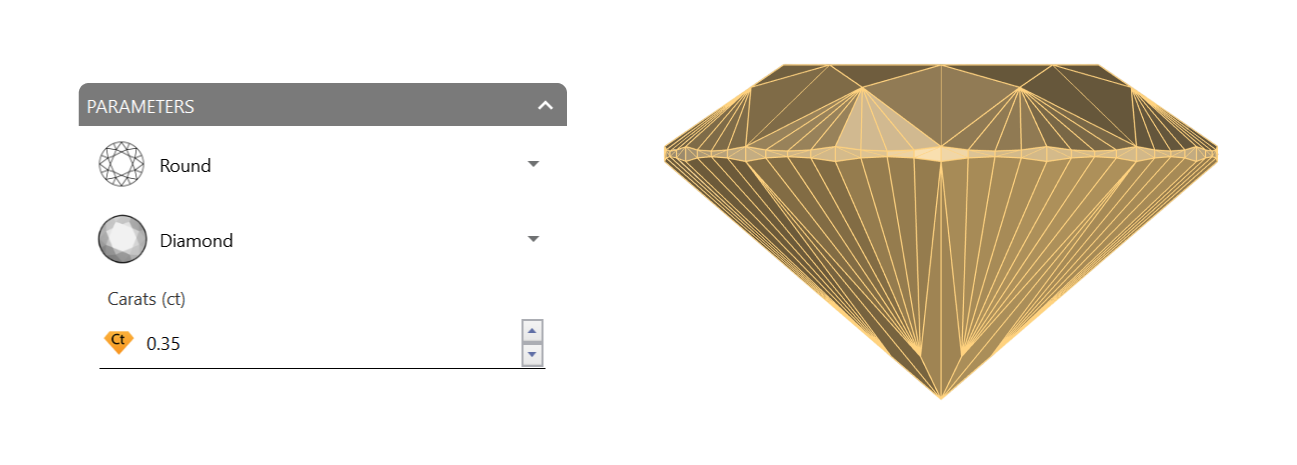

Step 4: Create a 0.35-carat gem.

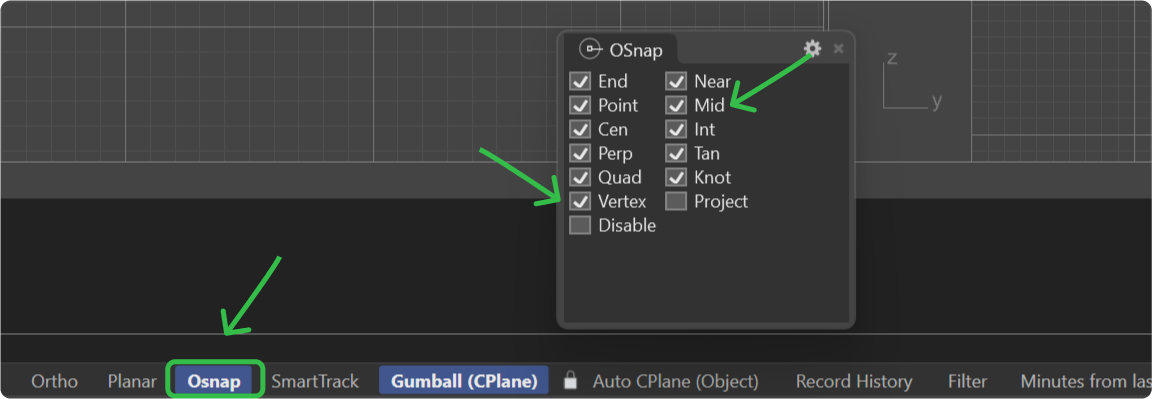

Step 5: With the Osnap aid activated, type Move in the command bar.

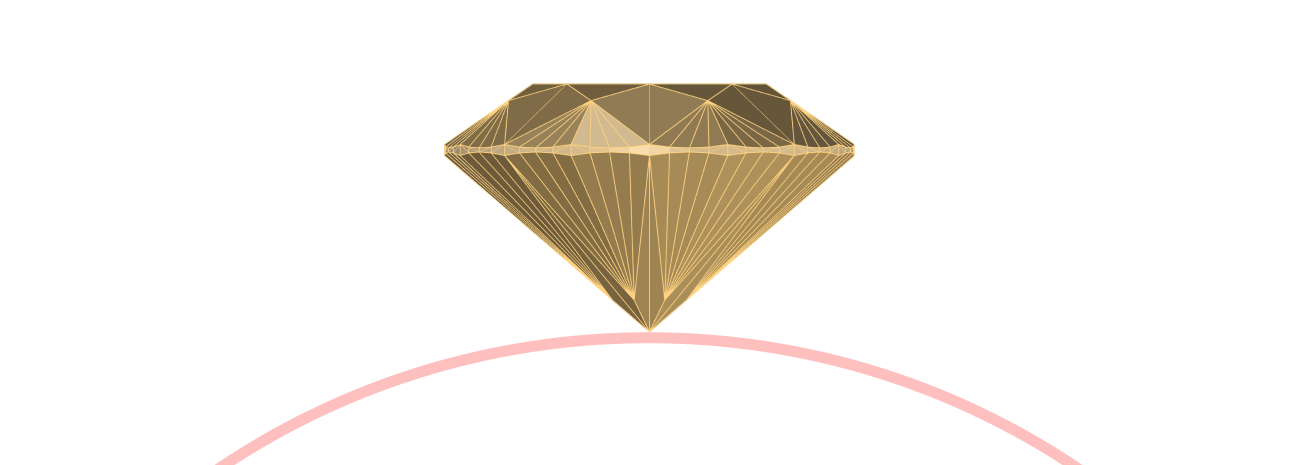

Step 6: Select the bottom vertex of the gem and place it on the top of the reference curve.

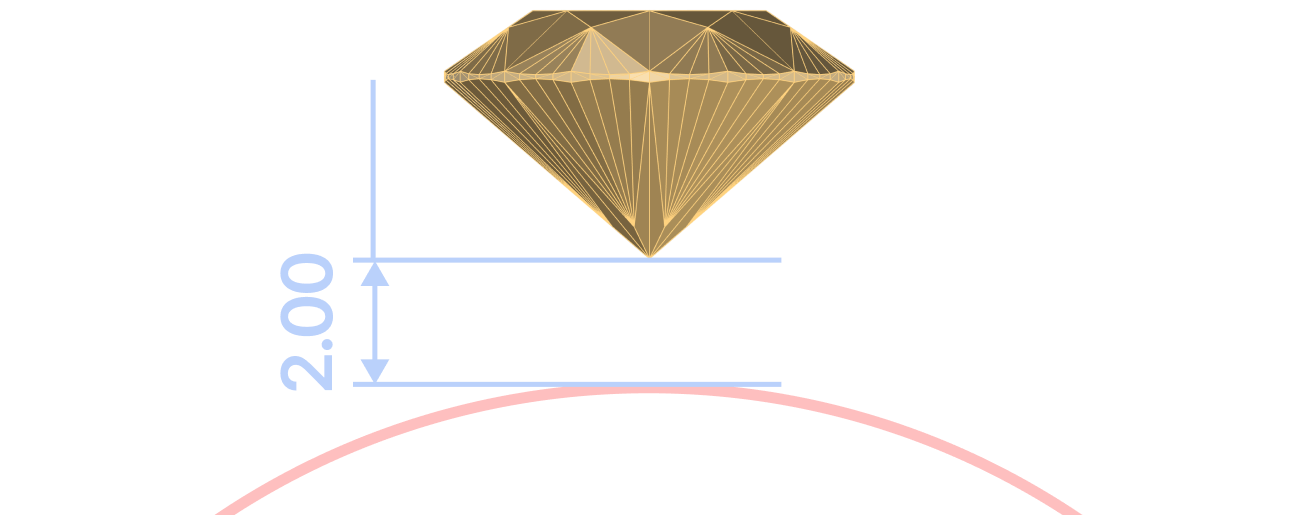

Step 7: Using the gumball, move the gem 2 millimeters upward from the culet.
Video Lesson
Next Step
Add a peg head setting to hold the gem.
