Objective: Add a basket setting to secure the gem.

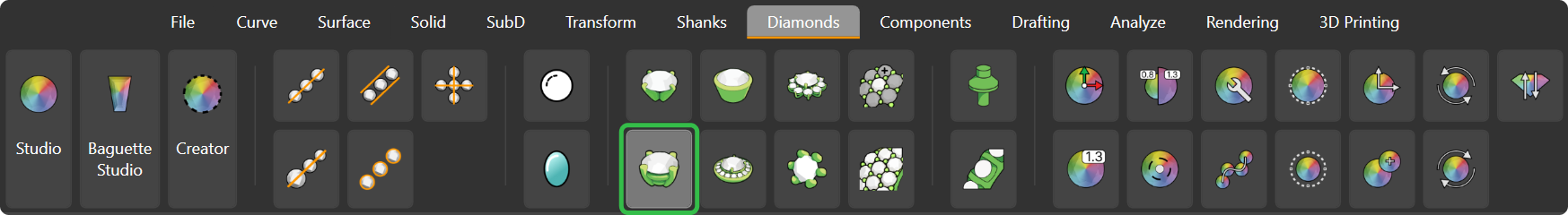

Step 1: In the “Diamonds” tab, select the gem and choose the Basket command.

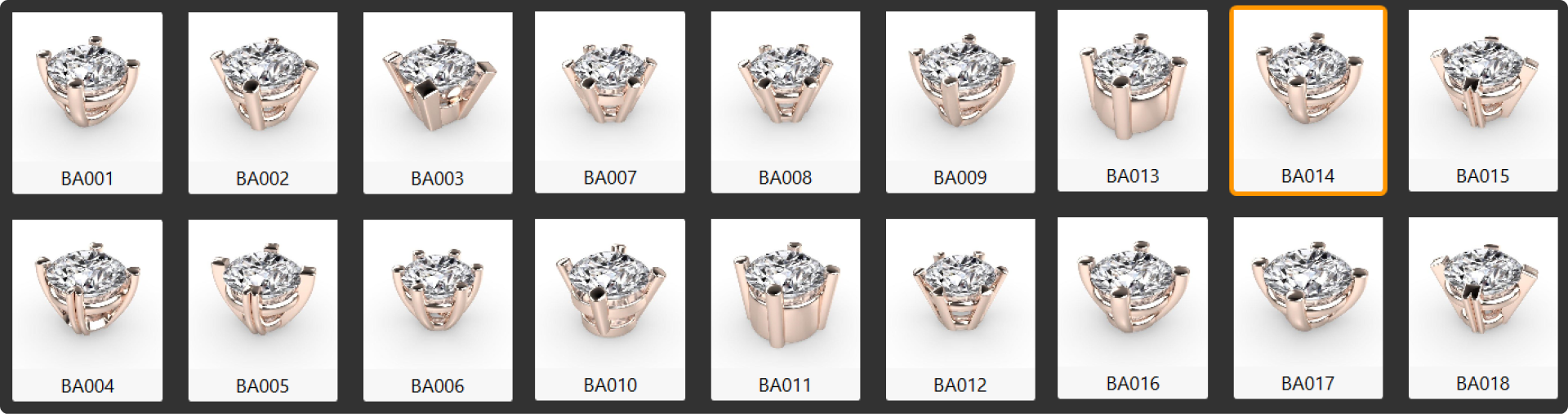

Step 2: Choose the BA014 basket model and press Edit.

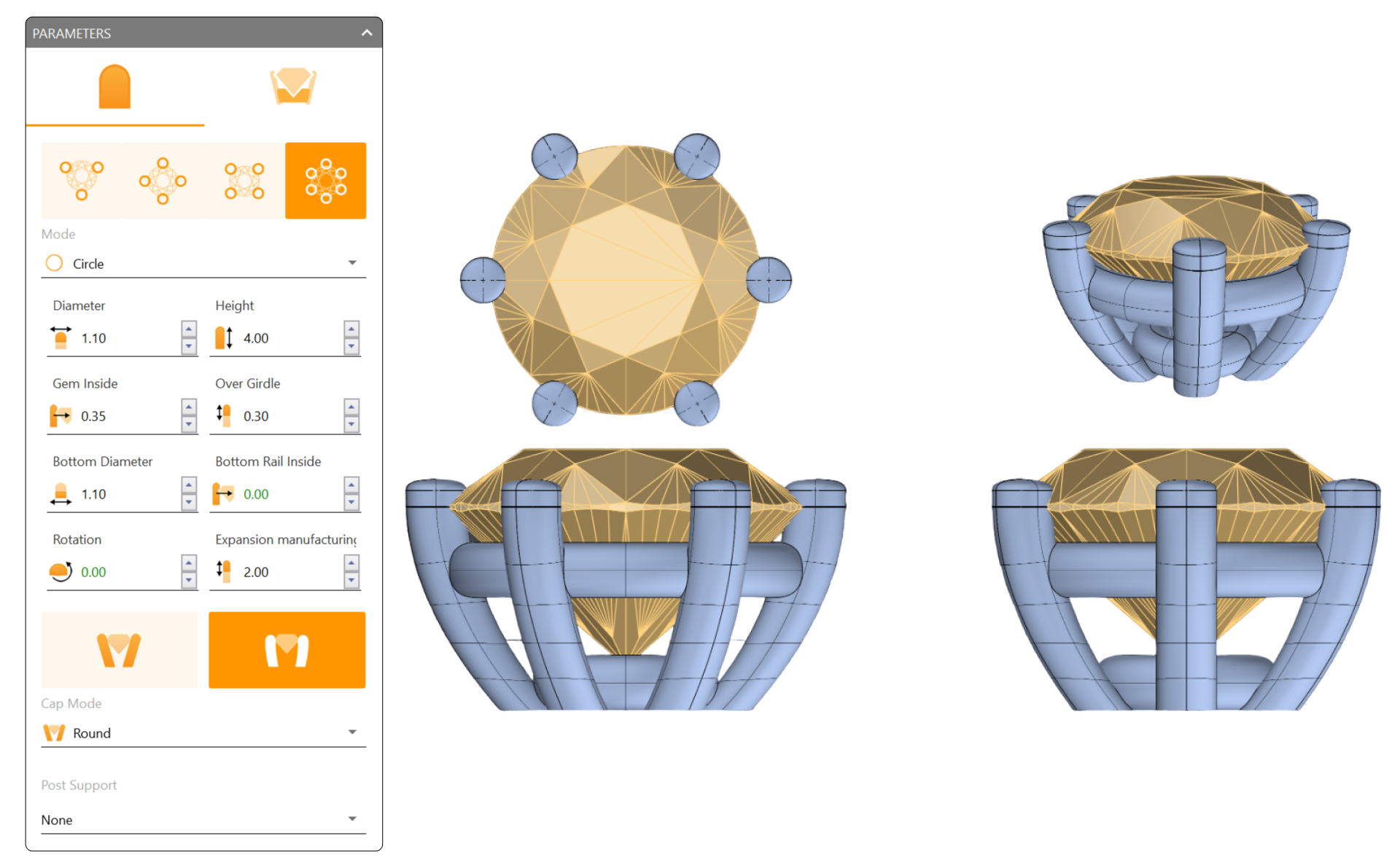

Step 3: Modify the following parameters:
- Set Prongs to 6.
- Mode: Circle
- Diameter: Leave the default at 1.10 millimeters.
- Height: 4 millimeters
- Gem Inside: 0.35 millimeters
- Over Girdle: 0.30 millimeters
- Bottom Diameter: 1.1 millimeters

Video Lesson
Next Step
Adjust the rails of the basket for stability.
