Objective: Create a cathedral shank for the ring to ensure stability and style.

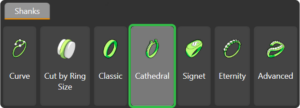

Step 1: Go to the “Shanks” tab and select the “Cathedral” command.

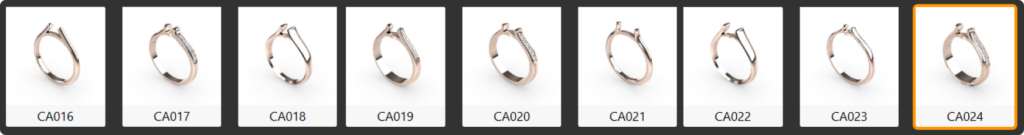

Step 2: Choose model CA024 and press “Edit.”

Step 3: Change the profile to 096 and match the size to the reference curve (size 7, USA).

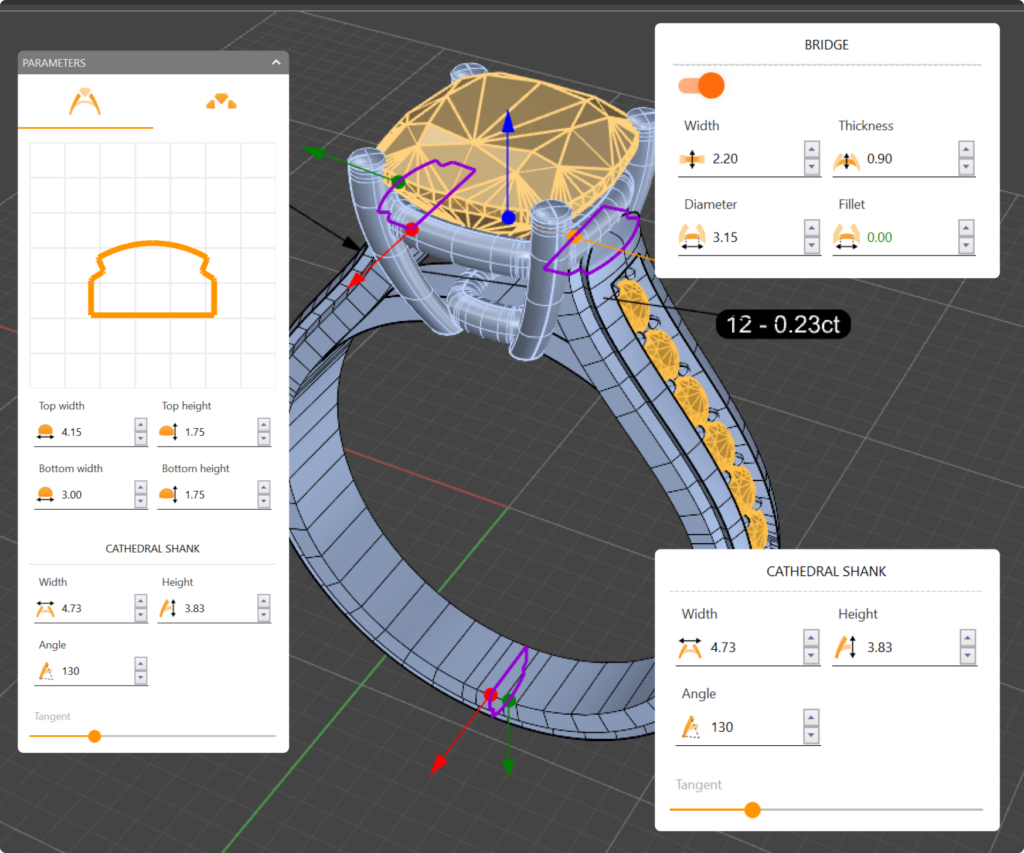

Step 4: Adjust the shank dimensions:
- Top width: 4.15 millimeters
- Bottom width: 3 millimeters
- Cathedral width: 4.73 millimeters
- Cathedral height: 3.83 millimeters

Step 5: Set the bridge
- Width to 2.20 millimeters
- Thickness to 0.90 millimeters
- Diameter to 3.15 millimeters.
