Wild Majesty Pavé Ring
Lesson 26 of 29
Ears, Shank & Union
Sign in to access this lesson
This lesson is part of Living Jewels: SubD Creature Sculpting, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Living Jewels: SubD Creature Sculpting, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

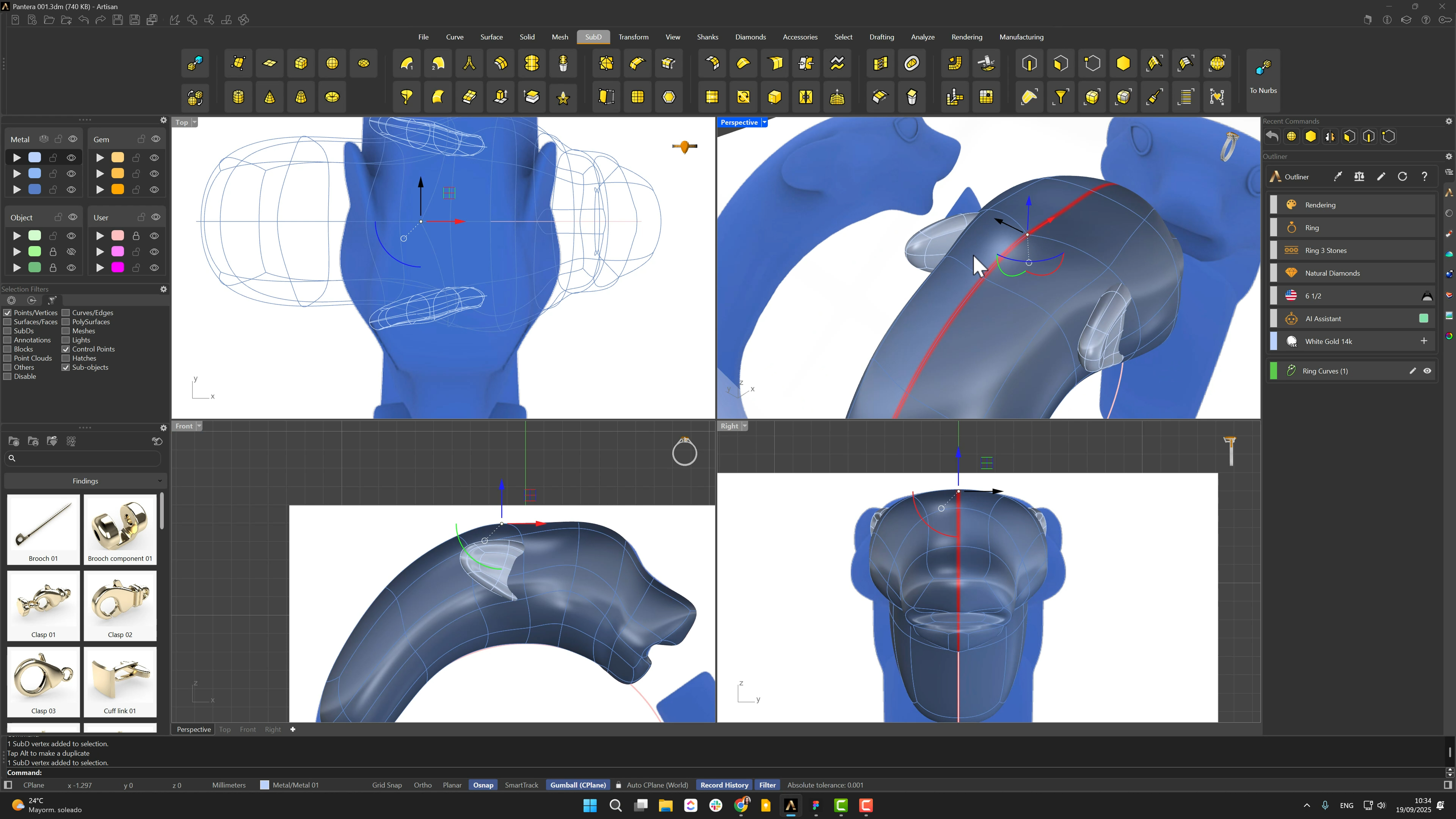

6. Model the ears and mirror them
Another sphere becomes the ear: faces extruded inward for the cup, thinned from the Side view, positioned with every view as witness. Mirror from 0 (Shift + top point in the Right view) for its twin, then move both to the body’s layer and lock it.

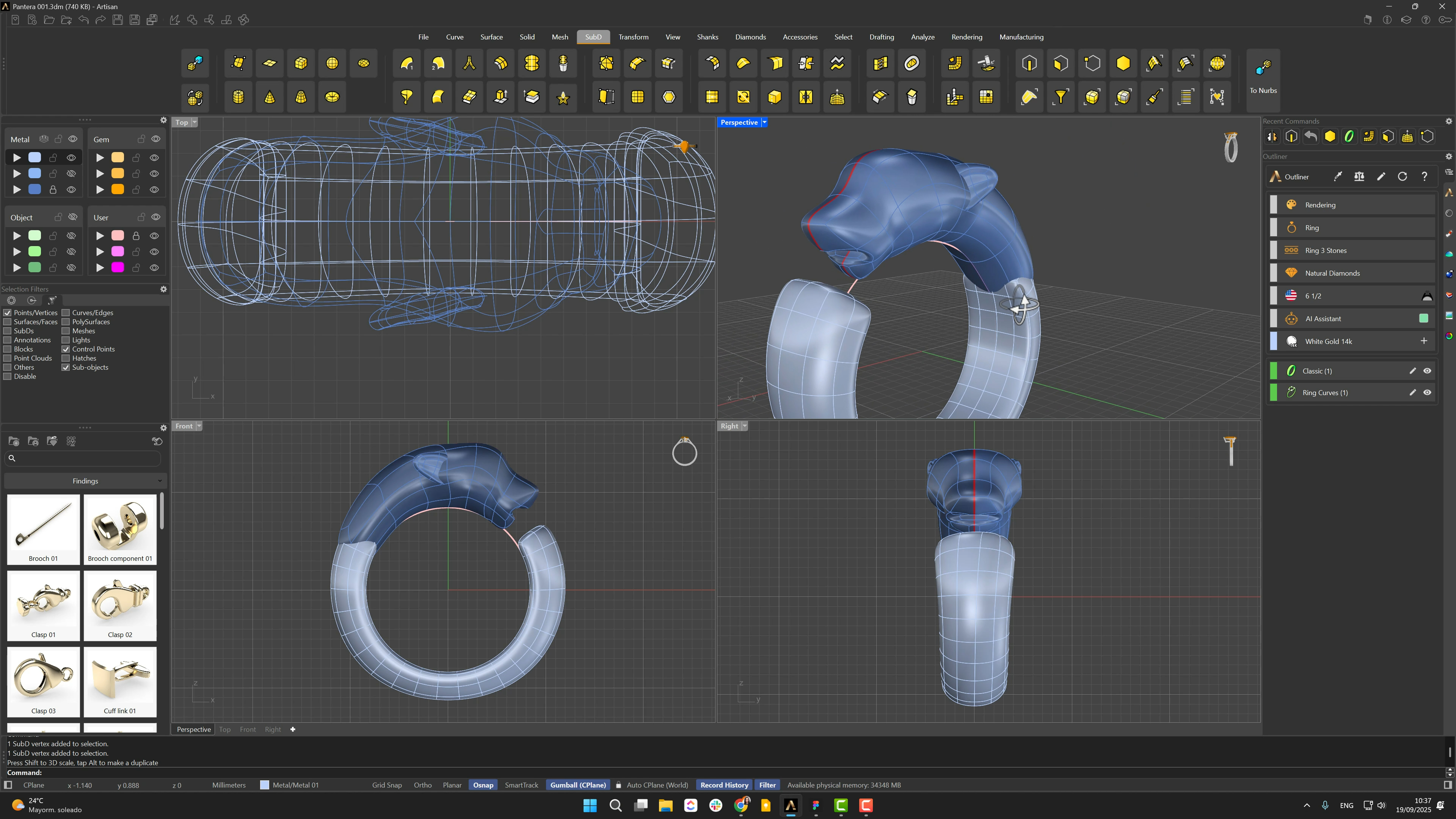

7. Create the shank and convert it to Sub-D
Classic shank without preset, scaled with the Gumball from the Front view: lower profile height, side profile width, all profiles Solid, and the opening set to Cutting at the reference measurement (16 in the example). Accept, then Quad Remesh it to SubD — higher edge length for fewer faces — keeping the original hidden as backup.

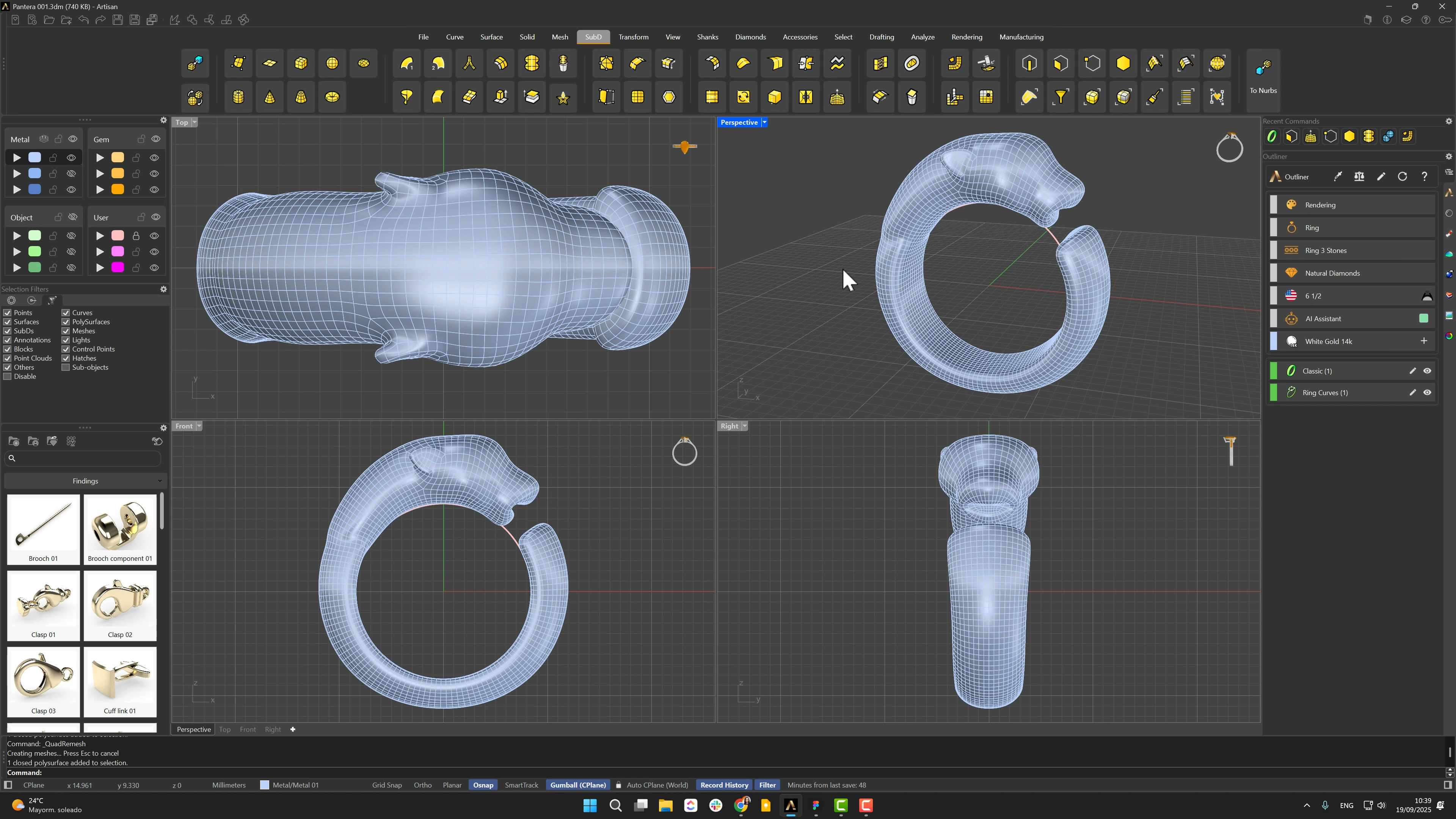

8. Join the head and shank, then unify the model
Fit the union area carefully — the smoother the overlap, the cleaner the result. Remove the head’s symmetry (Reflect > Remove), Boolean Union everything, and Quad Remesh the combined model with a low measure to preserve detail (X symmetry if useful). If the union isn’t smooth, refine or delete edges in the SubD result.
