Objective
Draw the reference curve for the round basket using the three-point arc method.
Content

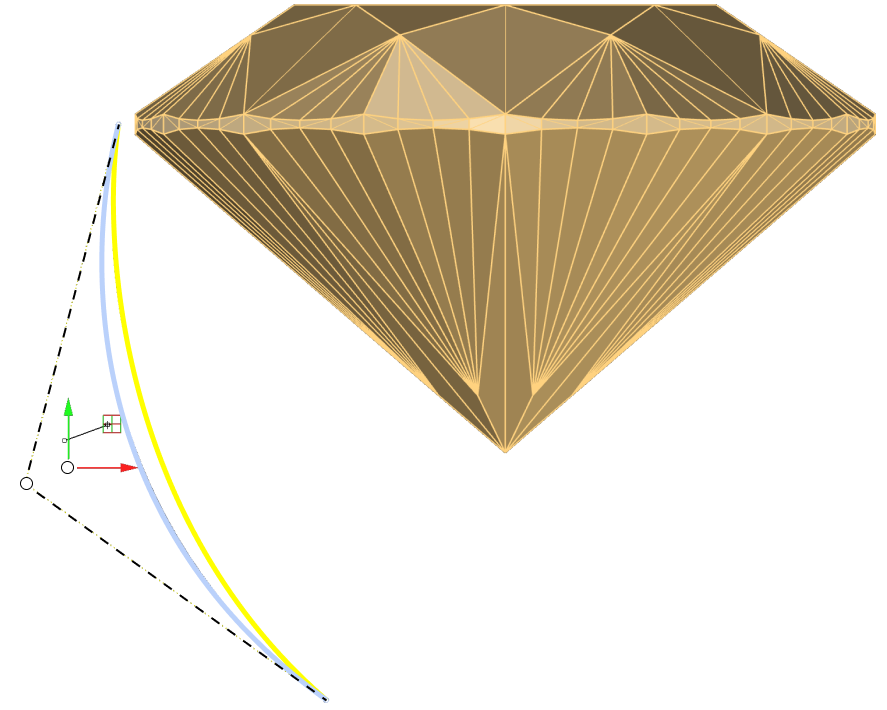

Go to the Curve tab and select the Arc by Three Points command.

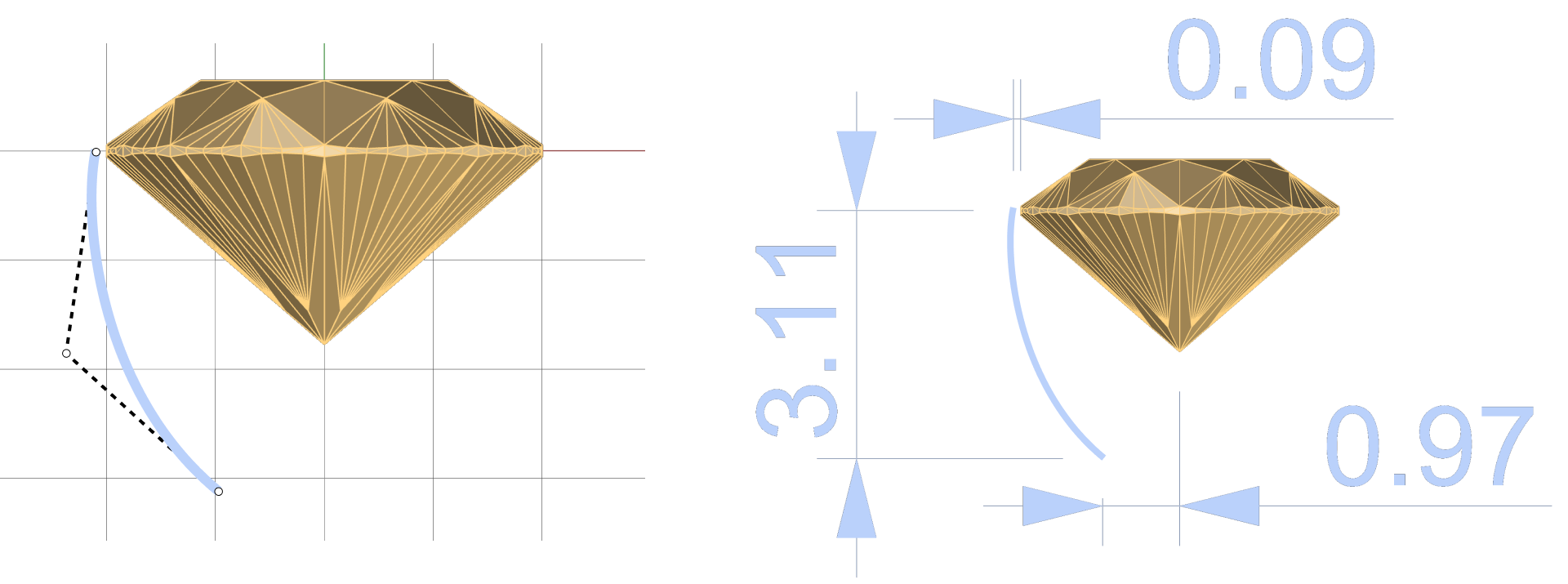

In the Front View:
- Place the first point slightly left of the gem along the X-axis.
- For the endpoint, count three squares downward and one square toward the Z-axis.
- Adjust the curve with the third point to achieve the desired shape.
Video Lesson
Next Step
Design the prong for the round basket.
