Final Ring
Lesson 19 of 28
Cutters
Checking access…
Sign in to access this lesson
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective

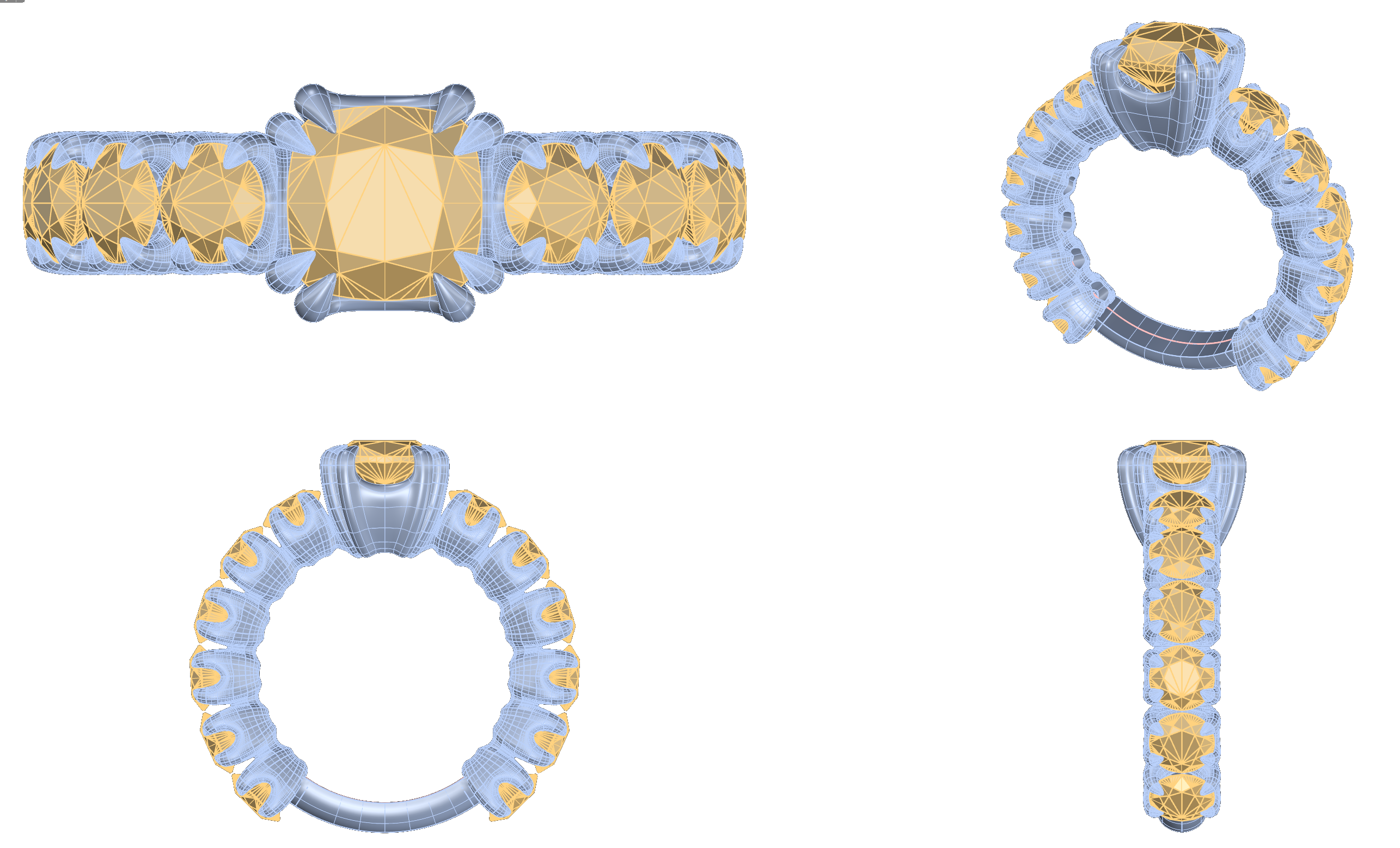

Remove excess metal from the design to expose the gems.
Content
Create cutters:

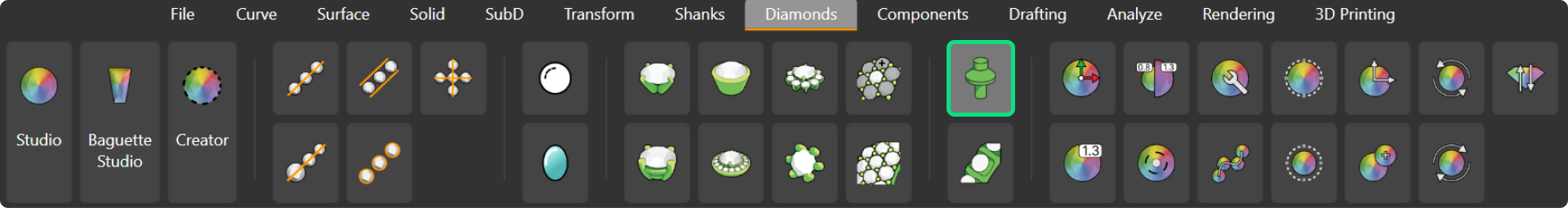

- Navigate to the Diamonds tab and select the Cutter command.
- Use the Layer Panel to select all gems by right-clicking their assigned color.
- Add the gems to the cutter selector.
Perform Boolean operations:

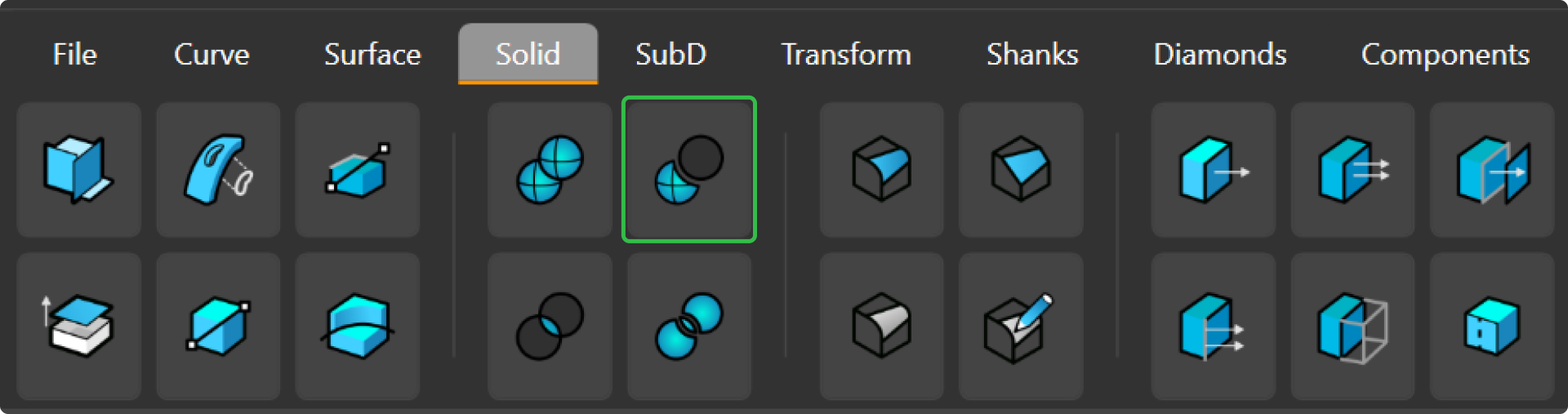

- Go to the Solid tab and select Boolean Difference.
- Select the baskets and press Enter.
- Select the cutters and press Enter again.
Video Lesson
Next Step
Prepare the model for rendering.
