Second Basket: Round Gem
Lesson 12 of 28
Mirror the Prong
Sign in to access this lesson
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective
Duplicate the prong and create a bridge to connect both prongs.
Content
Activate osnap with project and record history.

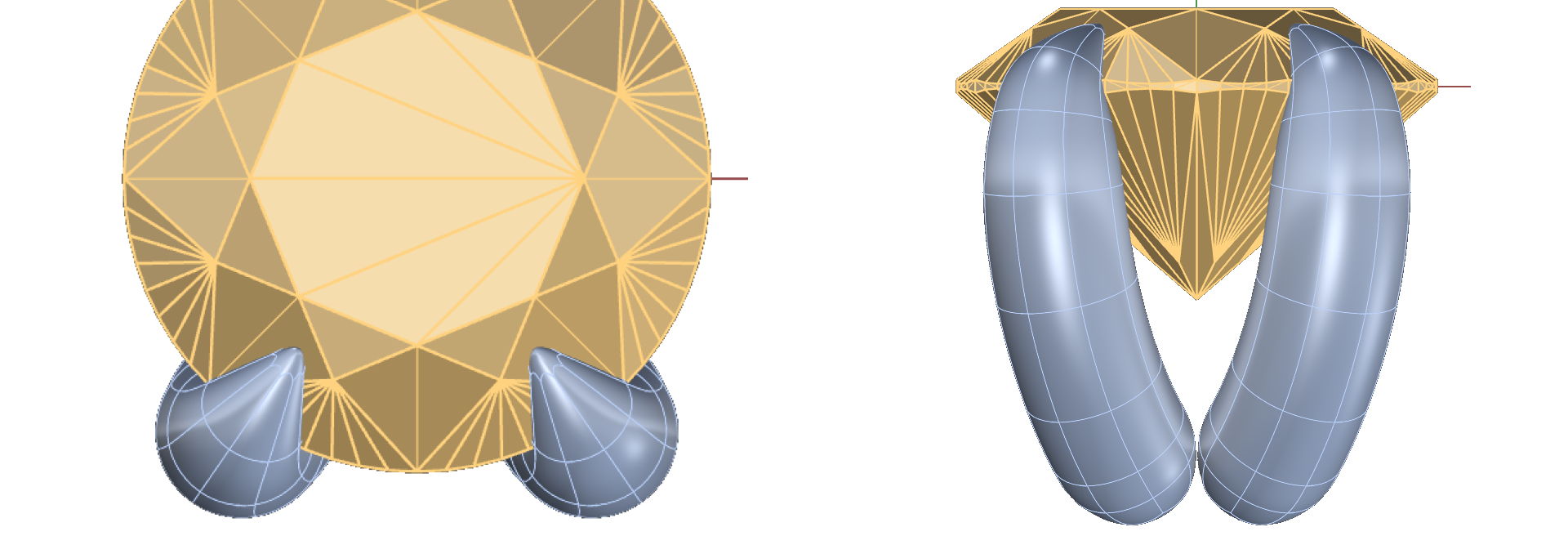

Duplicate the prong:
- Use the Mirror command in the Y-axis.
Create a bridge:

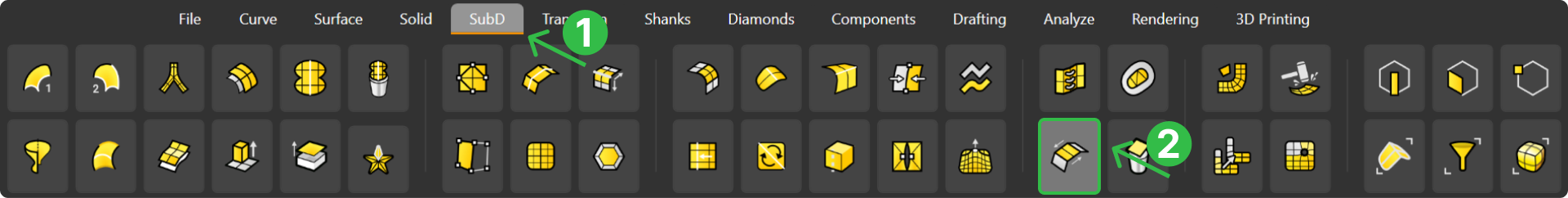

- In the SubD tab (1), use the Bridge command (2).

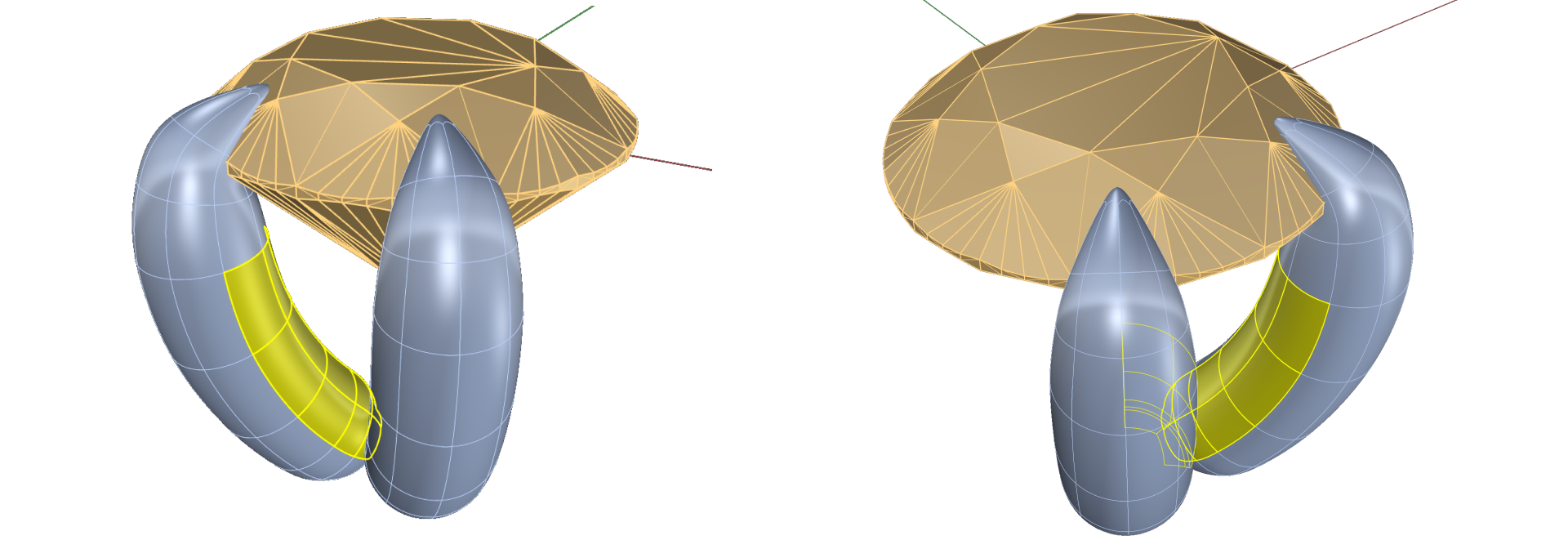

- Select the 10 bottom faces of one prong and its corresponding faces on the mirrored prong.

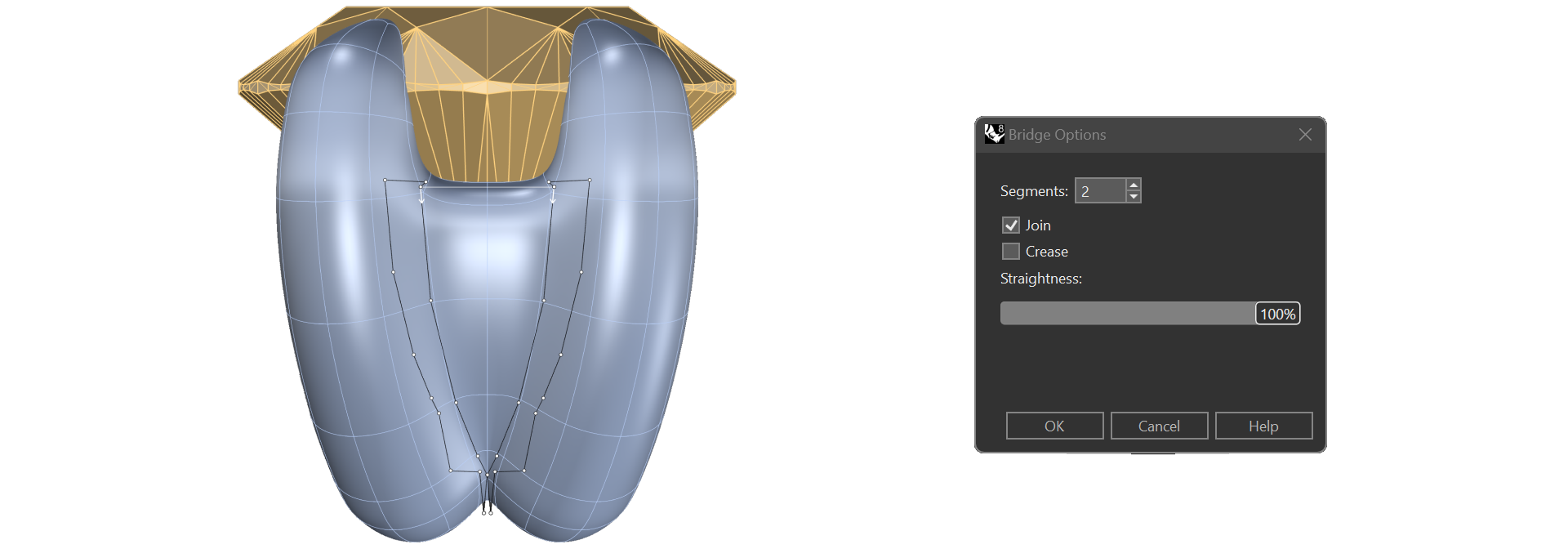

- Set the Segment count to 2.
Adjust the bridge, like the first basket:

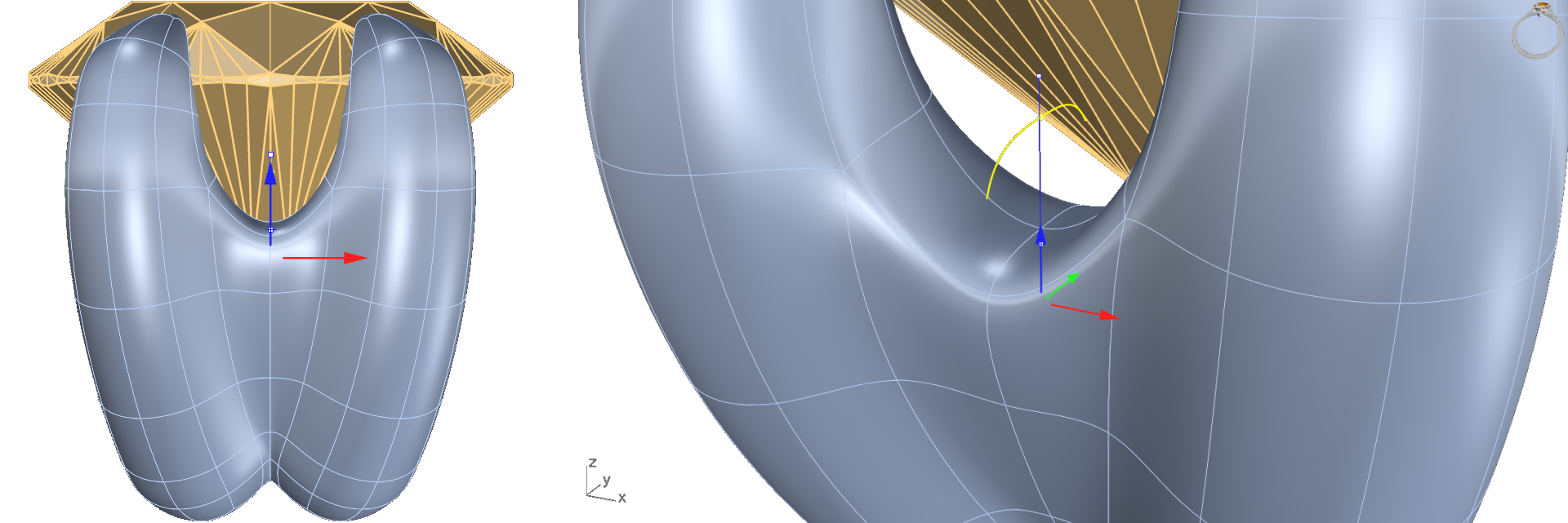

Use Ctrl + Shift to select the top point of the bridge and its edges. Lower the selection slightly to create an arch.

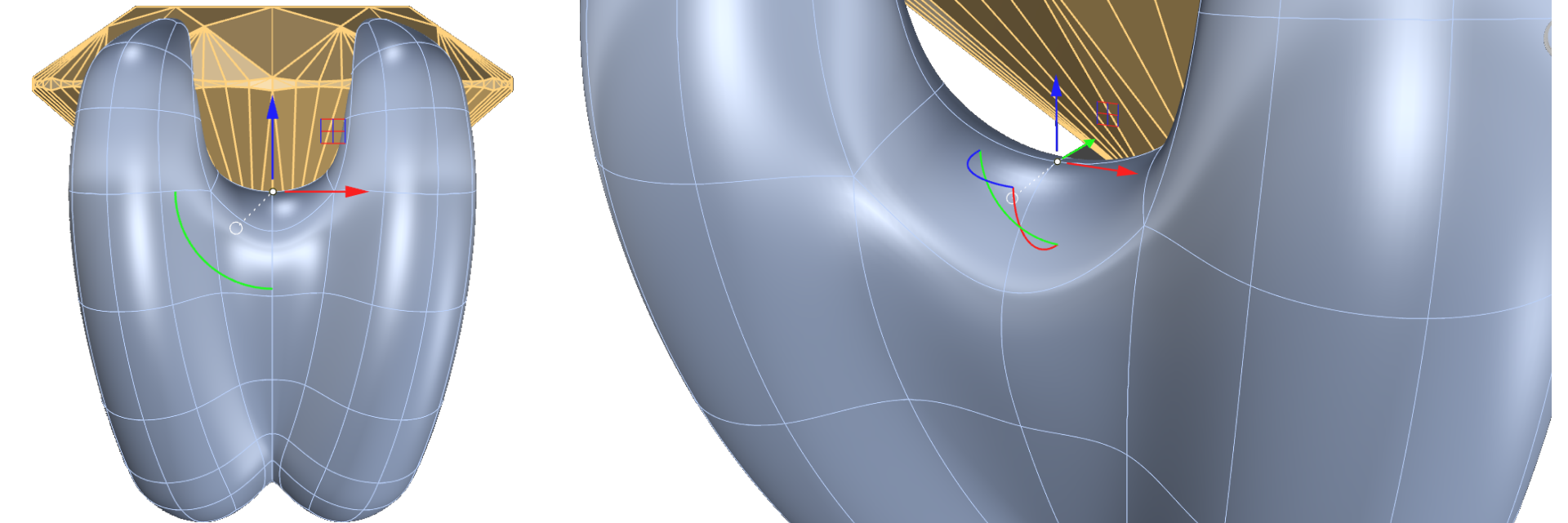

Raise the central point to soften the curve.

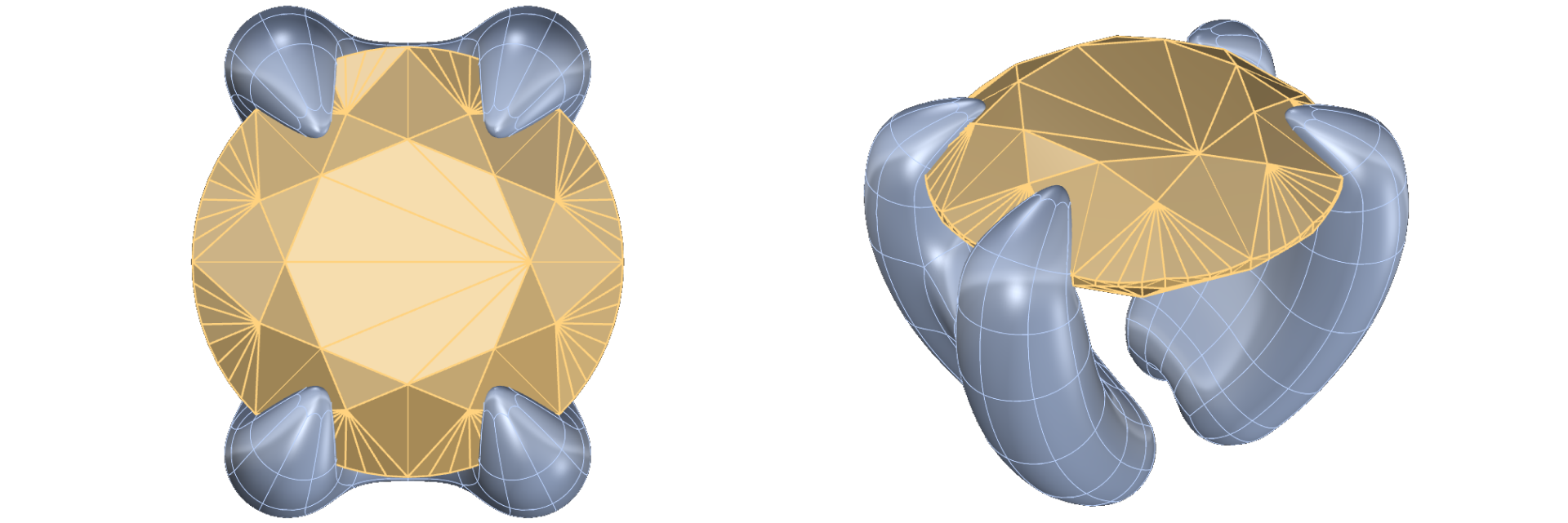

Now from the top view, use Mirror command in the XAxis to create the other side.
Video Lesson
Next Step
Build the bridge to finalize the round basket.
