Objective
Trim the excess material of the design to match the selected ring size.
Content

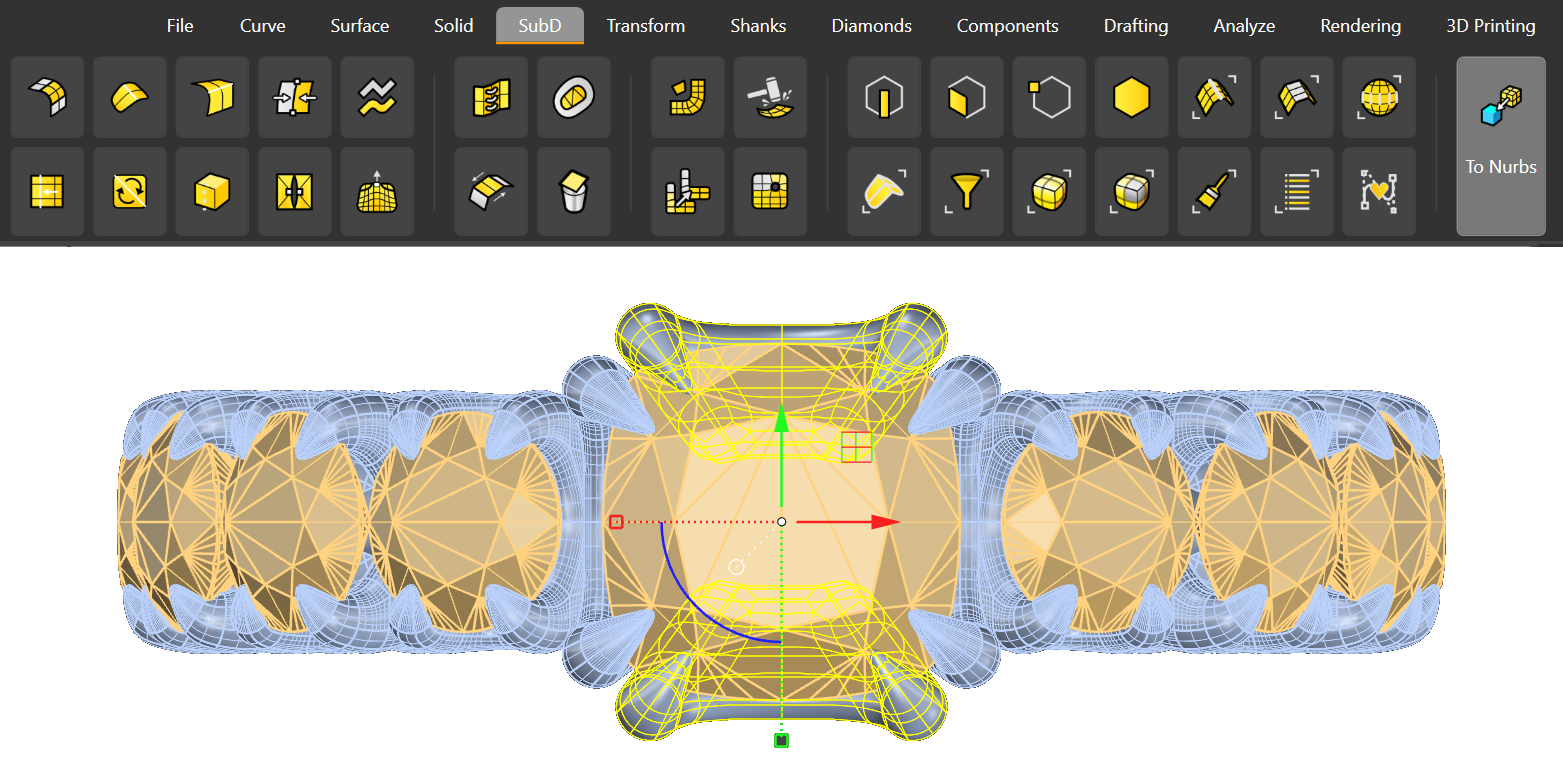

Convert SubD to NURBS:
- Select all SubD elements.
- Select all SubD elements and click To NURBS in the SubD tab.
- Press Enter.
Trim excess material:

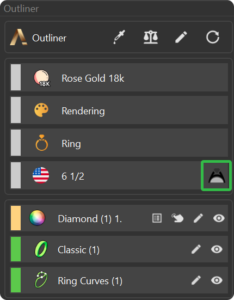

- Use the Cut command in the Outliner to trim to the reference curve size.

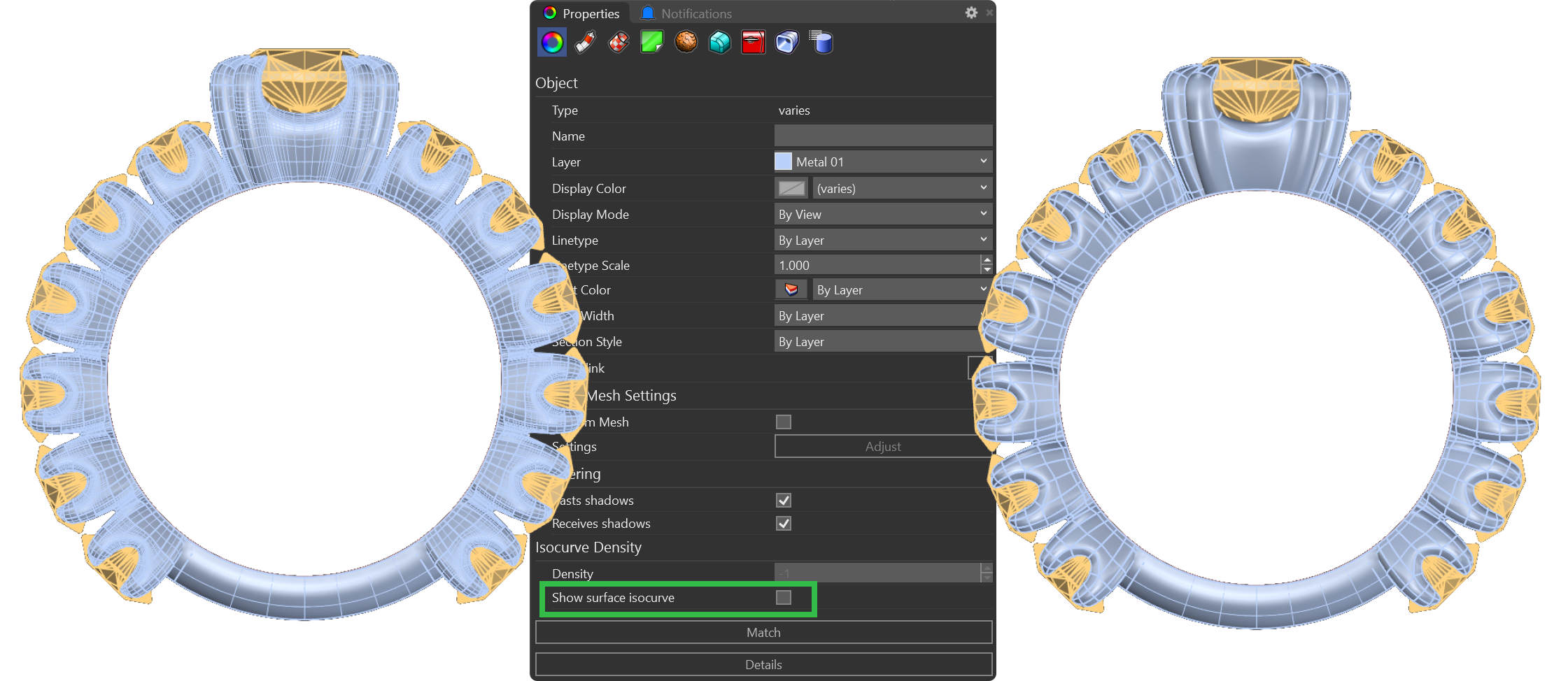

- Select all NURBS elements, press F3, and disable Show Surface Iso Curves to improve visibility.
