Second Basket: Round Gem
Lesson 13 of 28
Second Bridge and Additional Prongs
Sign in to access this lesson
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Organic SubD Ring Design: Elegance Redefined, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective
Complete the round basket by ensuring structural strength.
Content

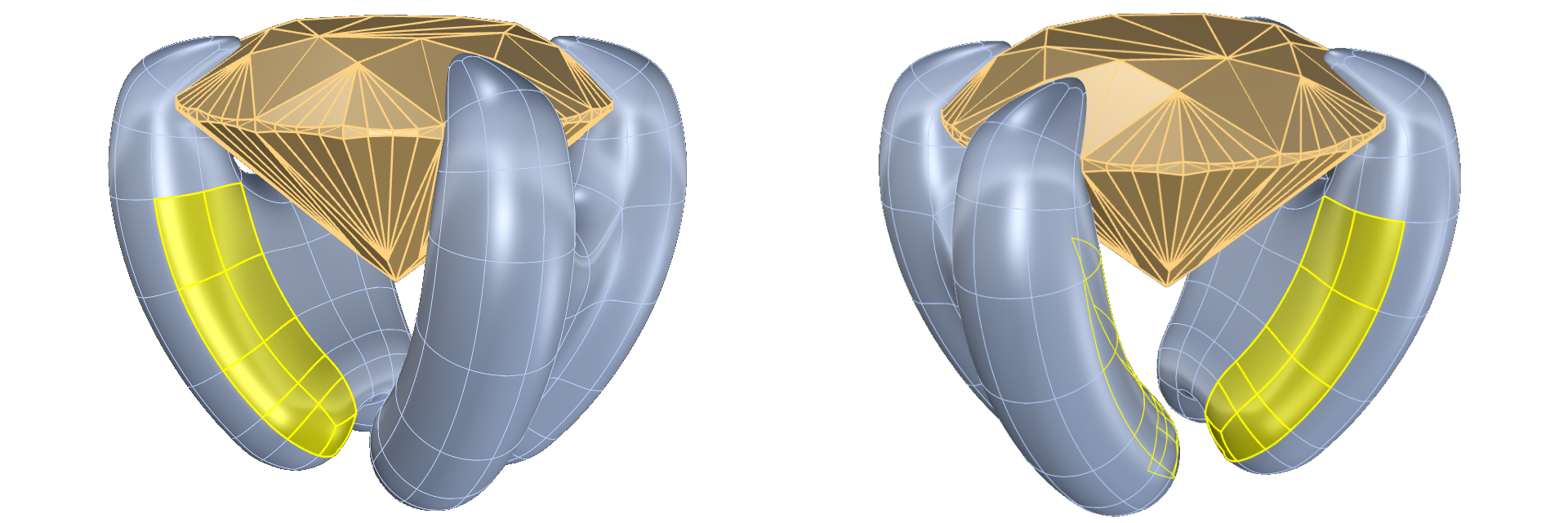

Add a second bridge:

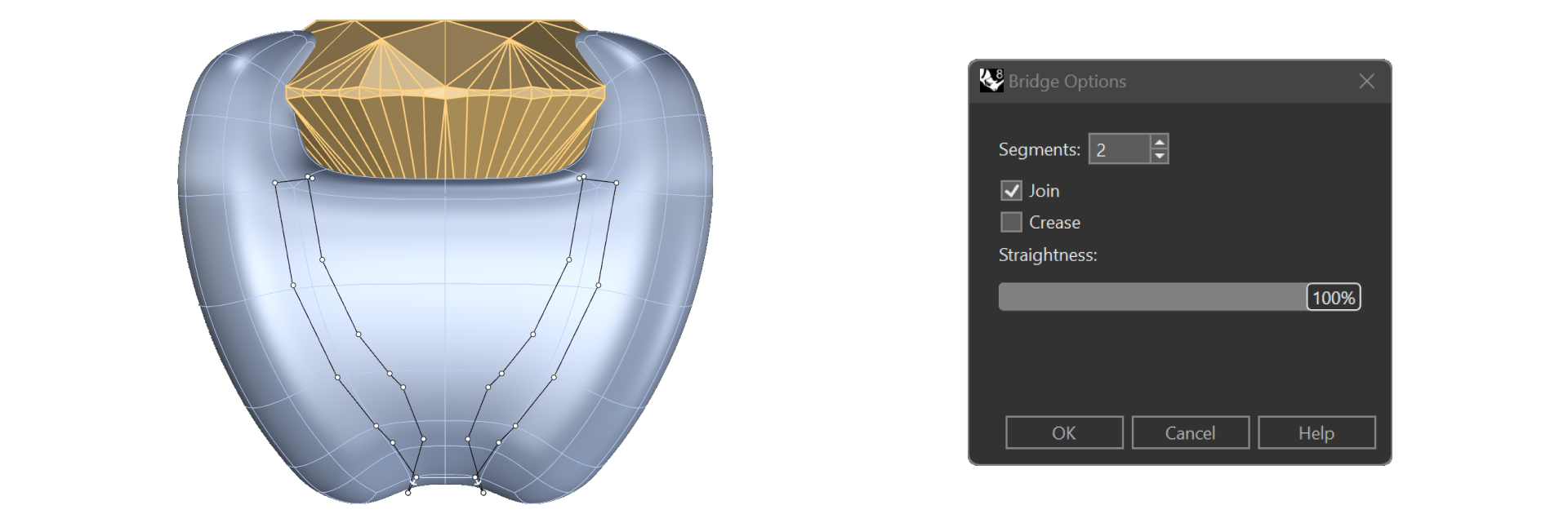

- Use the Bridge command on additional faces between prongs.
- Set Segment: 2 and repeat for each pair of prongs.
- We will do the same on the other side.

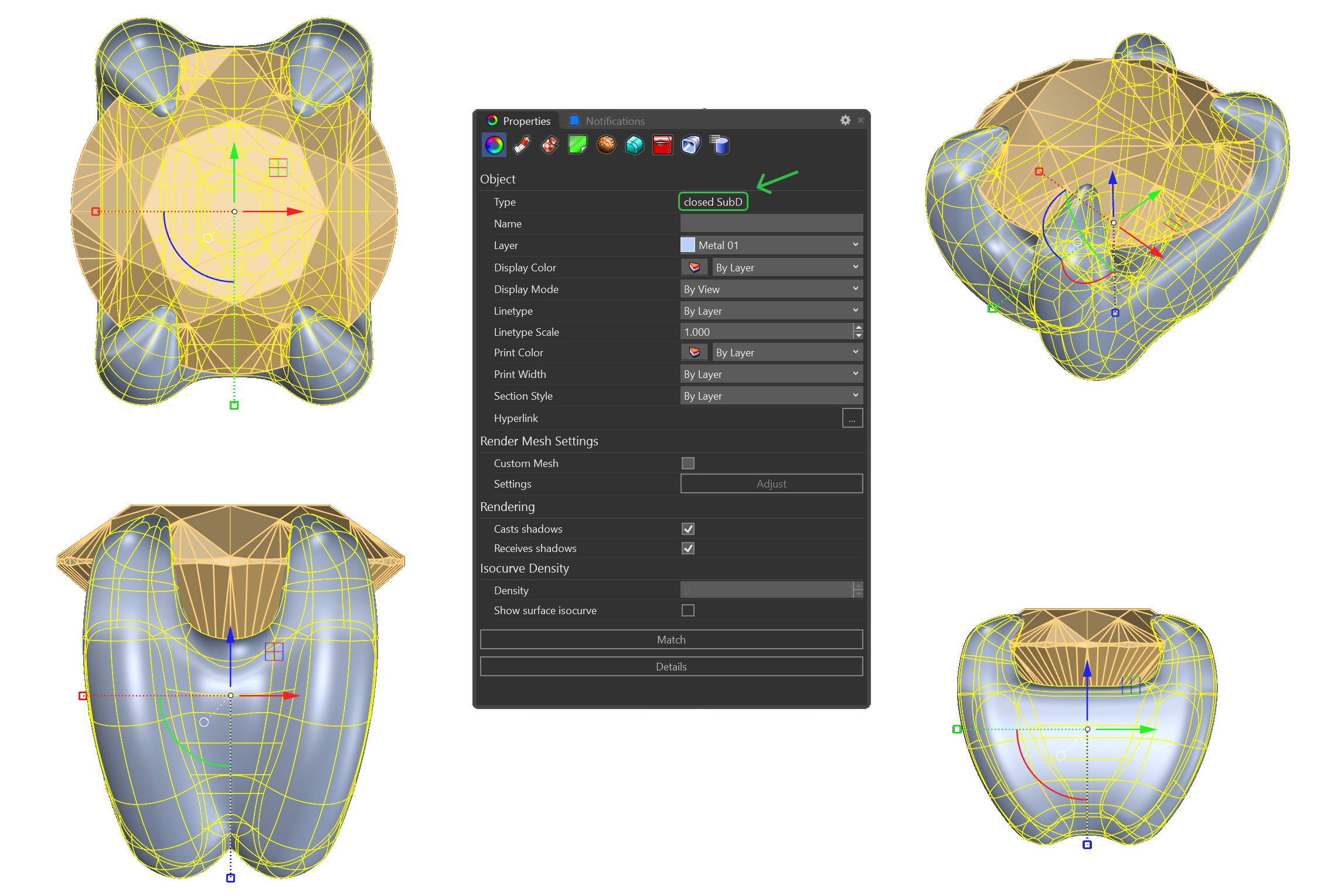

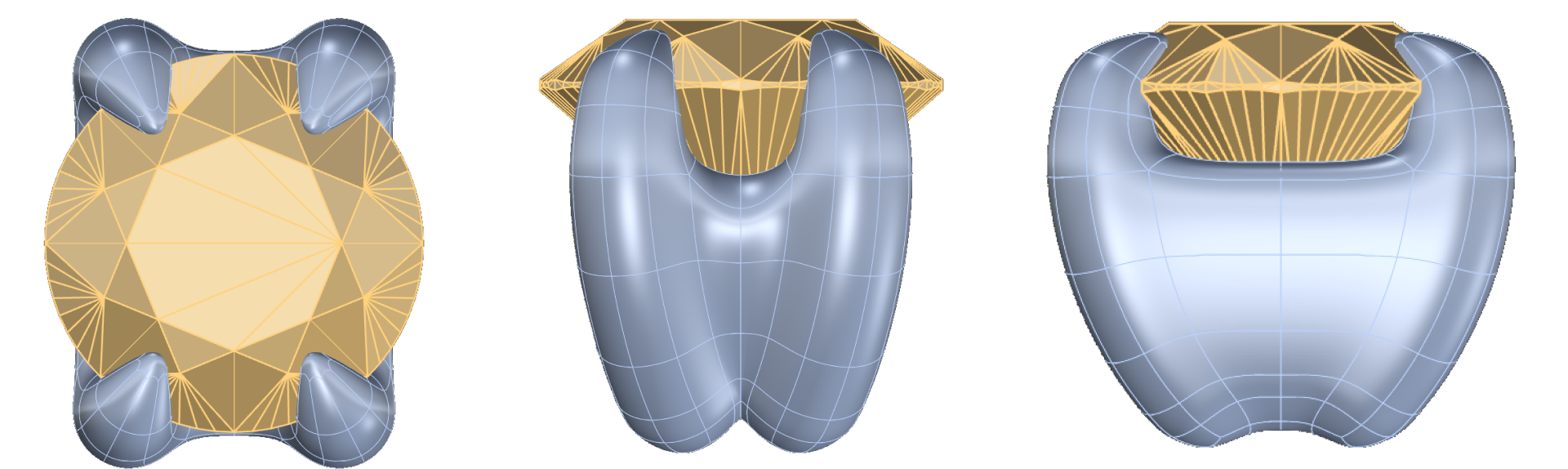

We select the basket and press F3 to view its properties. As we can see, it is a closed SubD. With this, we have finished our second basket.

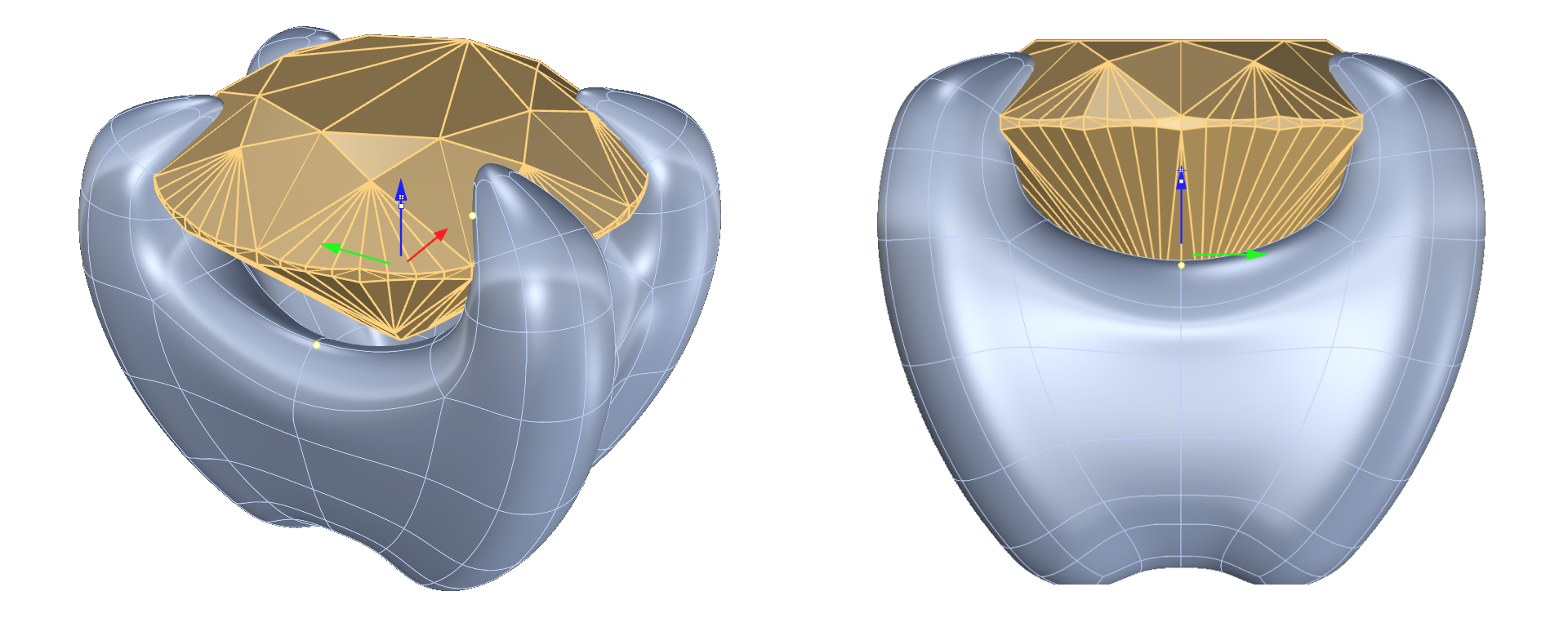

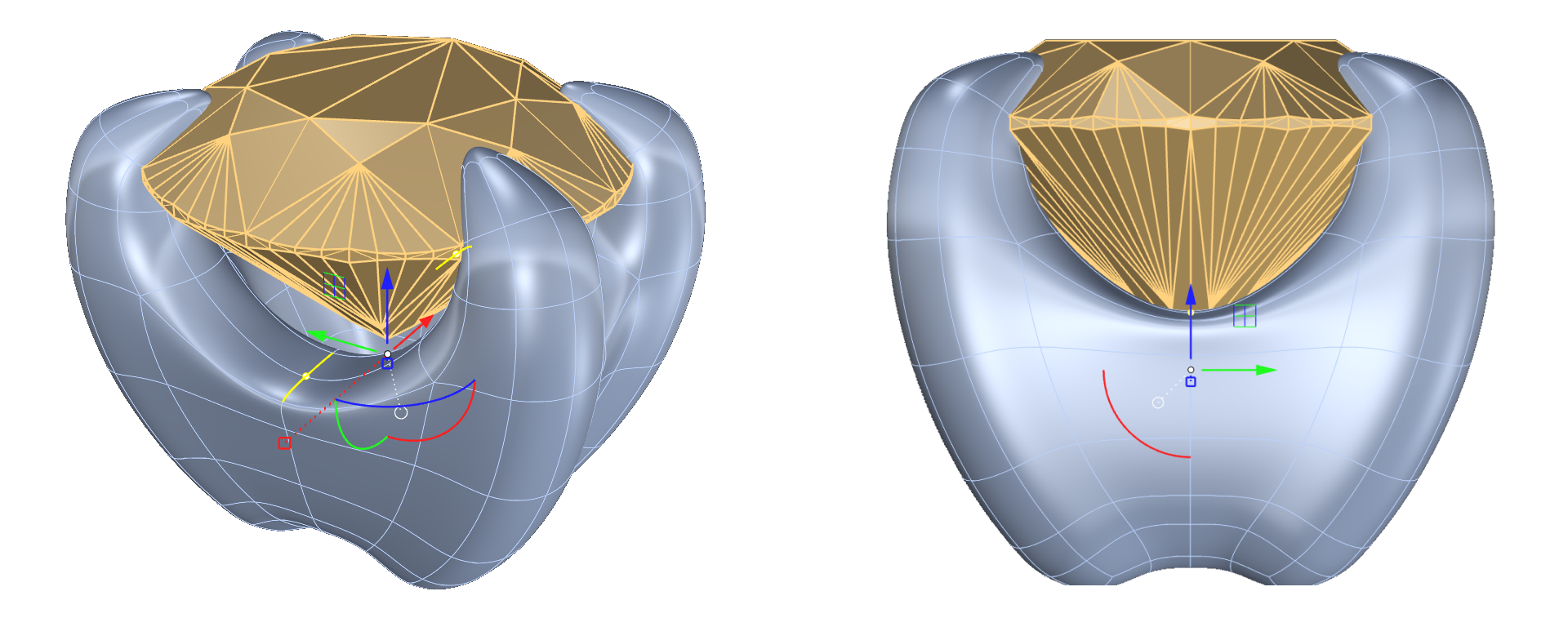

As we did earlier, we will lower the centers of the bridge. To do this:
- Select the two central points along with their edges.
- Follow the same procedure: first, lower the points and the edges
- Then raise the points slightly to smooth the shape.
Video Lesson
Next Step
Save the round basket in the Curator Panel.
