Floating Diamond Ring
Lesson 23 of 43
Boolean Difference and Fillet Edges
Sign in to access this lesson
This lesson is part of Kickstart: From idea to Creation, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Kickstart: From idea to Creation, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to use Boolean Difference to subtract shapes, create precise sockets and smooth the edges of your socket using the Fillet Edge command.
Boolean Difference Command

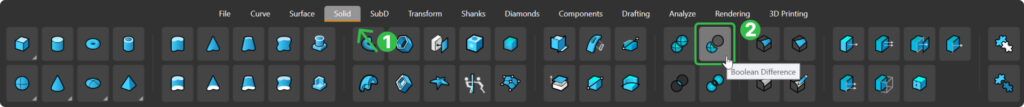

Go to the “Solid” tab (1) and select the “Boolean Difference” command (2).

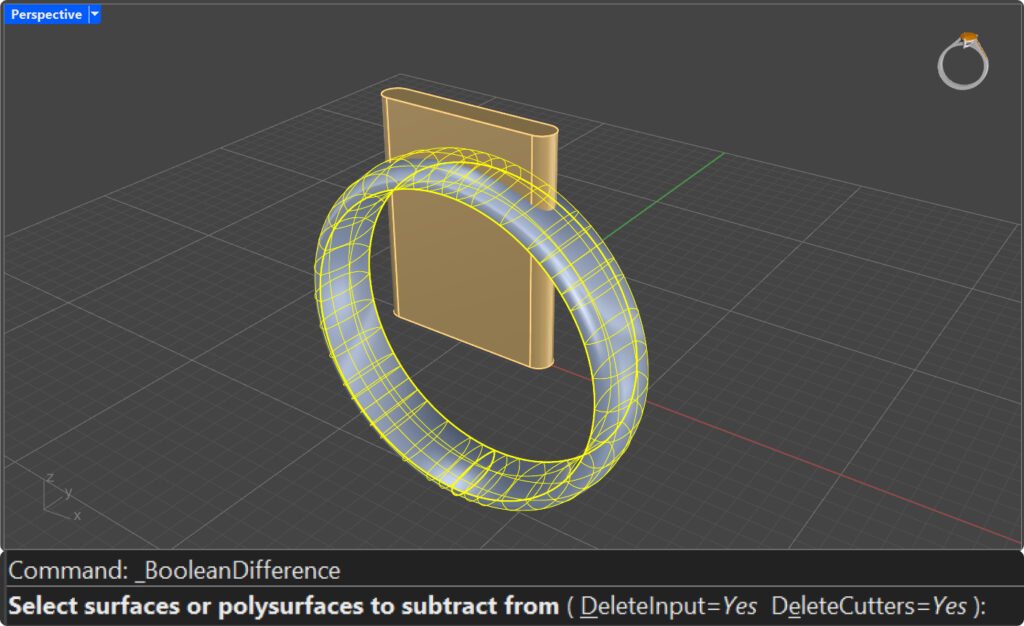

First, select the shank and press “Enter”.

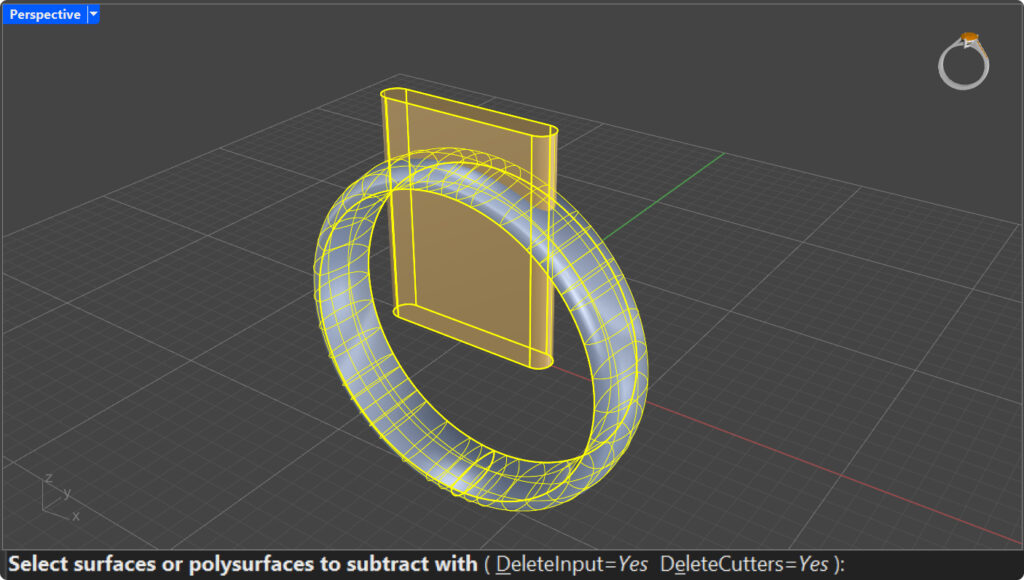

Then, select the solid and press “Enter” again.
Socket

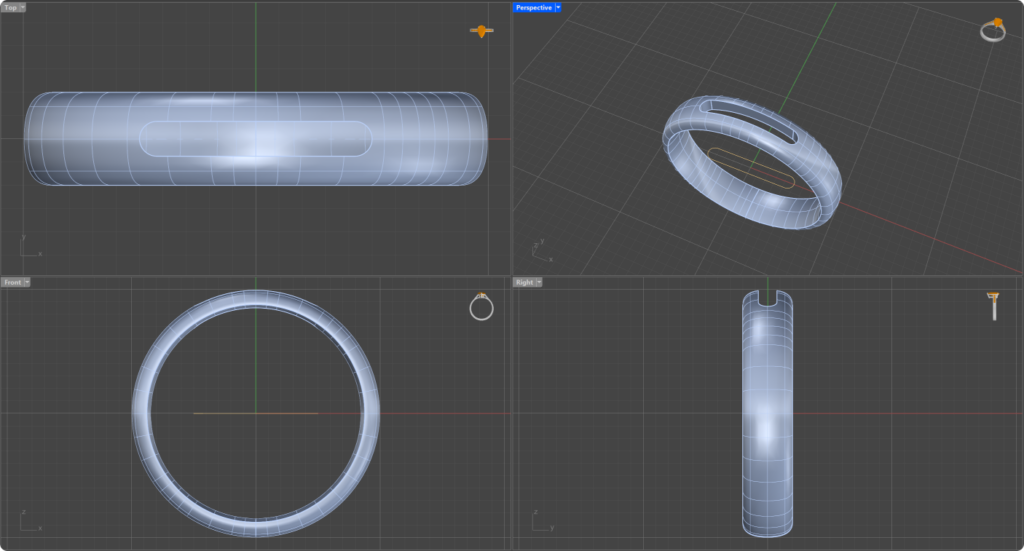

Delete the curve, and the socket is now formed.
Next, we will refine the edges of the socket.
Fillet Edge Command

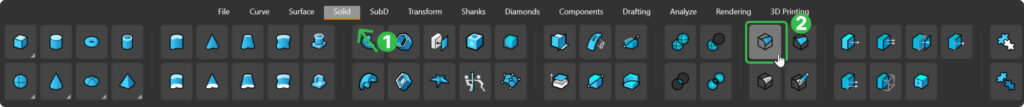

In the “Solid” tab (1), select the “Fillet Edge” command (2).
Fillet Parameters

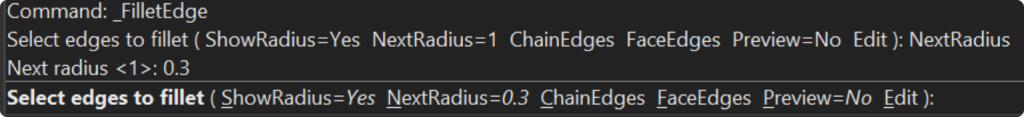

Set the fillet radius to 0.3 millimeters in the command bar and press “Enter”.
FIllet Edges

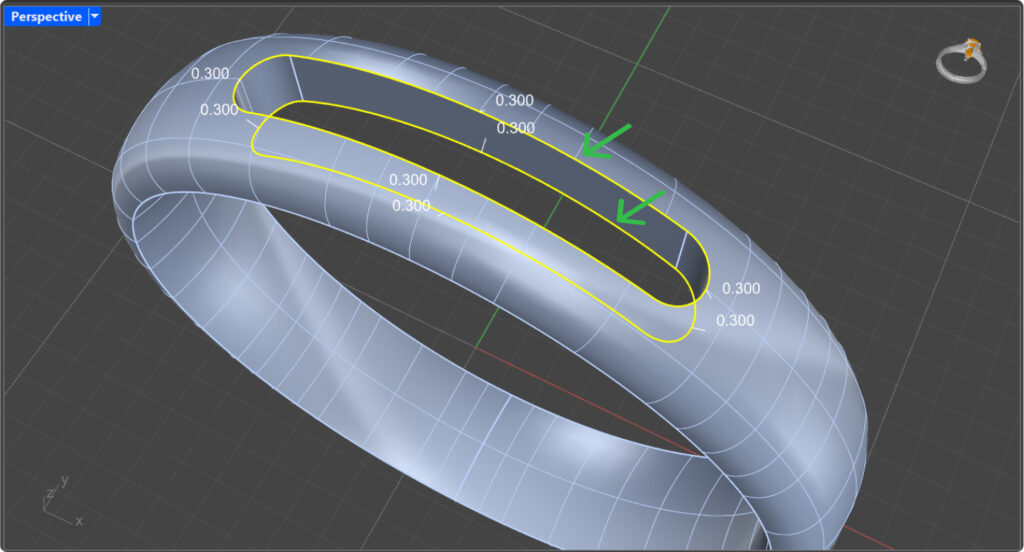

Select the edges of the socket by double-clicking on them. Press “Enter” twice to confirm.

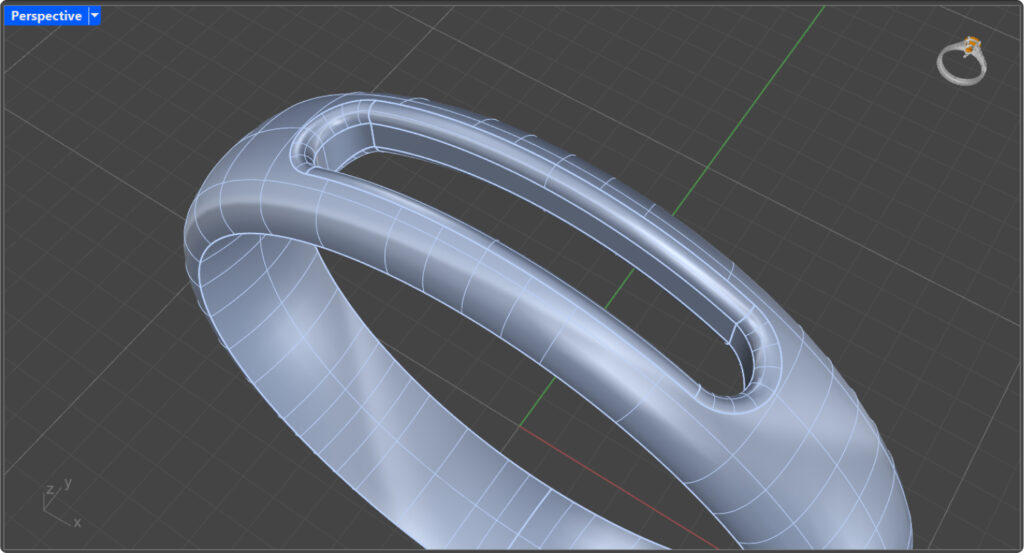

With the edges now smooth we are ready to add the gemstones.
Video Lesson
Next Step
Add and position gemstones in your ring design.
