Objective: Position each element correctly.

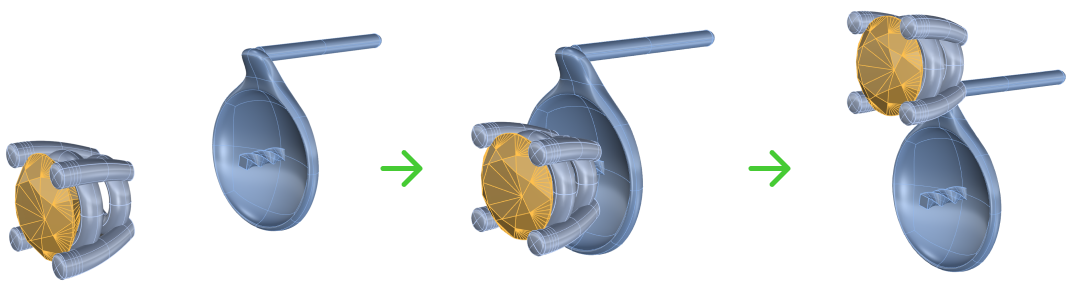

Pose Elements
Move the basket and gem 10 millimeters back and 7.736 millimeters up using the gumball.

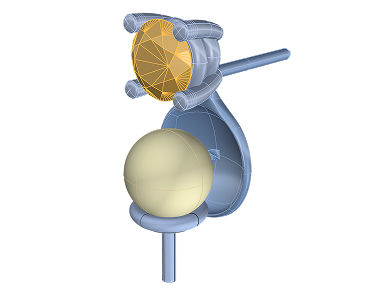

Pearl Command

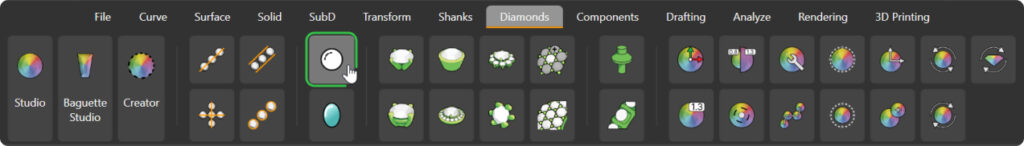

Then, in the Diamonds tab, select the Pearl command.

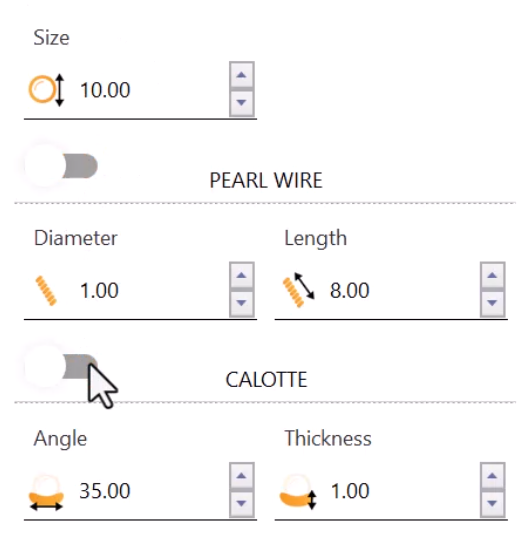

Parameters
Change the size to 10 millimeters. Deactivate the Wire and the Calot, then accept.
Zoom extents All
Select in the Perspective view, “Pan, Zoom, and Rotate”, and then “Zoom Extends All” to center the view.

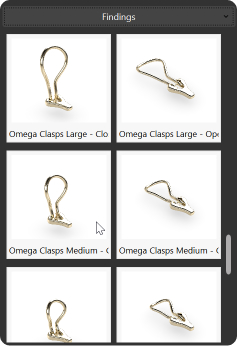

Findings Elements

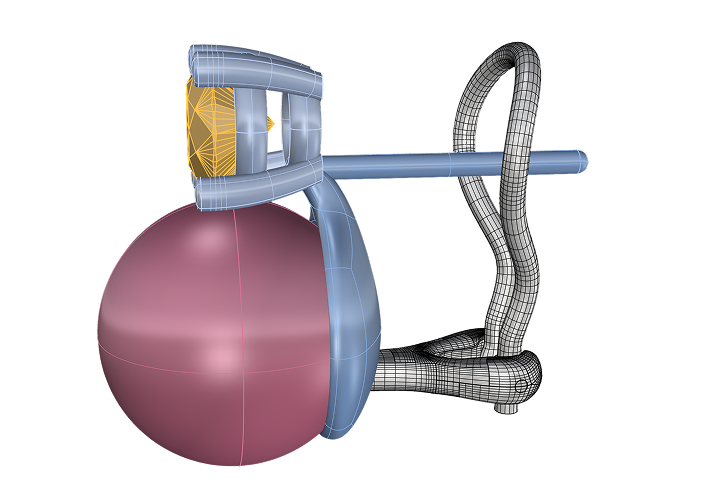

Also, add the clasp system: in the Findings category, select Omega Clasps Medium.
Select the entire piece and move it 4.422 millimeters back and 1.848 millimeters down using the gumball.
Our earring is complete!
