Objective: Configure the shank for your tension ring design.
Cathedral

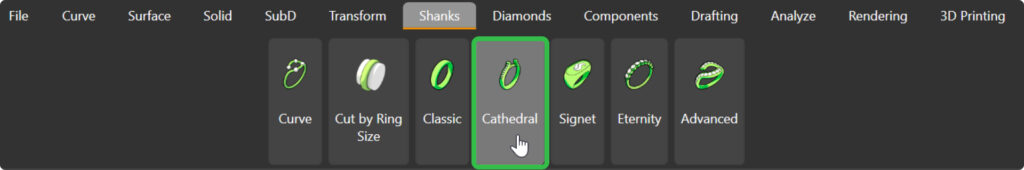

Go to the “Shanks” tab and select the “Cathedral” command.
Shaded Mode

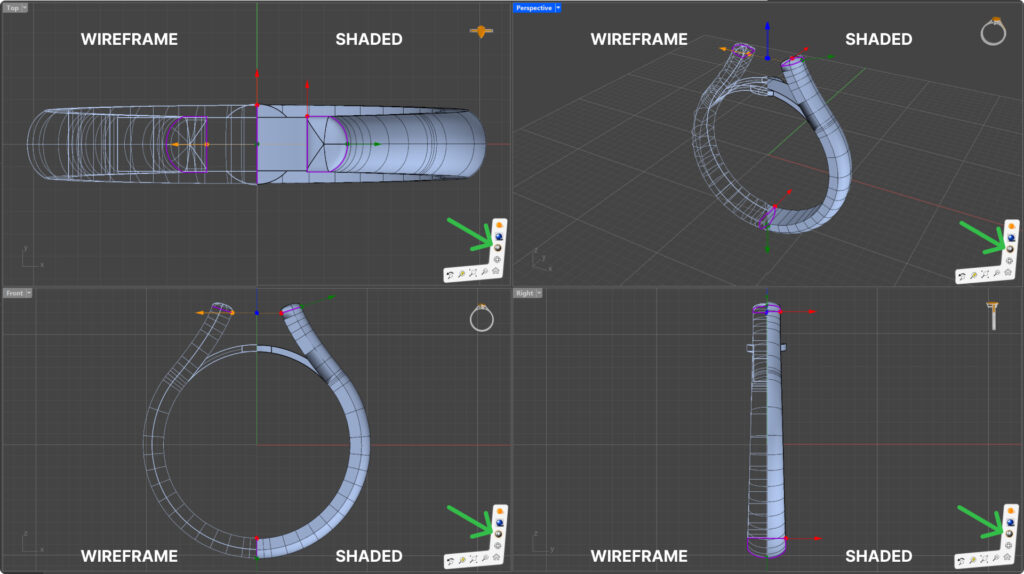

Switch to “Shaded Mode” in each viewport by selecting the option at the bottom right corner for better visualization.
Cathedral Library

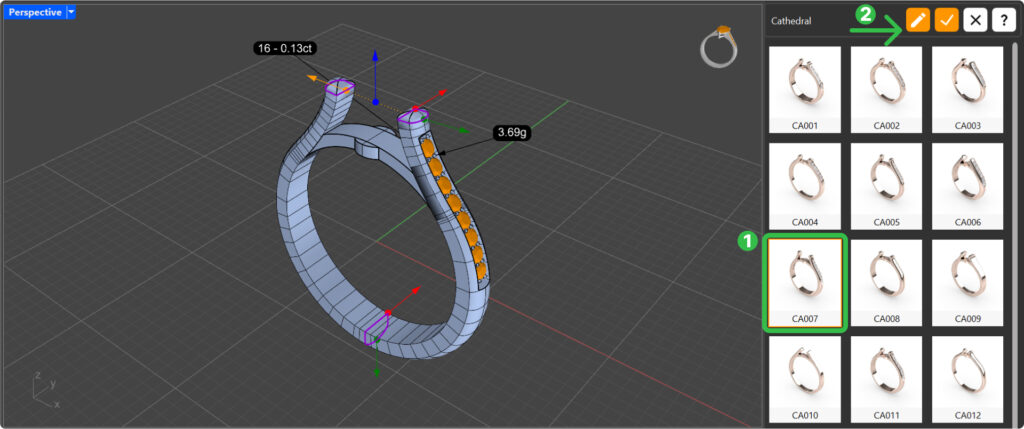

From the RhinoArtisan library, select model “007” (1) then click on edit (2).
Parameters

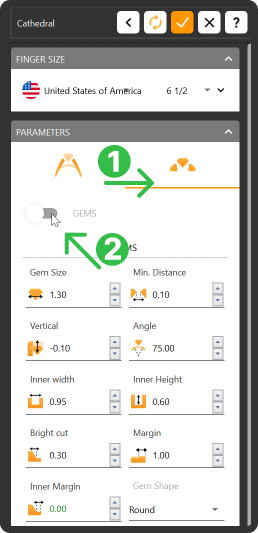

Go to the “Gems” tab (1) and deactivate the gems (2) to focus on the shank.
Profile Assets

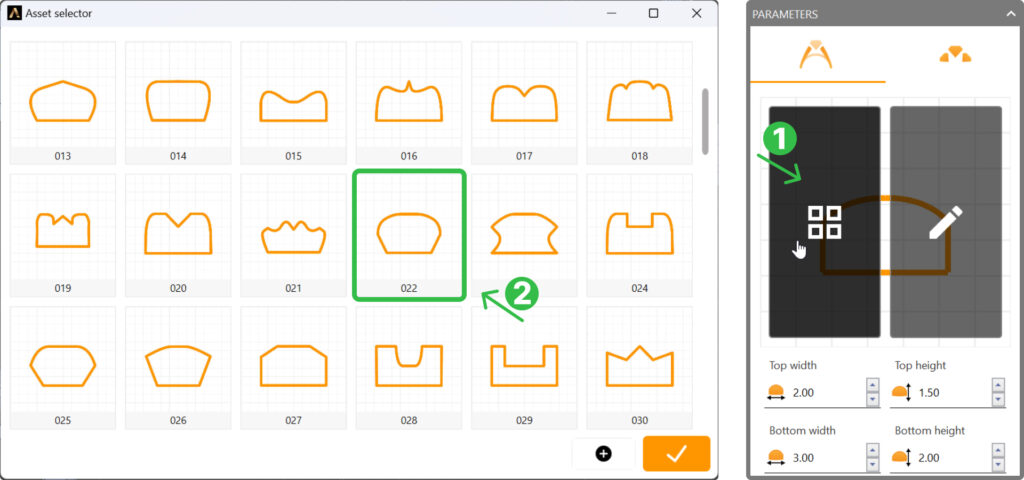

Return to the “Shank Parameters,” click on the profile curve, and change it to curve “022”.
Zoom Extents

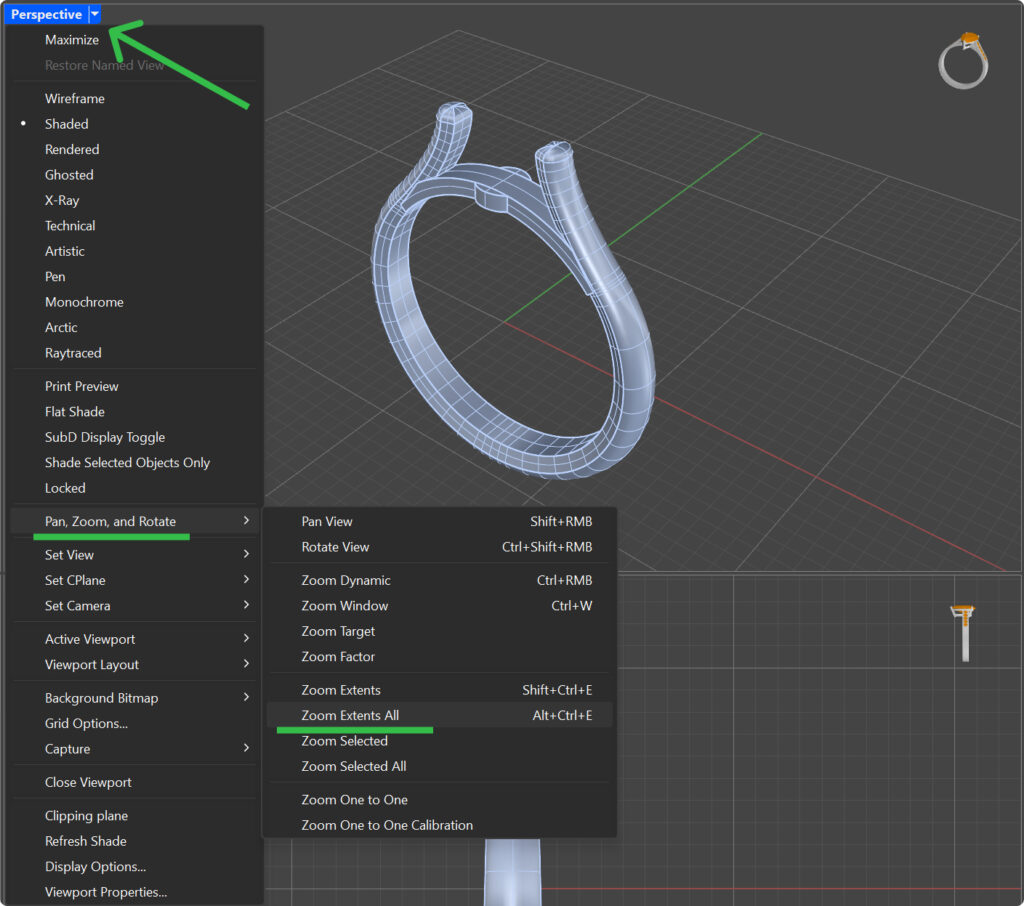

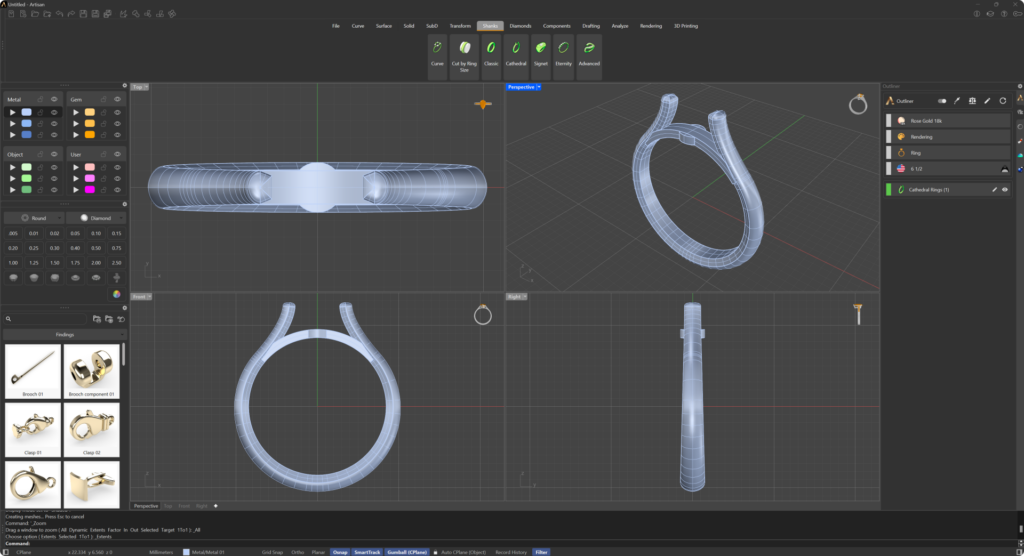

Center the views using “Pan, Zoom, and Rotate,” followed by “Zoom Extents All.”
Next Steps
Adjust the shank parameters to refine the design.
