Stud Earrings
Lesson 16 of 43
Pose: Pair and Lying on the ground
Sign in to access this lesson
This lesson is part of Kickstart: From idea to Creation, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Kickstart: From idea to Creation, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Position the model and create a matching pair of earrings.
Position the Model on the Plane
Begin by going to the Rendering tab in the toolbar. locate and click on the Lying on the Ground command.
This tool allows you to position elements on the selected axis and automatically calculates the necessary balance to position the element with the perfect inclination.

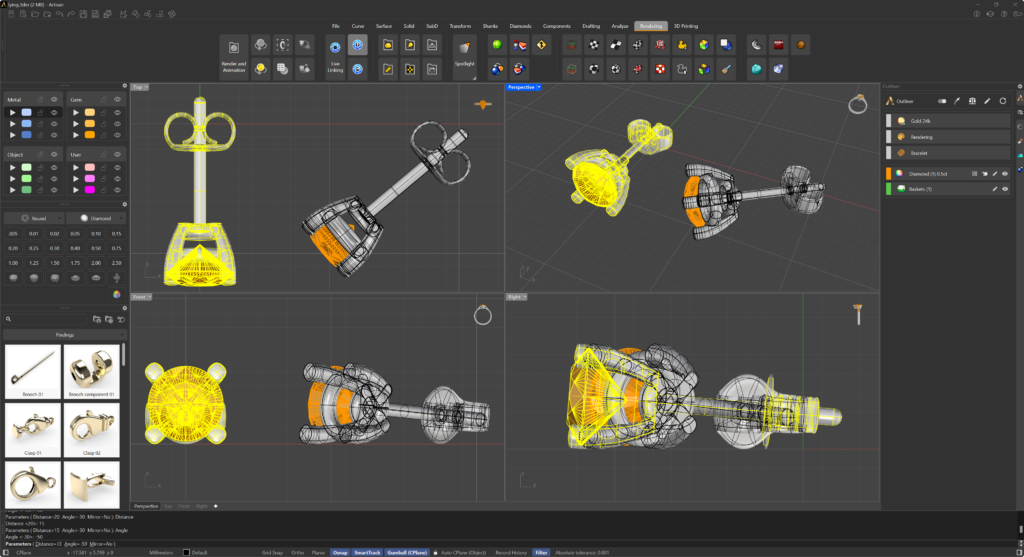

Click on the command and select all the elements of your earring model.

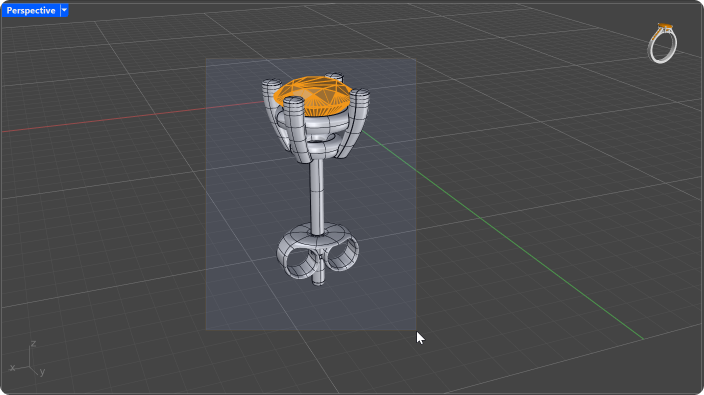

In the command bar, ensure that the plane on which you want to position the earring is correctly selected.
Once the plane is confirmed, press Enter.
Your model should now be perfectly positioned on the ground.
Create the Earring Pair
In the Rendering tab, find and click on the Pair command to create a matching earring.
Select all the elements of your earring model, just as you did in the previous step. Press Enter.
In the command bar, set a distance of 15 millimeters between the pair.
For the pair’s angle, type -50 degrees.
Mirror: No

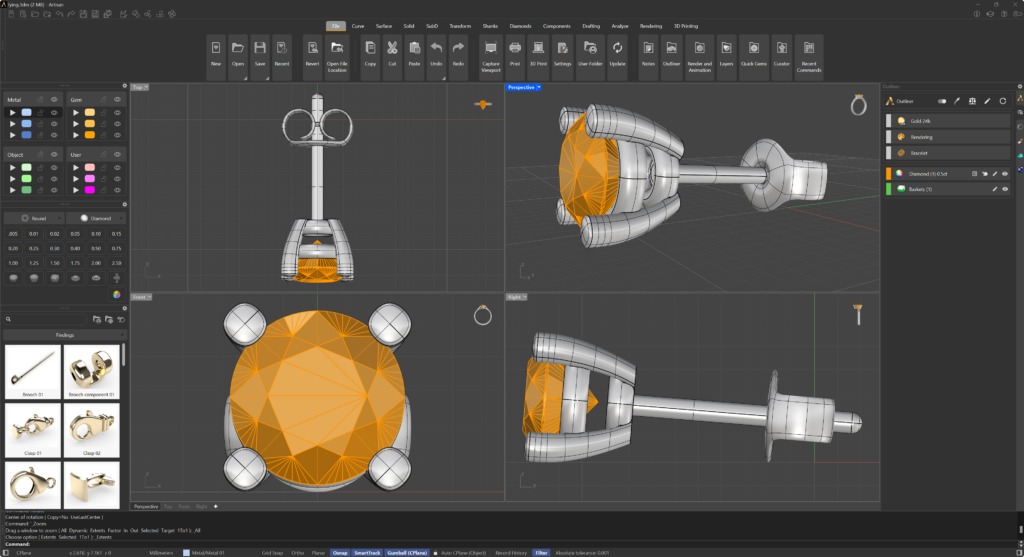

Your model is now perfectly positioned and paired, ready for the next step.
Video Lesson
Next Step
The next will involve applying materials and rendering the final design.
