Objective: Fine-tune the shank parameters to match the desired design.

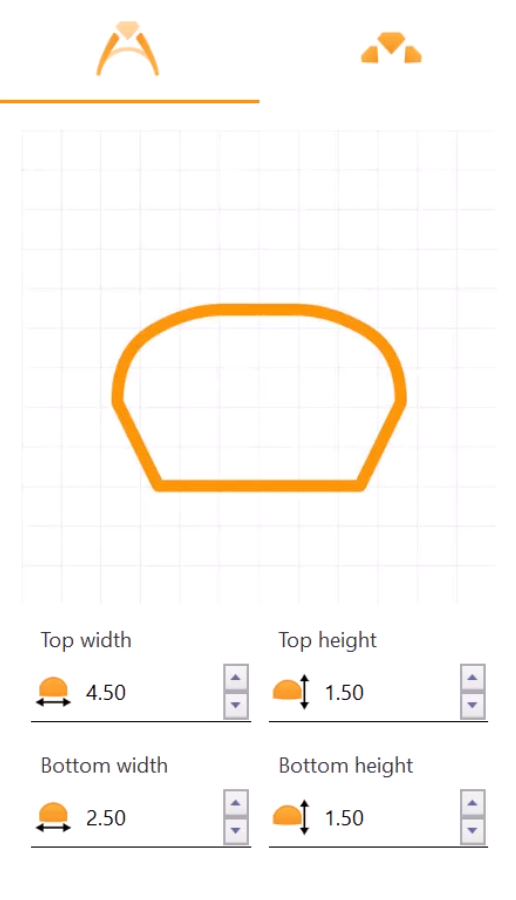

Parameters
- Adjust the top width to 4.5 millimeters
- Keep the top height at the default 1.5 millimeters
- Set the bottom width to 2.5 millimeters
- Set the bottom height to 1.5 millimeters.

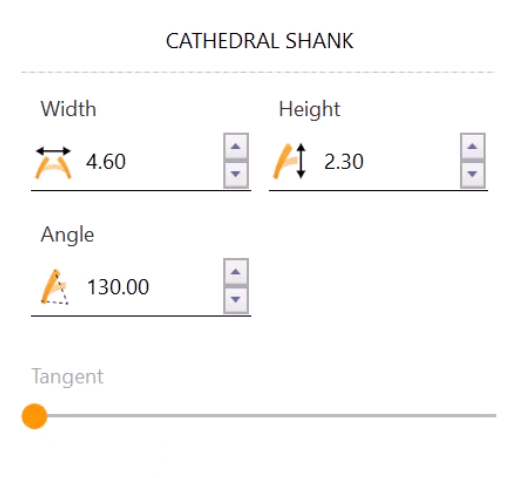

Cathedral Options
Further down in the Cathedral options, change:
- The Width to 4.6 millimeters
- The Height to 2.3 millimeters
- Leave the Angle at 130 degrees
- Set the Tangent to zero by dragging the slider to the left.

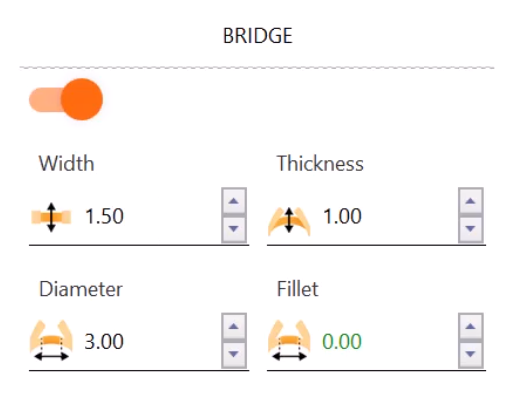

Bridge
In the Bridge options, only change the Width to 1.5 millimeters.
With these adjustments, we’ve finished our shank. Now, it’s time to add the gem.
Video Lesson 1 and 2
Next Steps
Add and position the gemstone for your ring.
