Claw Prongs Ring
Lesson 23 of 38
Gems on Curve & Claw Basket
Sign in to access this lesson
This lesson is part of Modern Elegance: Fashion Jewelry Modeling, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Modern Elegance: Fashion Jewelry Modeling, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
7. Place gems along the curve

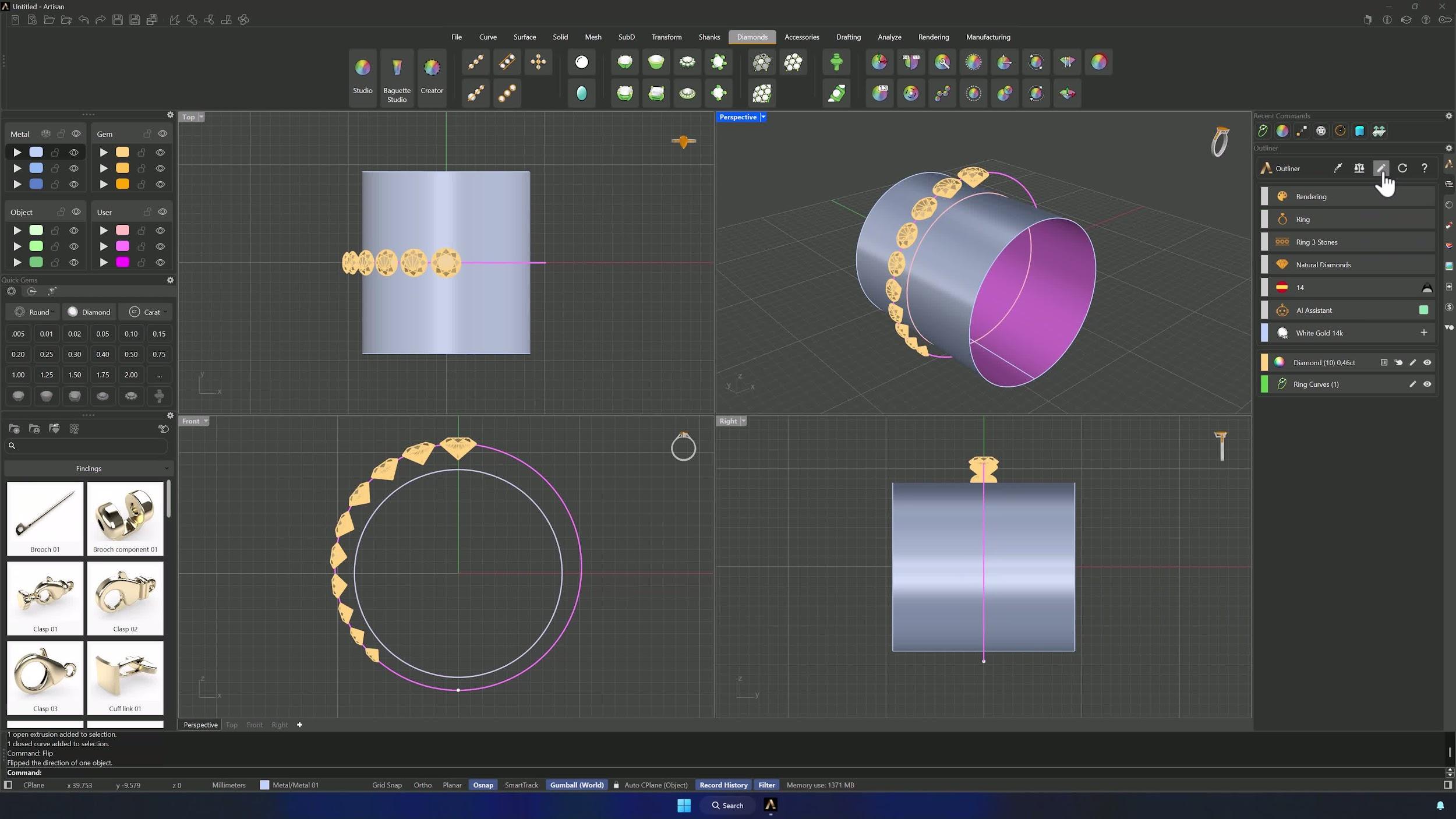

Open Advanced Gems on Curve and add the outer curve and the surface to their selectors: distance between gems 0.45 mm, alignment Center, starting gem size 3 and quantity 10. If the gems land on the wrong side, switch alignment to End; if the curve is inverted, rotate it 180° and Update. Accept once the 3 mm gem sits where it should.
8. Ungroup gems and prepare the basket reference

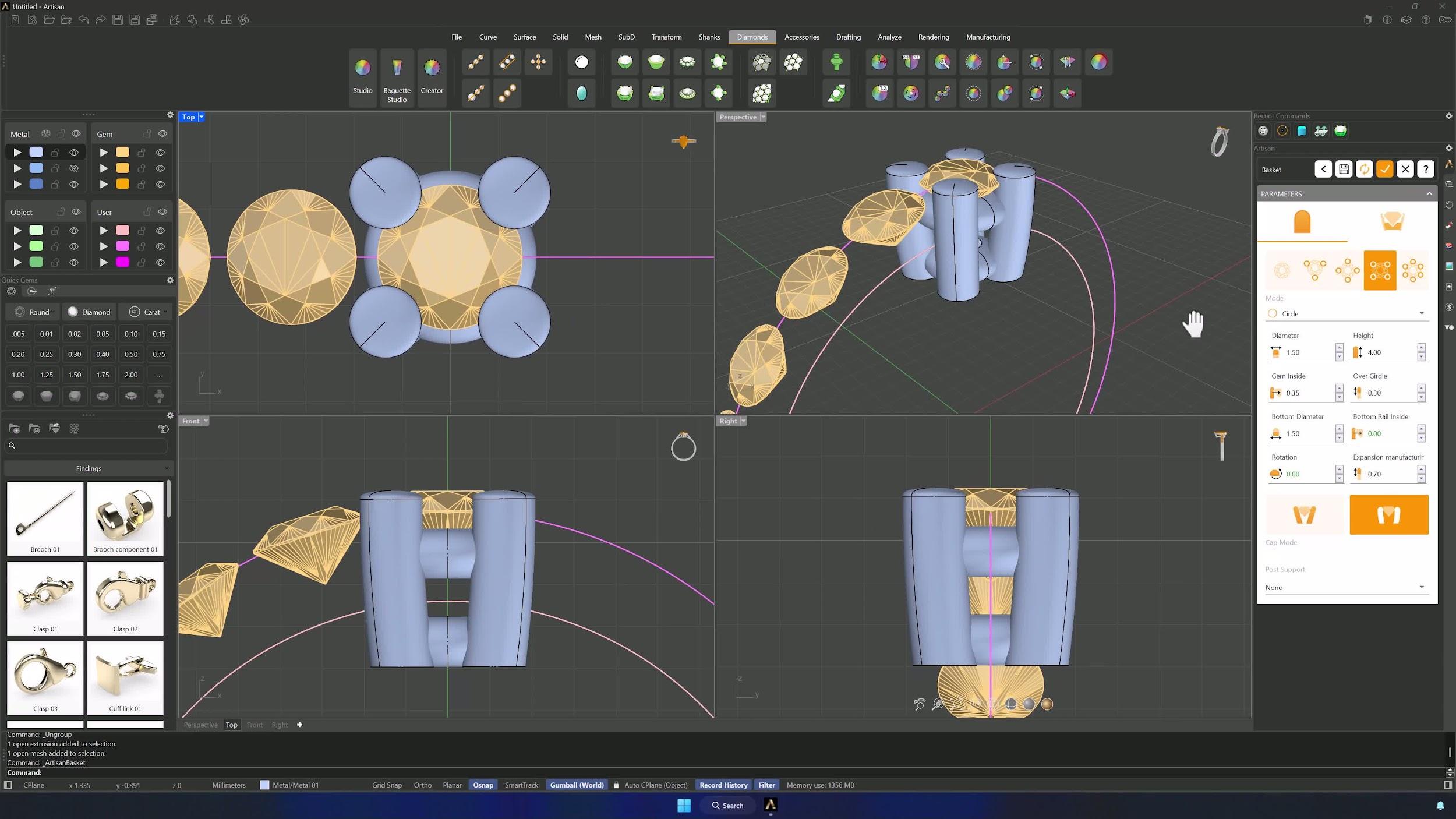

Ungroup the gems from the middle-mouse shortcut menu, park the reference surface on a hidden layer, and select the top gem. Diamond > Basket, then Edit without a preset.
9. Configure the basket prongs and rails

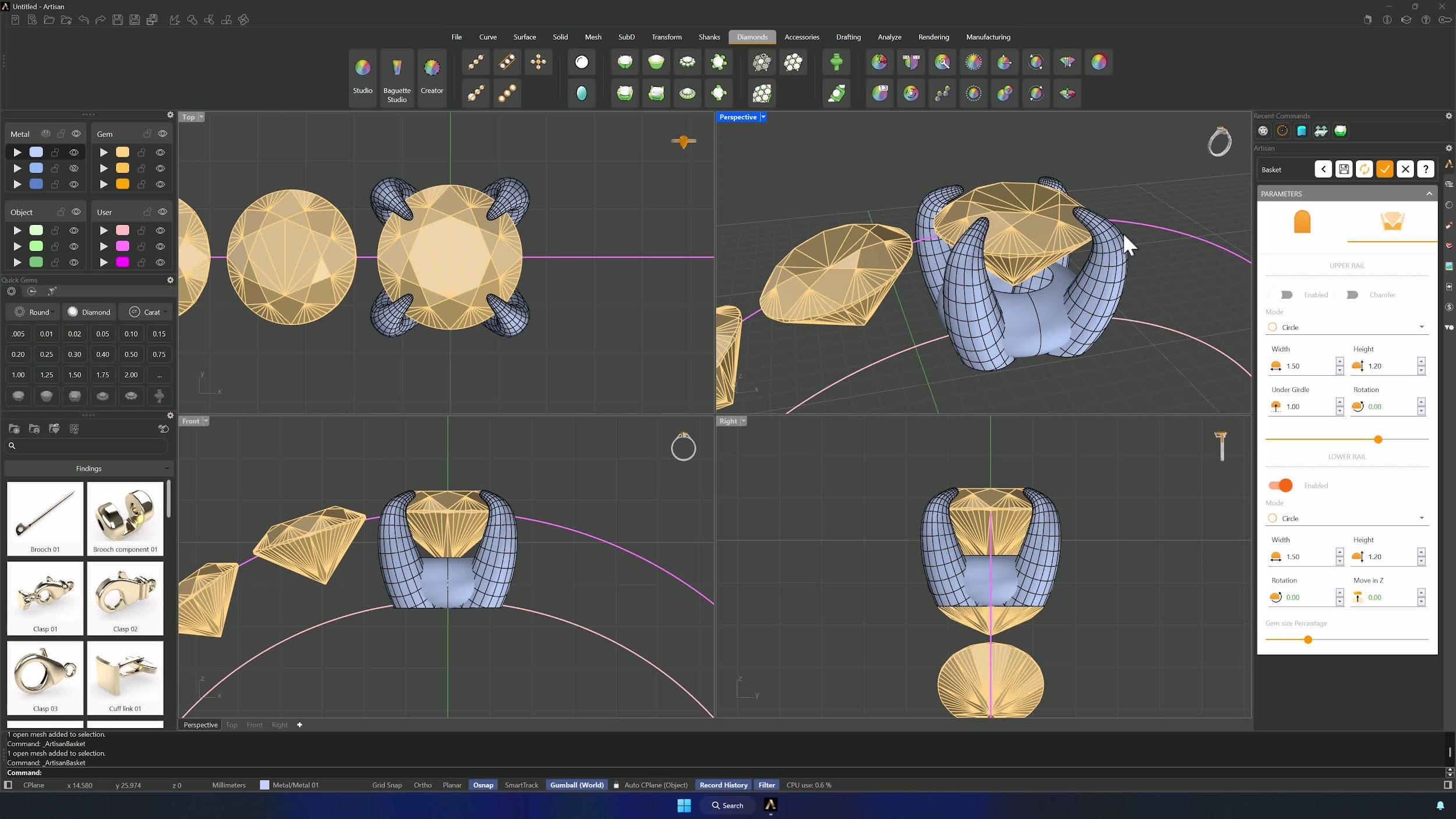

Switch Prongs Mode to Claw and deactivate the Top Rail for visibility. Prong parameters: diameter 1.23 mm, height 2.75 mm, over girdle 0.45 mm, gem inside 0.15 mm, bottom diameter 1.13 mm, bottom rail inside 0.40 mm. Claw parameters: gem inside 0.87, height −0.45, with tip direction at 15 and smoothness at 10.
10. Customize the rail profile and finalize the basket
Set the rail Mode to Custom with Profile 004: width 0.53 mm, height 1.79 mm, rotation 15, gem size percentage 75. Accept, and use Zoom Extents All to fit the model in every viewport.
