Objective: Learn how to join the two half circles into a single continuous infinity curve.
Blend Command

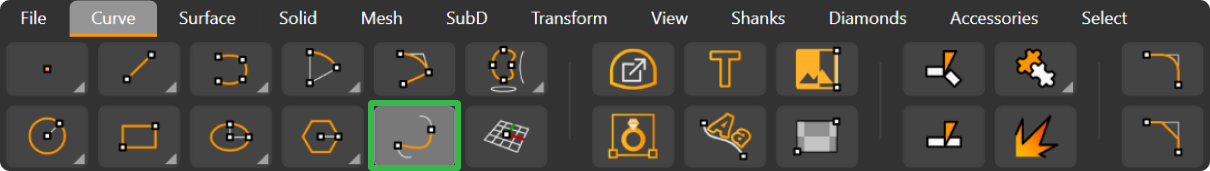

To create the infinity shape we’ll use the “Blend” command. Go to the “Curve” tab and click on it.
- Select the upper end of the left curve.
- Then select the lower end of the right curve.

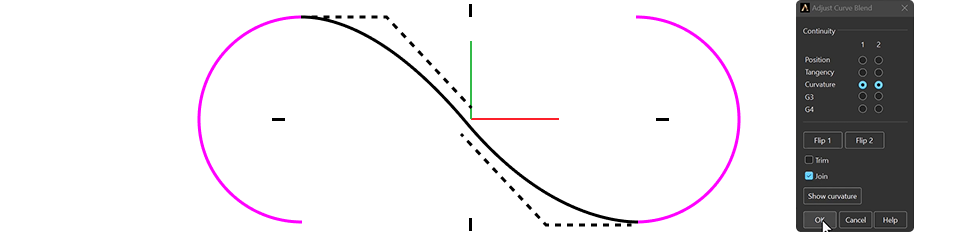

Blend Options
In the options window:
- Change the continuity to Curvature.
- Select Join so the curves are connected.
- Press OK to accept.
Second Blend

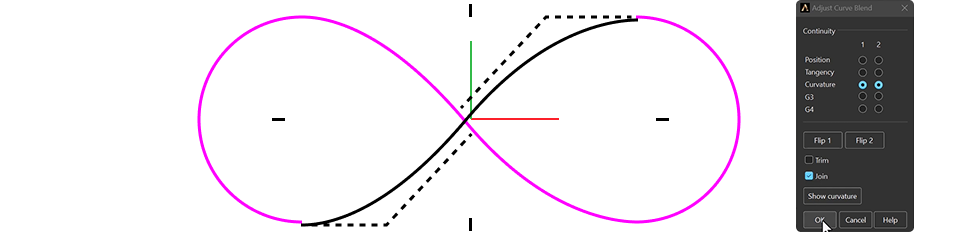

Use the “Blend” command again for the other two ends, with the same options.
Video Lesson
Next Step
The infinity-shaped curve is ready, but its control points still need some editing to give the pendant its volume.
