Curves to Stunning Snowflake
Lesson 18 of 62
Quick Polar Array
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to turn a single arm into the full snowflake outline.
Array the Curves

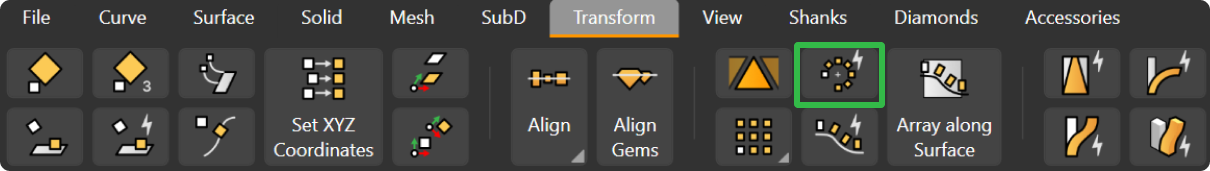

Select all the curves, go to the “Transform” tab and click on the “Quick Polar Array” command.

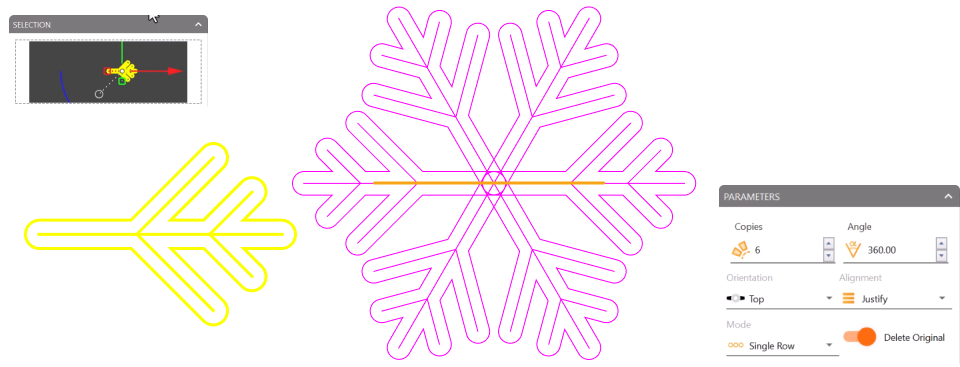

Add the curves to the selection and switch to the top view to check the result.
Final Boolean Curves

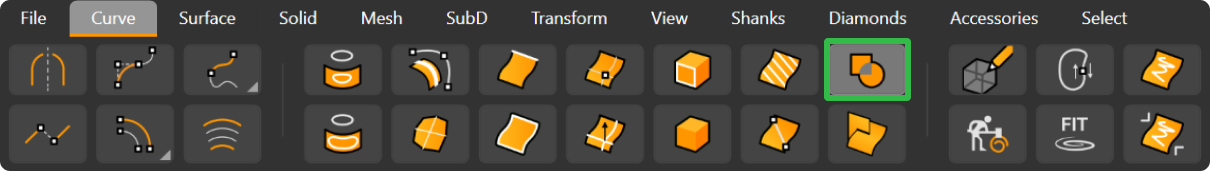

Now select all the outer curves and run another “Boolean Curves” operation.
- Make sure the Delete All option is enabled.
- Click on All Regions.
- Press Enter to complete the boolean operation.

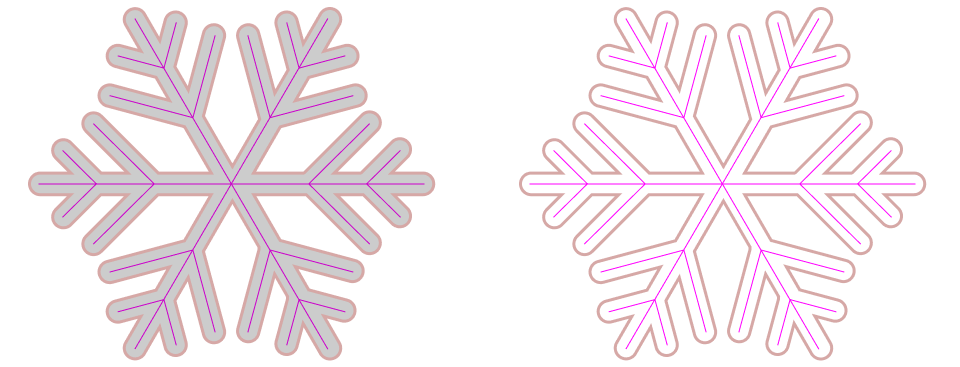

The six arms become one single closed outline, ready to be extruded.
Video Lesson
Next Step
Next, we’ll give the snowflake its thickness.
