Extrude the Base
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to extrude the outline into the metal base of the snowflake.
Align the Gumball
Go to the perspective view and select the outer shape. Adjust the gumball position again, aligning it with the world plane.

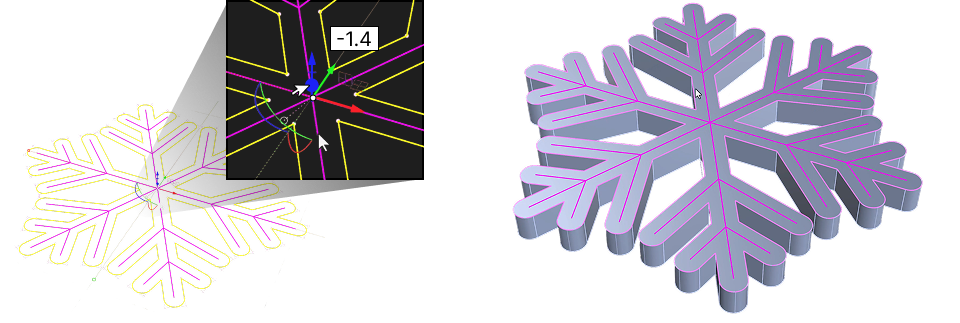

Extrude with the Gumball
Extrude the shape using the gumball:
- Click on the small blue sphere.
- Type
-1.4 mmin the command bar. - Press Enter.
Move to the Metal Layer
Move the resulting solid to the metal layer. The base of the snowflake is done.
Video Lesson
Next Step
With the base ready, we’ll add the gemstones.
