Moebius Diamond Pendant
Lesson 54 of 62
Join into a Single Curve
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to verify that the four arcs really became one closed curve.
Join

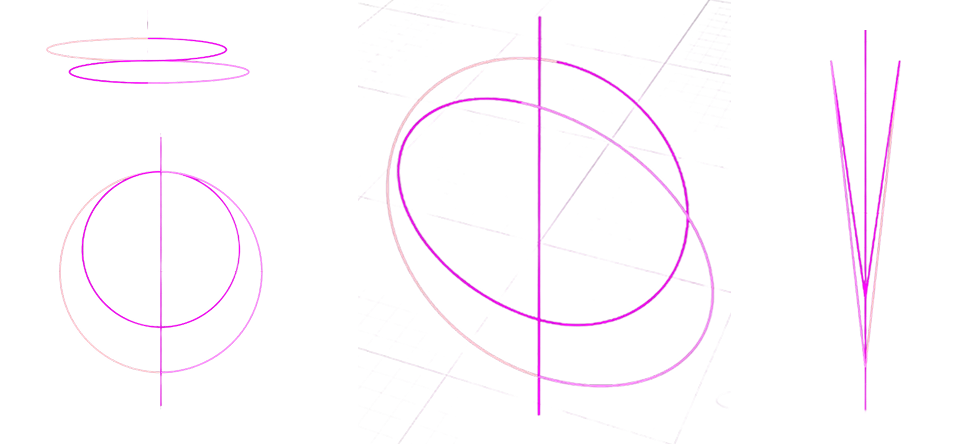

Switch back to the four view layout — the curve should already look like a single curve.

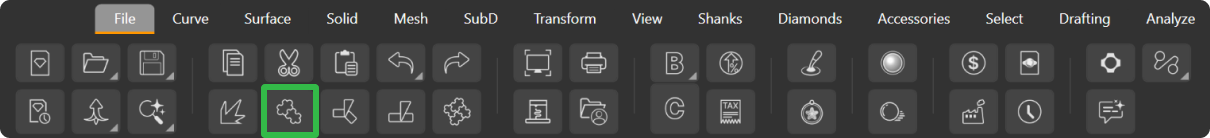

To make sure it actually becomes one, select them all and click on “Join” in the “File” tab.
Verify in the Command Bar

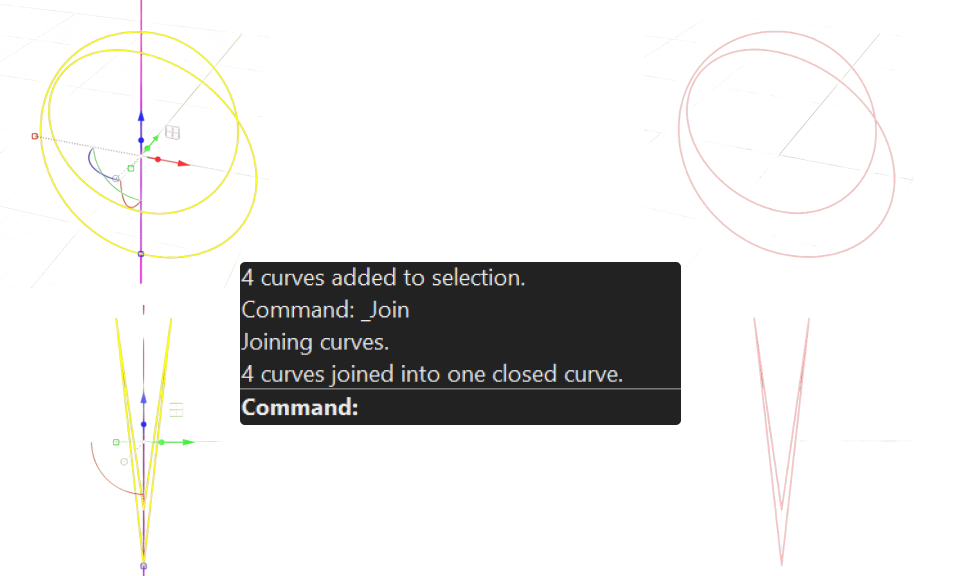

Check the command bar. It should report that four curves were joined into one closed curve.
If you don’t see this message, repeat the process, making sure to use the OSnap guides to position the curves precisely. If their end points are not at the exact same location, they won’t join.
Tidy the Viewport
Keeping the curve selected, move it to a different user layer and set a metal layer as the working layer. This way you can hide user layer 3 to remove anything unnecessary from view.
Video Lesson
Next Step
With a clean, closed curve we’ll create the rails of the pendant.
