Objective: Learn how to turn the half you modeled into the complete earring.
Center Line

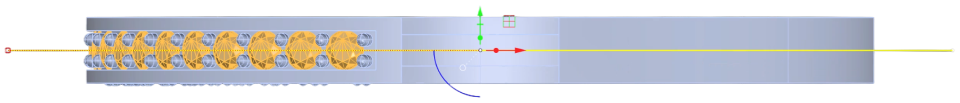

Since we’ve only modeled one side, we’ll mirror it. From the top view, draw a line through the center of the earring.
Trim the Solid

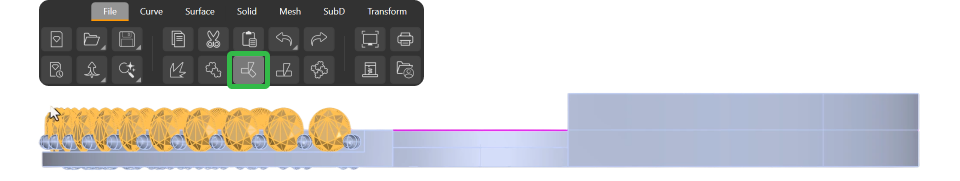

Select the curve and use the “Trim” command to cut the solid along that line.
Mirror the Metal

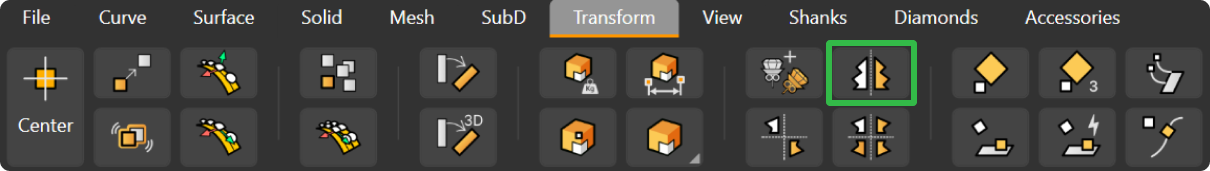

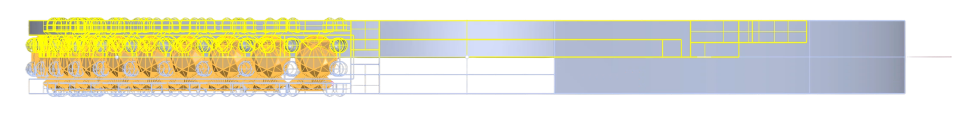

Select the cut part and mirror it:
- Set
0as the axis center. - Hold Shift and click on the left side.
The top part is now identical to the bottom.

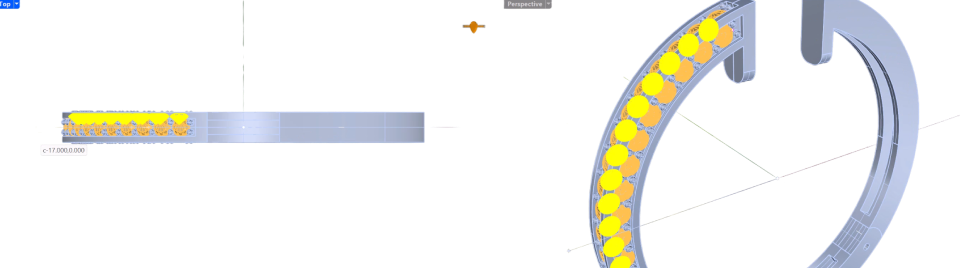

Mirror the Gemstones
Select the gemstones and repeat the operation: “Mirror” command, 0 as the axis, hold Shift and click on the left side.
Video Lesson
Next Step
The model is complete except for the clasp. Next, we’ll import it, cut its insertion slot and build the hinge pin.
