Twist Bezel Ring
Lesson 44 of 62
Curve for the Side Gems
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to extract and trim the curve that will carry the side gems.
Extract Isocurve

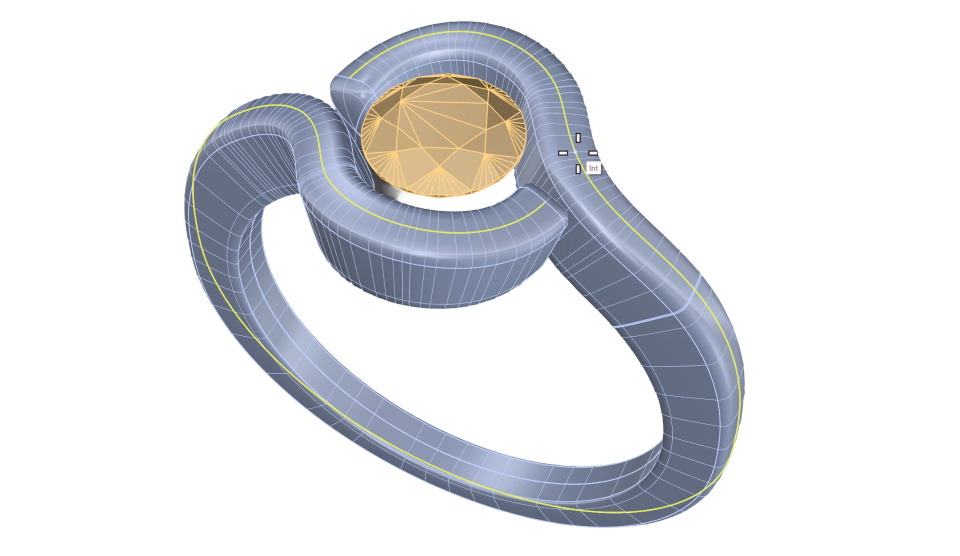

Go to the “Curve” tab and use the “Extract Isocurve” command.
Select the central point of the shank to create a curve.
Split the Curve

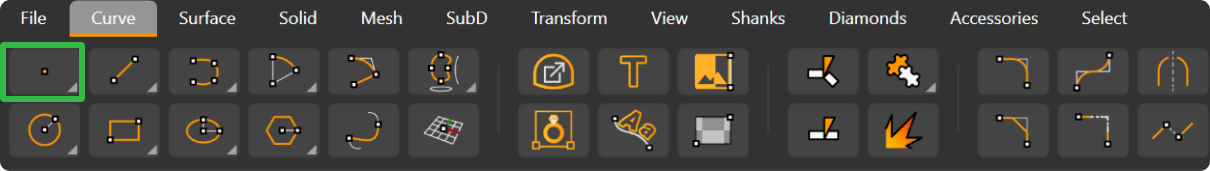

Use the “Point” command
to create a point where the curve should end.

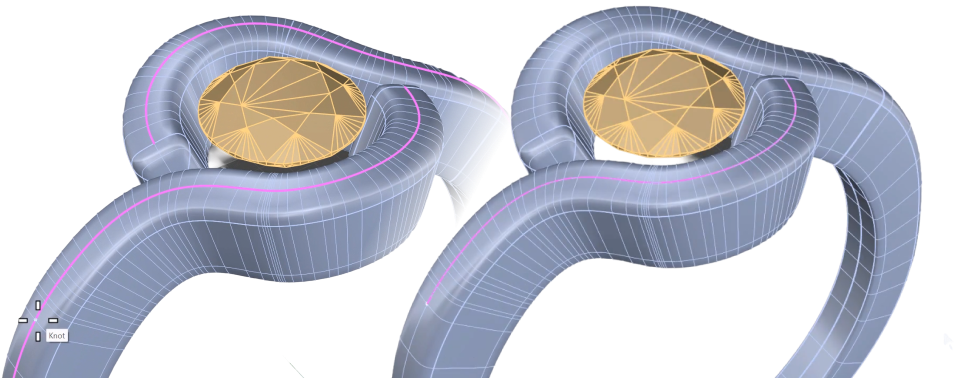

- Select the curve.
- Click on the “Split” command and use the point as the cutting object.
- Press Enter to cut, and delete the remaining part of the curve.
Mirror Opposite

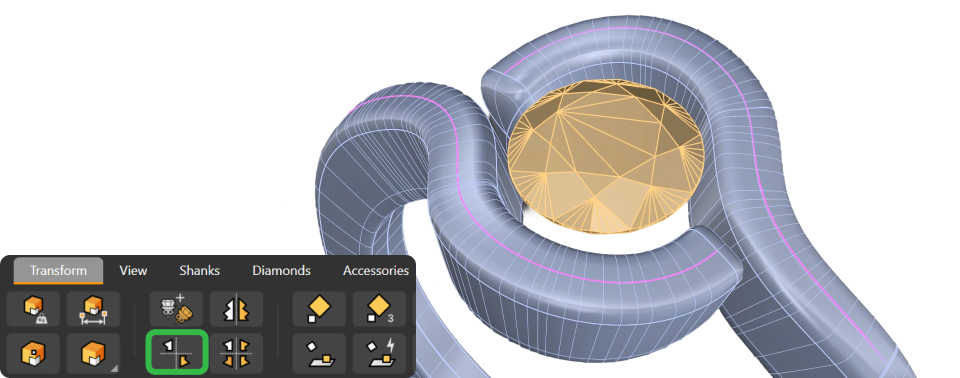

Select the curve and go to the “Transform” tab to use the “Mirror Opposite” command. You’ll see that the element is symmetrical.
Video Lesson
Next Step
Once the symmetry is confirmed, we’ll place the gems along the curve.
