Twist Bezel Ring
Lesson 41 of 62
Center Gem with Gem Studio
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to create and position the main stone of the ring.
Gem Studio

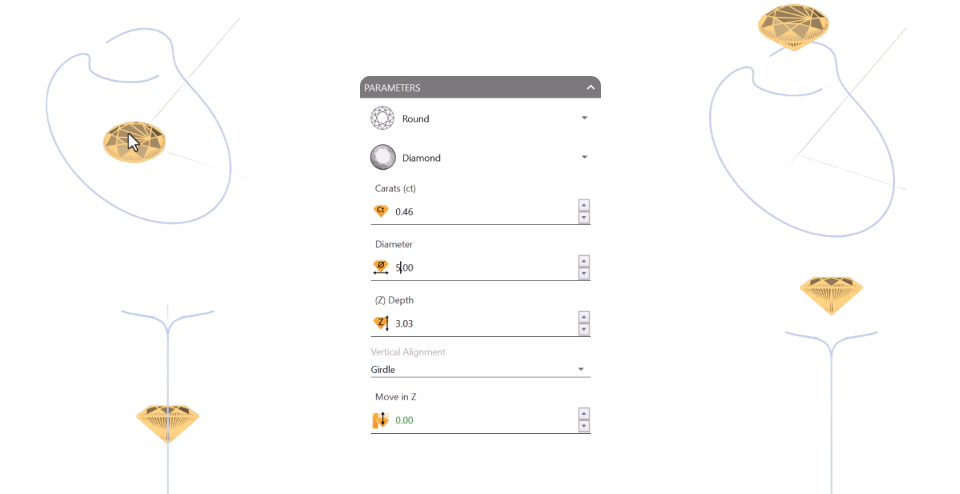

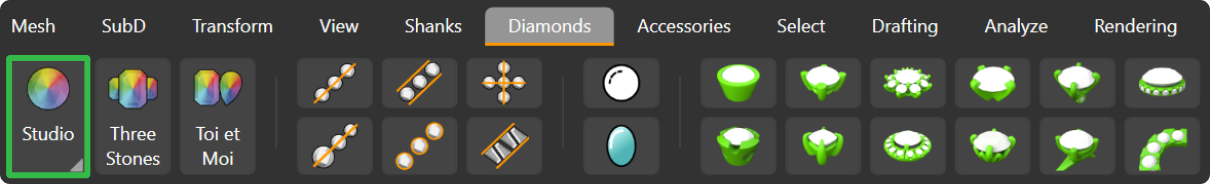

Go to the “Diamond” tab and use the “Studio” command. In the panel:
- Set the diameter to
5 mm. - Click on Add, then accept the command.
Position the Gem
If the cylinder is a solid, select it and hide it by typing hide in the command bar.
Use the gumball to move the gem to the top — you can fine-tune this later. Show the cylinder again by typing show in the command bar, and position the gem right above it.
Video Lesson
Next Step
With the gem in place, we’ll start building the shank profiles.
