Cap

Cap

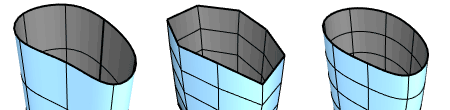

The Cap command fills planar holes in objects with planar faces.

It is caplable of capping surfaces, Meshes and SubDs.

Command-line options (Mesh/SubD only)

-DeleteInput: Specify if the input object will be deleted.

-Crease

  • Yes: Do not weld the vertices along the cap boundary.

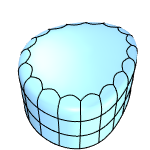

  • No: Welds the vertices along the cap boundary.
  • Triangles
    • Yes: Fills a planar opening in a SubD or mesh with triangle faces.
  • No: Fills a planar opening in a SubD with a single face, or in a mesh with an n-gon.

Aditional Notes

Caps will always be made up of triangles when:

  • A SubD or mesh cap has a hole (an inner boundary).
  • Any part of the outer boundary of a SubD cap is not convex.

You can use the MergeFaces command to combine the triangles into a single face as needed.

For more information, please refer to the Rhino documentation.
