Add the Magic: Details that Sell

Turn every design into a masterpiece with the right details. From a captivating name and enticing description to setting the perfect price and marking your featured items—these small touches make a big difference.

How to define the product details?

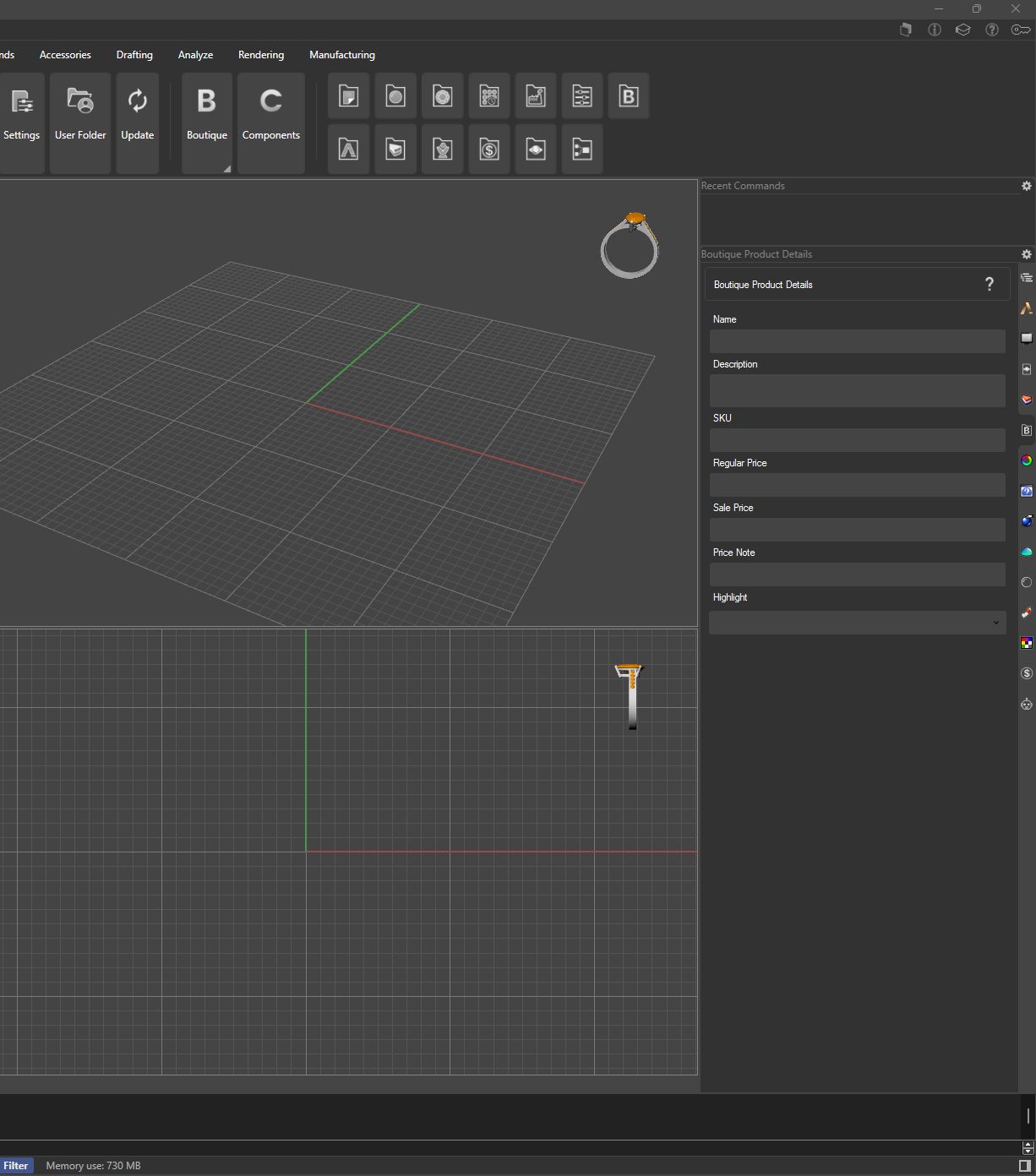

To create your own Boutique or Components collection, you must start by preparing your .3dm files with a minimum amount of information entered in the Boutique Panel, available from the File menu in RhinoArtisan. In this panel, you can fill out the following details for each design:

• Name (required)
• Description (required)
• SKU
• Regular Price
• Sale Price
• Highlight (to mark featured items)

Only the Name and Description are mandatory, as these will appear under each item’s image when browsing the collection.

You’ll also need a cover image for your collection:

• The image must be named Collection.jpg for Boutique collections or Components.jpg for Components collections.
• It must be placed in the same folder as the .3dm files.

Additionally, you can provide individual preview images for each design:

• Each image must have the same name as its corresponding .3dm file.
• If no image is provided, RhinoArtisan will automatically generate one by capturing a viewport screenshot of the model.

If you want to offer multiple metal color options (such as white, yellow, or rose gold) for a design, you can activate the Multi-Metal Selector during the collection creation.
To enable this feature:

• Include additional images named by adding a suffix to the .3dm filename:
  • W for White
  • Y for Yellow
  • R for Rose
• For example, if a design is named BE1001, you should provide:
  • BE1001 (main image)
  • BE1001W (white metal version)
  • BE1001Y (yellow metal version)
  • BE1001R (rose metal version)

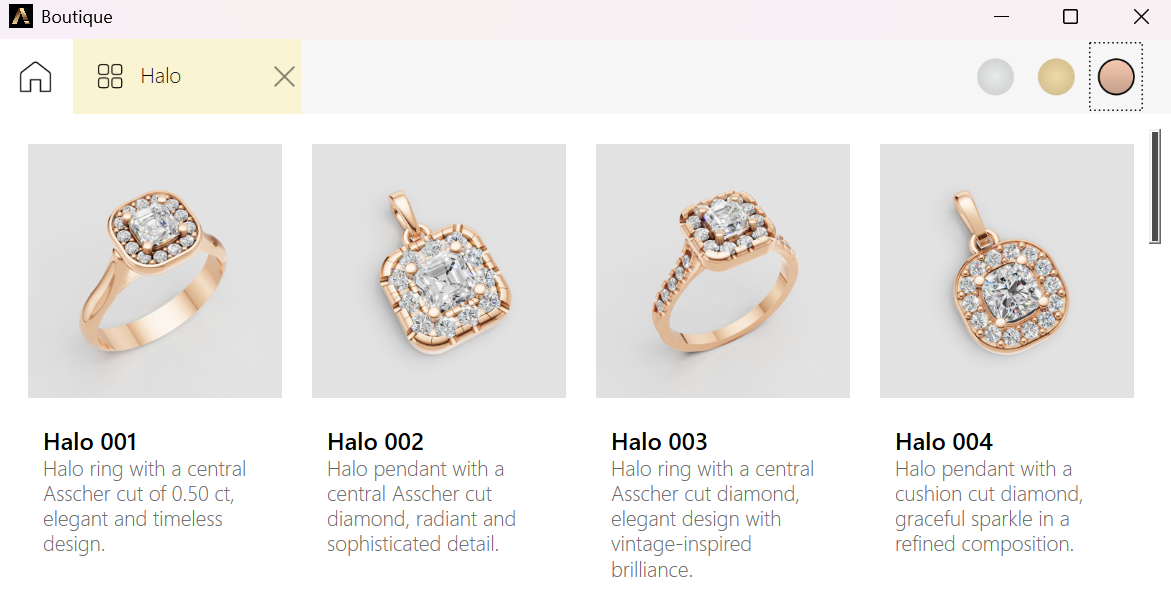

This allows users to switch between metal color options through a color selector located in the top right corner when viewing the collection.
