Merge Faces

Merge Faces

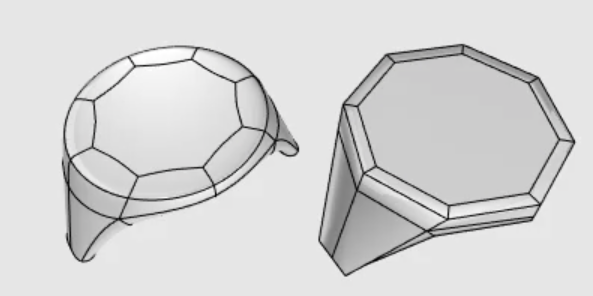

The MergeFaces command merges a connected set of SubD or mesh faces into a single face.

Input

  • SubD Face, Edge, Vertex
  • Mesh Face, Edge, Vertex

How faces are merged:

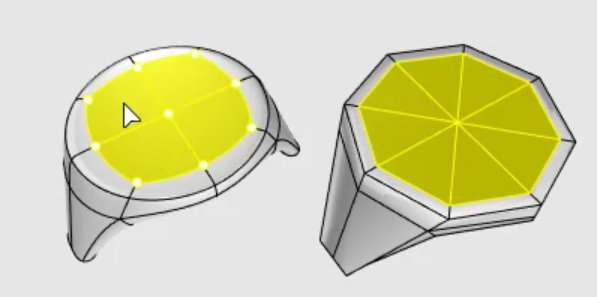

  • If a vertex is selected, the faces around the vertex are merged into a single face.
  • If an edge is selected, the faces on either side of the edge are merged into a single face.
  • If a collection of faces is selected, they are partitioned into subsets. Each subset is merged into a single face.
  • Faces separated by a SubD crease or an unwelded mesh edge cannot be merged. Use the RemoveCrease command to remove the crease or unwelded edge before merging the faces.
  • Use Ctrl(CMD)+Shift+Click to select vertices or edges and press Delete to merge the surrounding faces into a single face. Deleting faces with Delete will leave holes.

For more information, please refer to the Rhino documentation.
