Objective: Create and customize a bezel setting for the top gemstone.

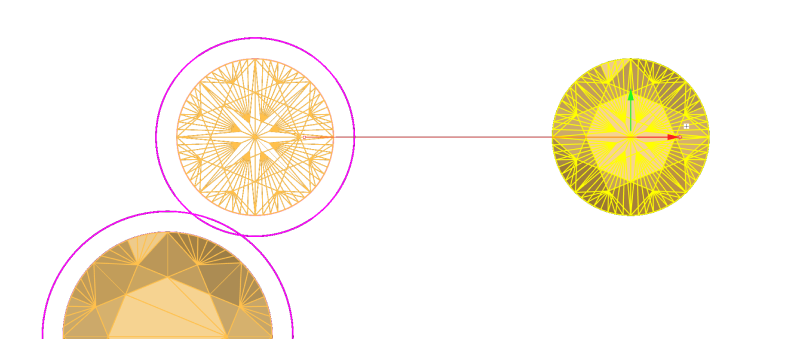

Step 1: Copy the top gemstone to create a bezel that will be used for the rest of the set.

Step 2: Go to the Diamonds Tab, Select the gemstone and use the Bezel command.

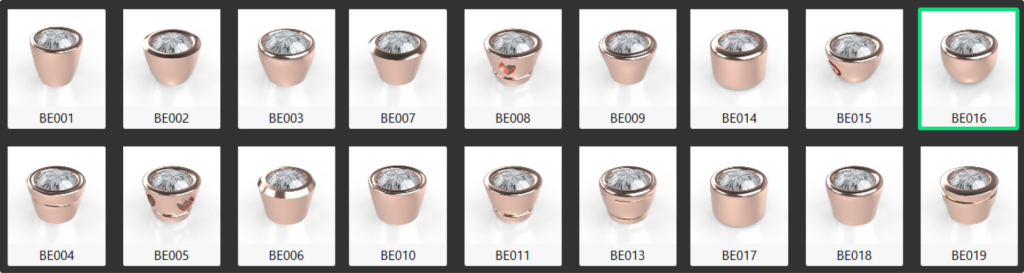

Step 3: Choose the BE016 model and click Edit.

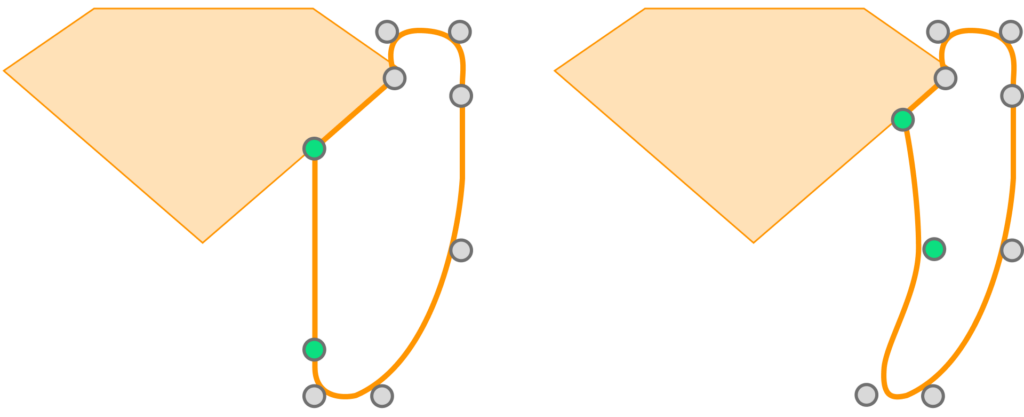

Step 4: Edit the profile curve to reduce the weight by adjusting two points as shown in the reference image.

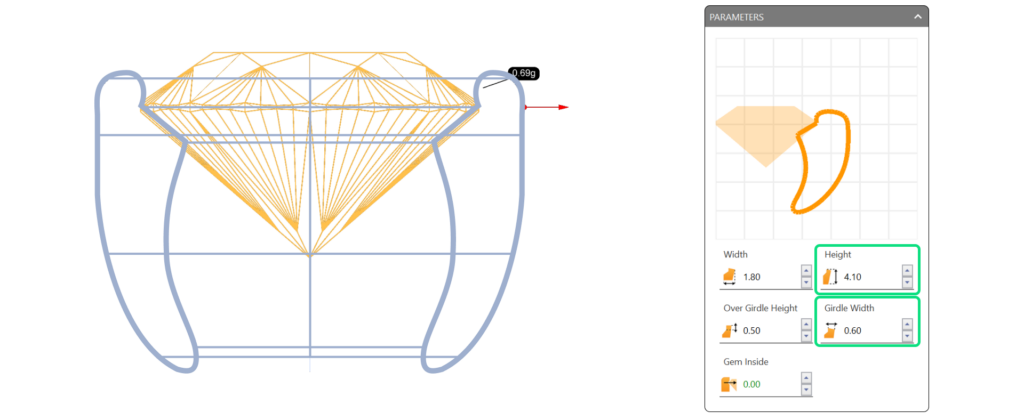

Step 5: Adjust the height to 4.1 millimeters and the girdle width to 0.6 millimeters.

Step 7: Save the bezel and gemstone by creating a new folder in the Curator panel.
- Click on Add folder

- Name the new folder
- Select the gem and basket
- Click on Save on Curator

Video Lesson
Next Step: Apply the bezel style to all gems.
