Advanced Ring
Lesson 25 of 58
Shank Profiles
Checking access…
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Refine the profiles of the shank.

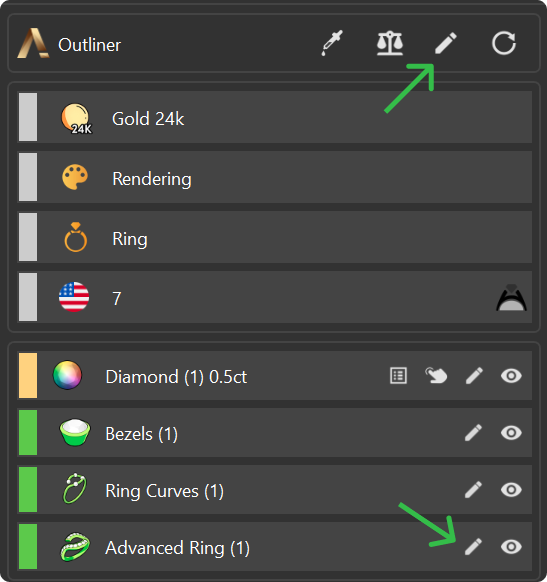

**Step 1:**Select the shank, then click on Edit and go to the ‘Profiles’ tab.

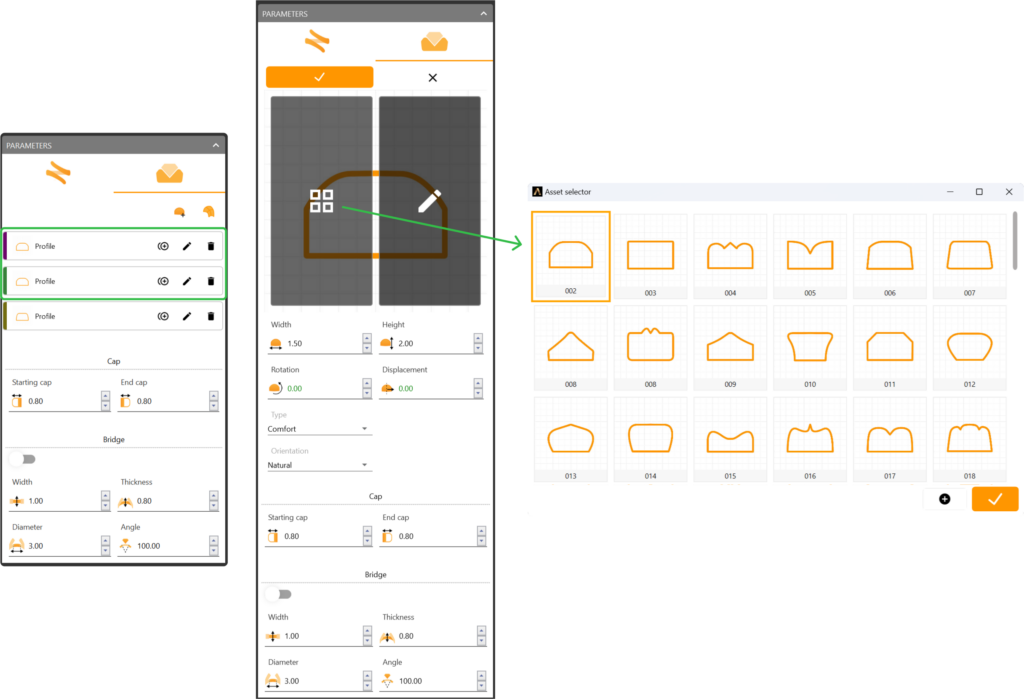

Step 2: Adjust the first and second profiles.
- Change the curve to profile 002 for both.
- Keep the default parameters.

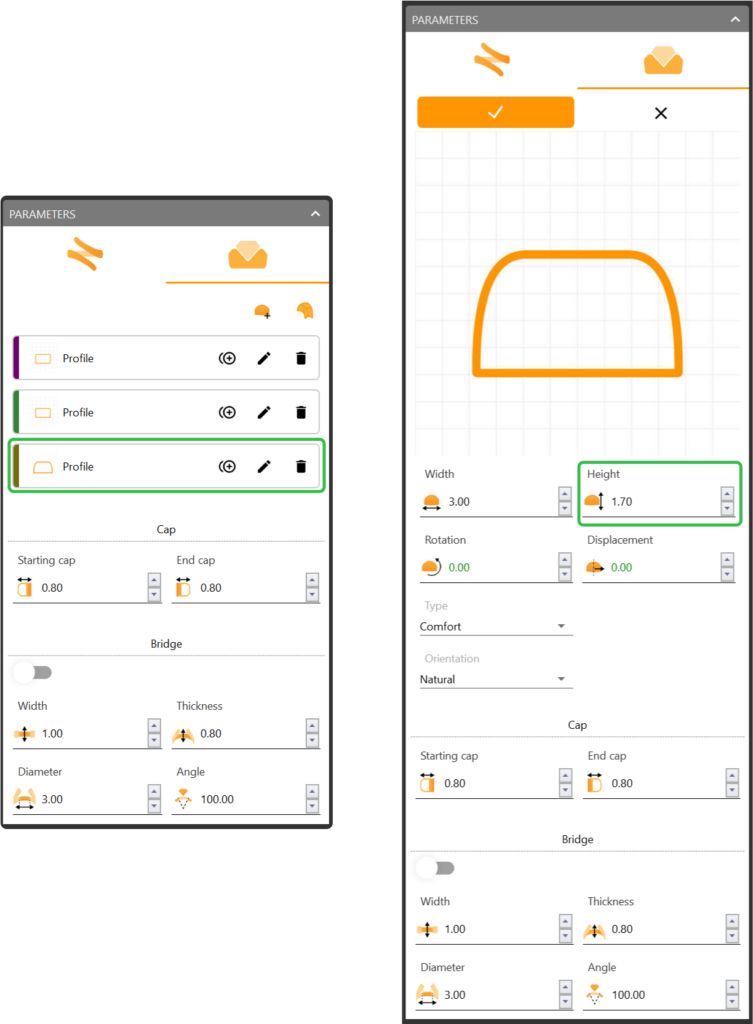

Step 3: For the third (bottom) profile
- Leave the curve unchanged but adjust the height to 1.7 millimeters.
Video Lesson
Next Step: Add final details to the bezel.
