Objective: Create and adjust the bezel setting for the marquise stone.
Step 1: In the “Diamonds” tab, select the Gem and then the “Bezel” command.

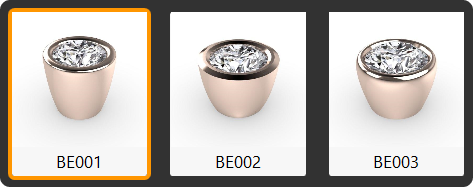

Steps 2: Choose the BE001 model and click “Edit.”

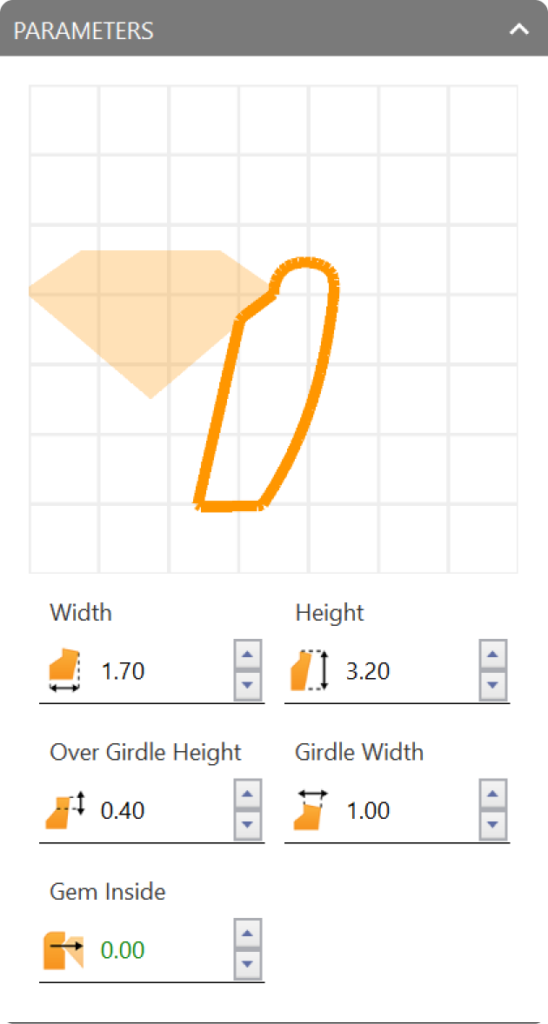

Step 3: Adjust the following parameters
- Height: 3.20 millimeters.
- Over Girdle Height: 0.40 millimeters.
- Gem inside: 0.

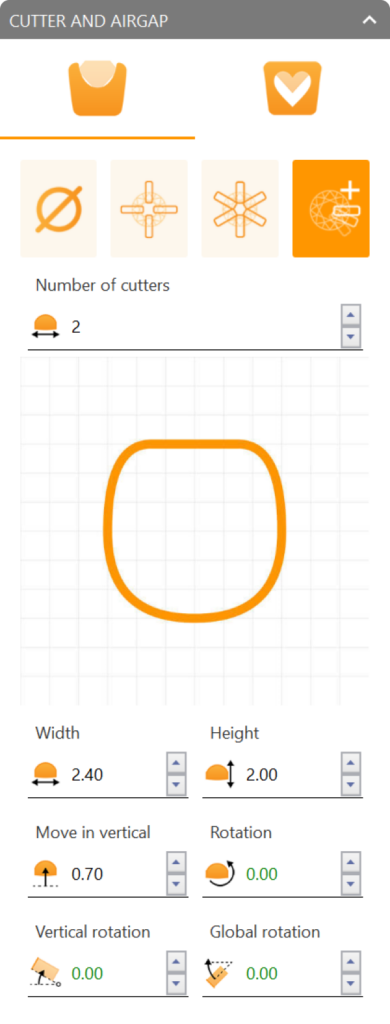

Step 4: In the “Cutter and Airgap” settings, select the fourth cutter option, set the number of cutters to 2, and choose profile curve 001.
Adjust additional parameters:
- Width: 2.40 millimeters.
- Move in vertical: 0.70 millimeters.
Video Lesson
Next Step: Rotate the gem and bezel to start creating the fantasy design.
