Fantasy Ring
Lesson 14 of 58
Quick Array Polar
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Duplicate the gem and bezel using a polar array.

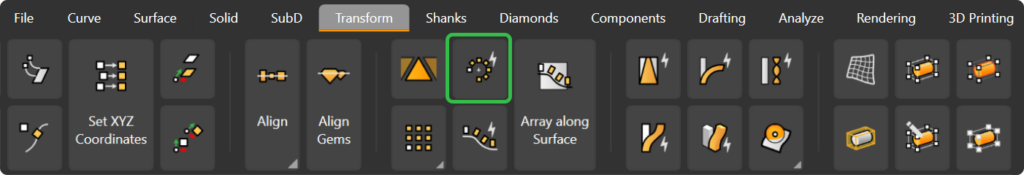

Step 1: To finish this part, we will use the Quick Array Polar command. Select the model and press the command button in the transform tab.

Step 2: Click on the panel to add our element.

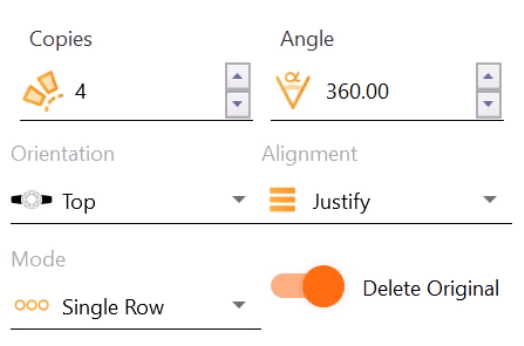

Step 3: Change the orientation to top and the number of copies to 4, then accept.


Video Lesson
Next Step: Create the custom cathedral shank for the ring.
