Advanced Ring
Lesson 23 of 58
Bezel Setting
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

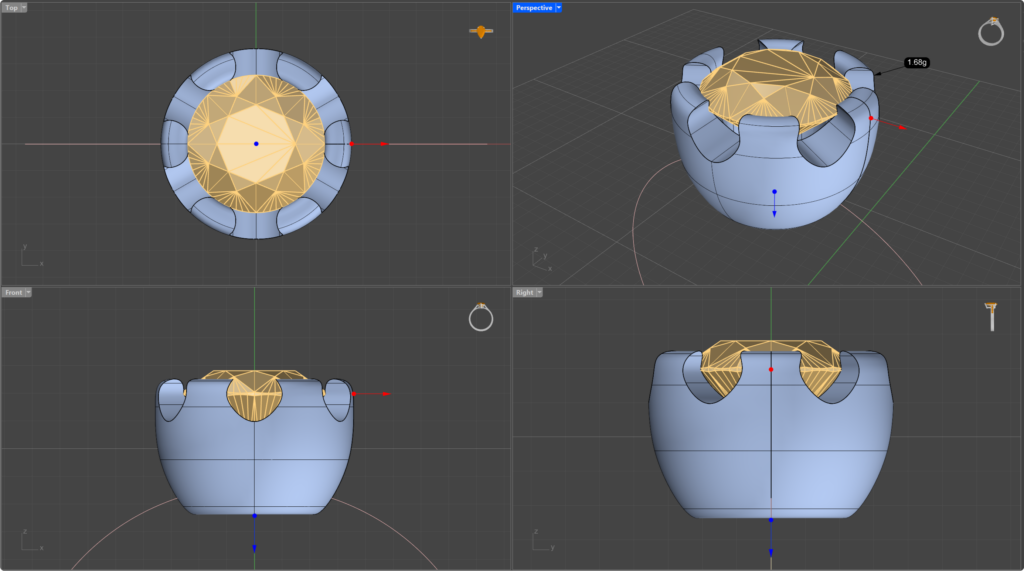

Objective: Design and edit the bezel for the center gem.

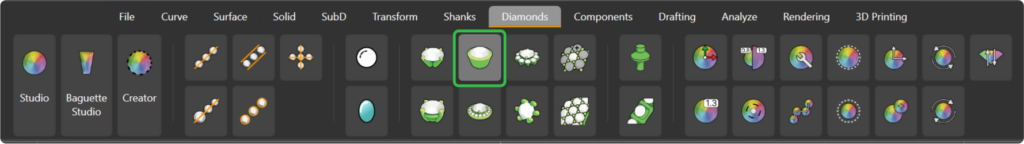

Step 1: Select the gem and go to the “Diamonds” tab. Click on the “Bezel” command.

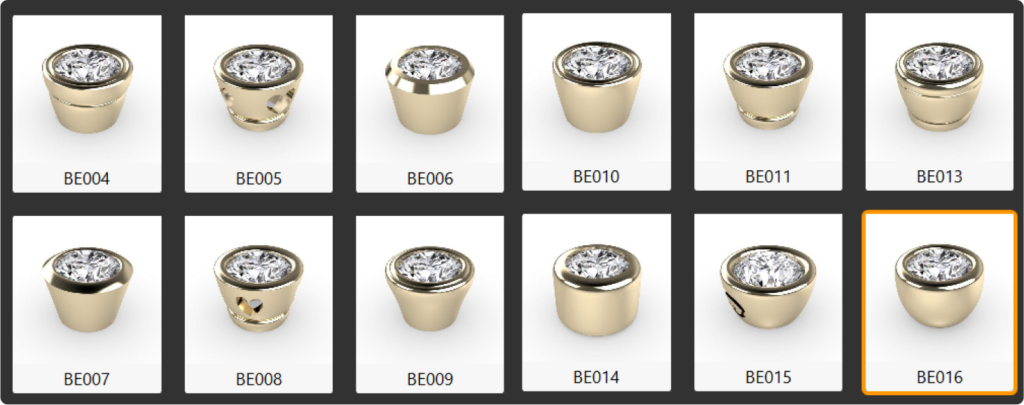

Step 2: Choose the BE016 model and click “Edit.”

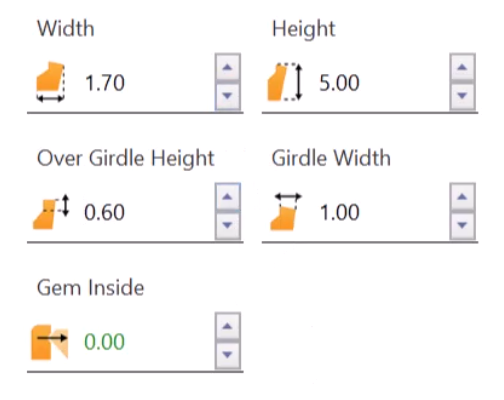

Step 3: Adjust the following parameters:
- Width: 1.7 millimeters.
- Over Girdle height: 0.6 millimeters.

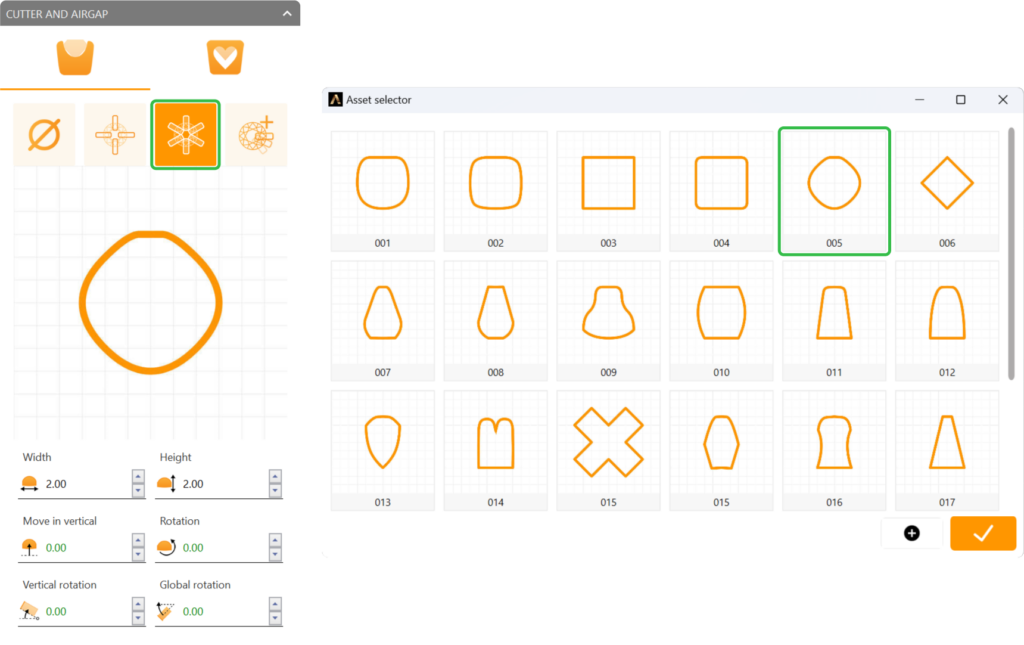

Step 4: In the “Cutter and Airgap” options:
- Select the third option.
- Use profile curve 005.


Video Lesson
Next Step: Begin creating the ring shank.
