Fashion Ring
Lesson 7 of 58
Edit Profile Parameters
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

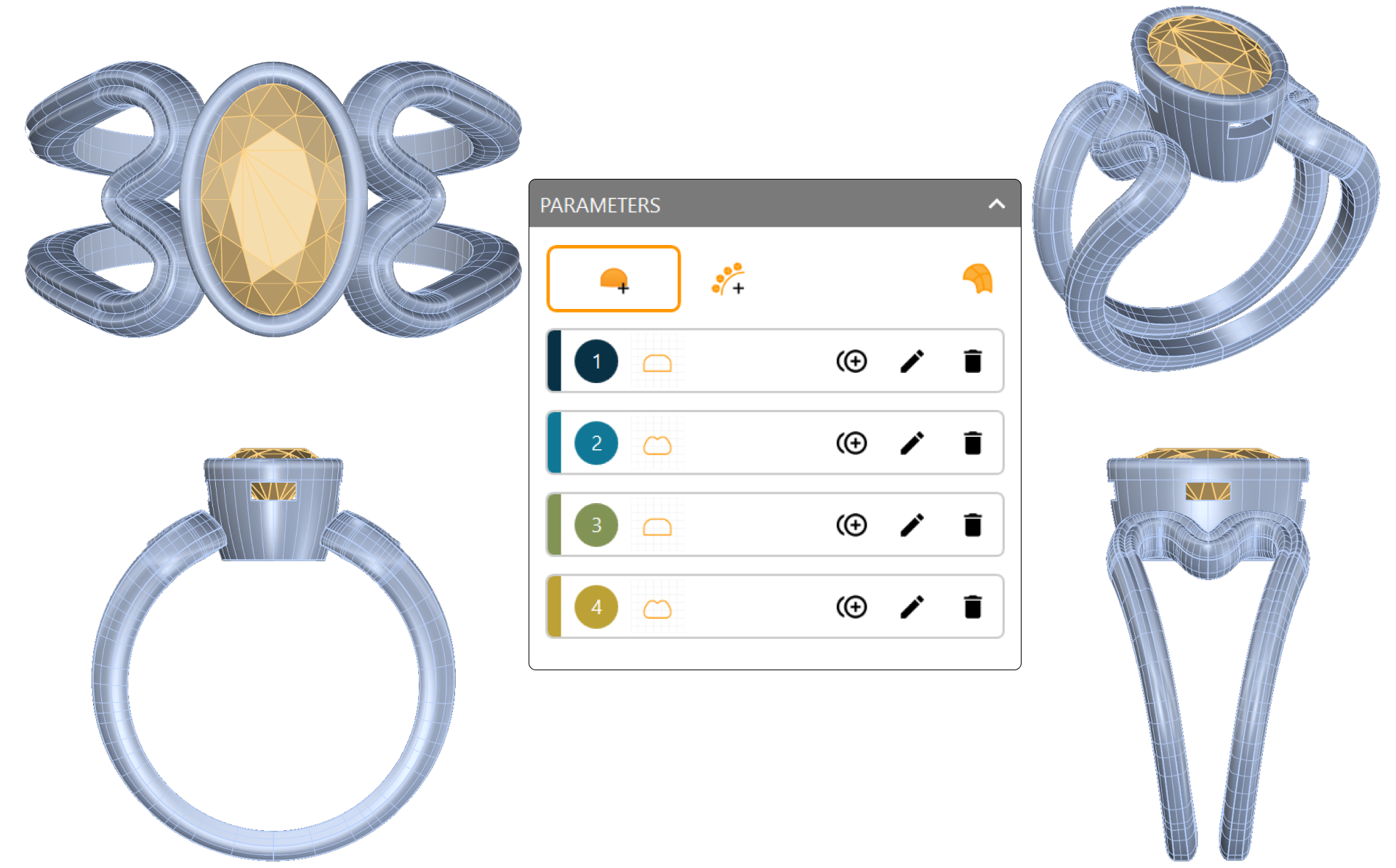

Objective: Refine the design by adjusting the profile parameters.

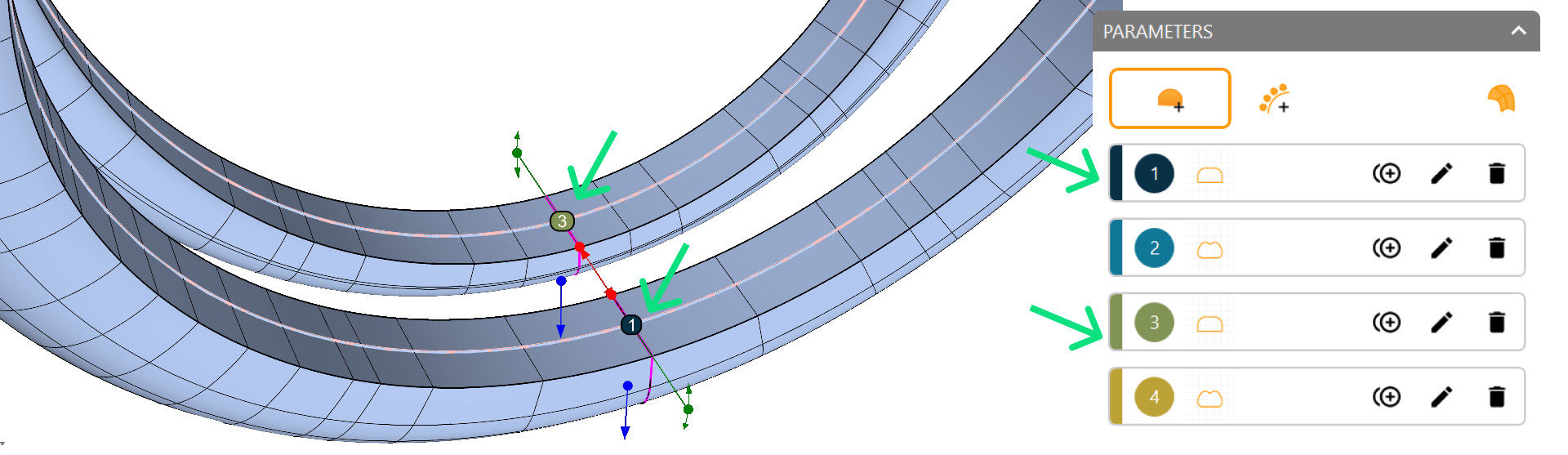

Step 1: Take note of the lower profiles’ numbers and edit them.

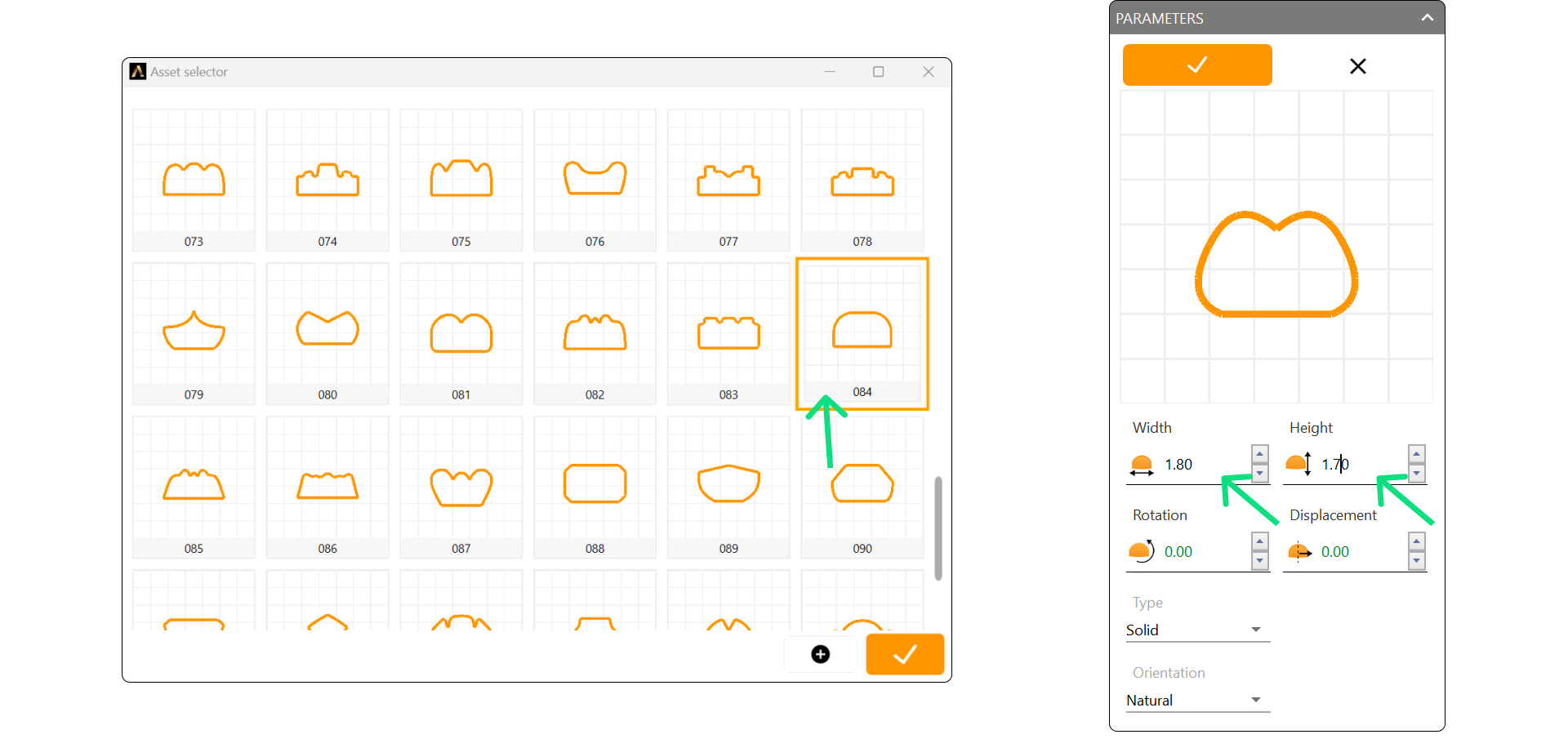

Change the profile curve to number 084, then adjust the width to 1.8 mm and the height to 1.7 mm.

Step 2: Do the same for the other lower profile: change the profile to 084 and then adjust the width to 1.8 mm and the height to 1.7 mm.

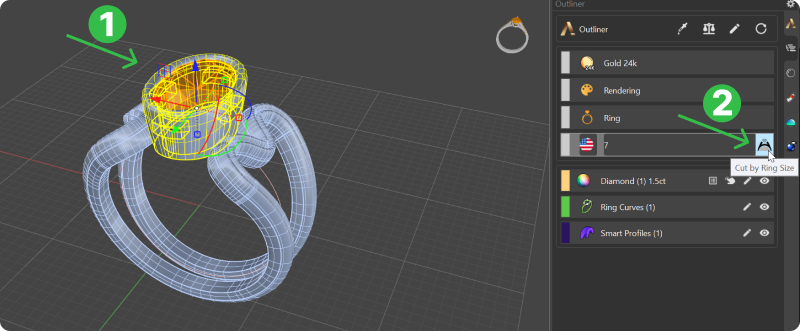

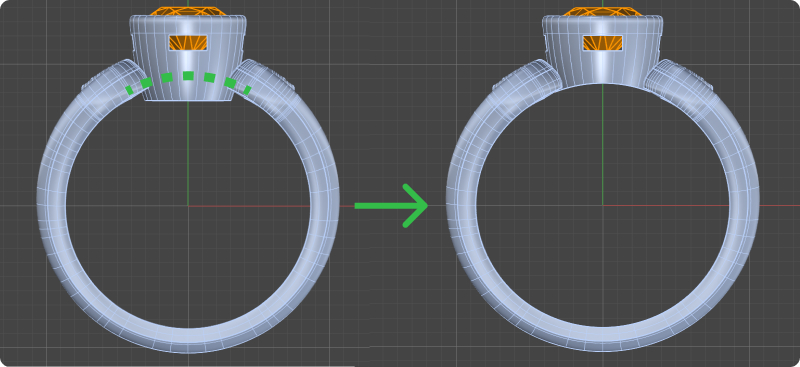

Step 3: Cut the bezel to match the height of the shank curve by selecting the “Cut” icon in the “Outliner.”
- Select the bezel and then click on the “Cut” icon in the outliner.


Video Lesson
Next Step: Apply materials and render your finished fashion ring.
