Bezel Set - Ring
Lesson 49 of 58
Quick Flow
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Step 1: To continue, we will ungroup all the curves. Select the curves and type Ungroup in the command bar.

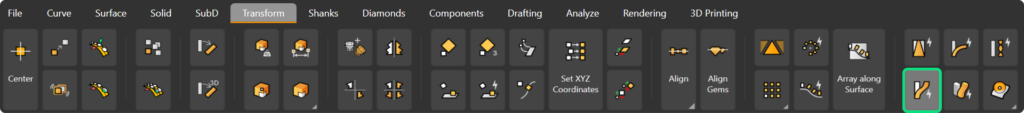

Step 2: Now, go to the Transform tab and click on the Quick Flow command.

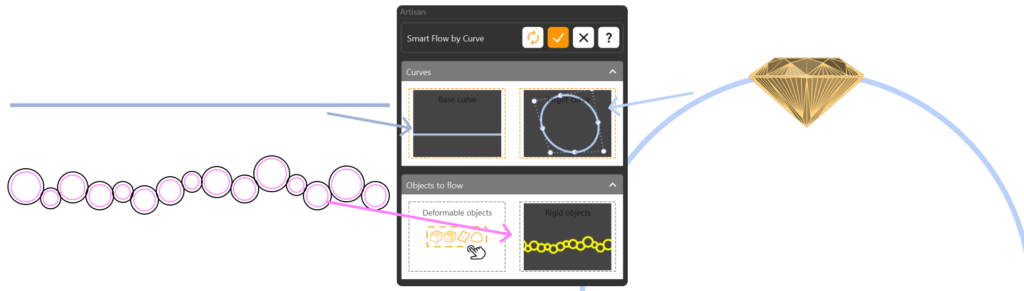

Step 3: Select the inner curves of the pattern and click on Rigid Elements in the panel, as we don’t want the curves to deform.

Next, choose the line as the base curve and the outer curve as the target curve. The curves are now properly positioned on the ring.
Video Lesson
Next Step: Add the gems and bezel settings to complete the model.
