Advanced Ring
Lesson 22 of 58
Gem Studio
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Place a half-carat gem on the curve.

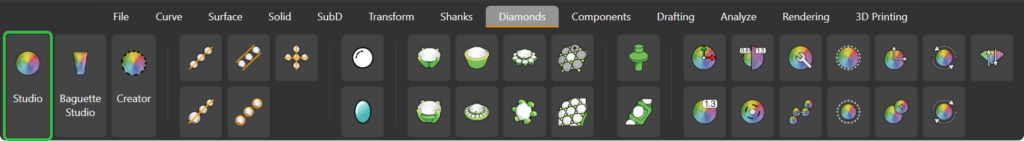

Step 1: Run the “Gem Studio” command.

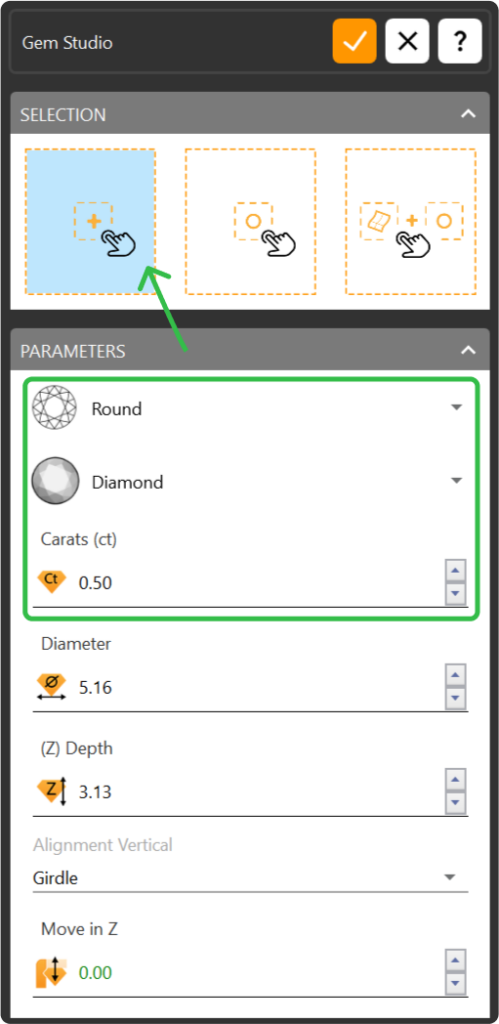

Step 2: Create a half-carat, round stone. Click “Add.”

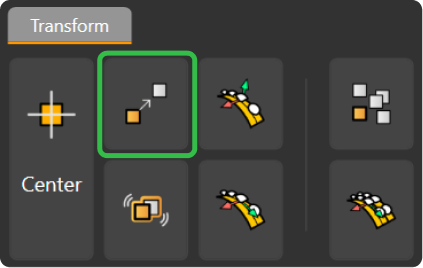

Step 3: In the “Transform” tab, use the “Move” command to position the gem.

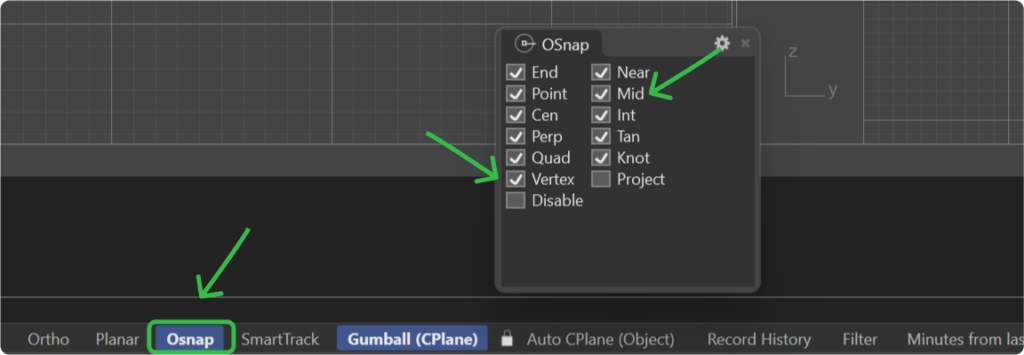

Step 4: Ensure “Vertex” and “Mid” options are enabled in the Osnap panel.

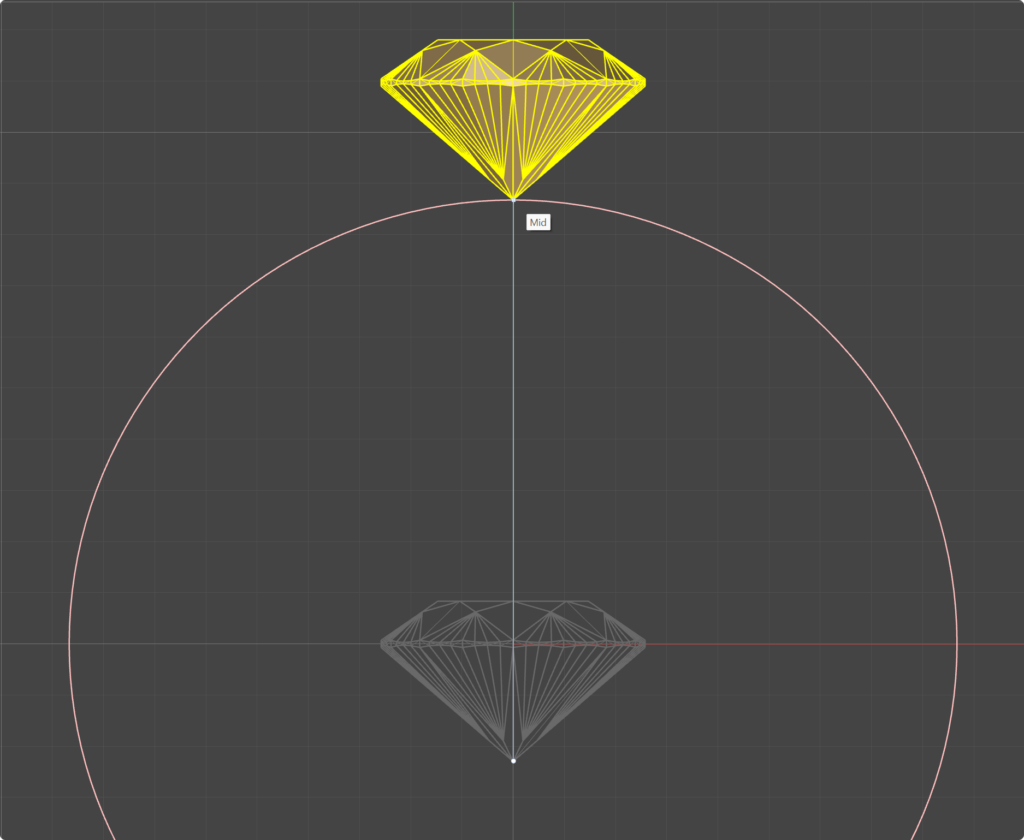

Step 5: Click the bottom of the gem and Place the gem on the top point of the curve.

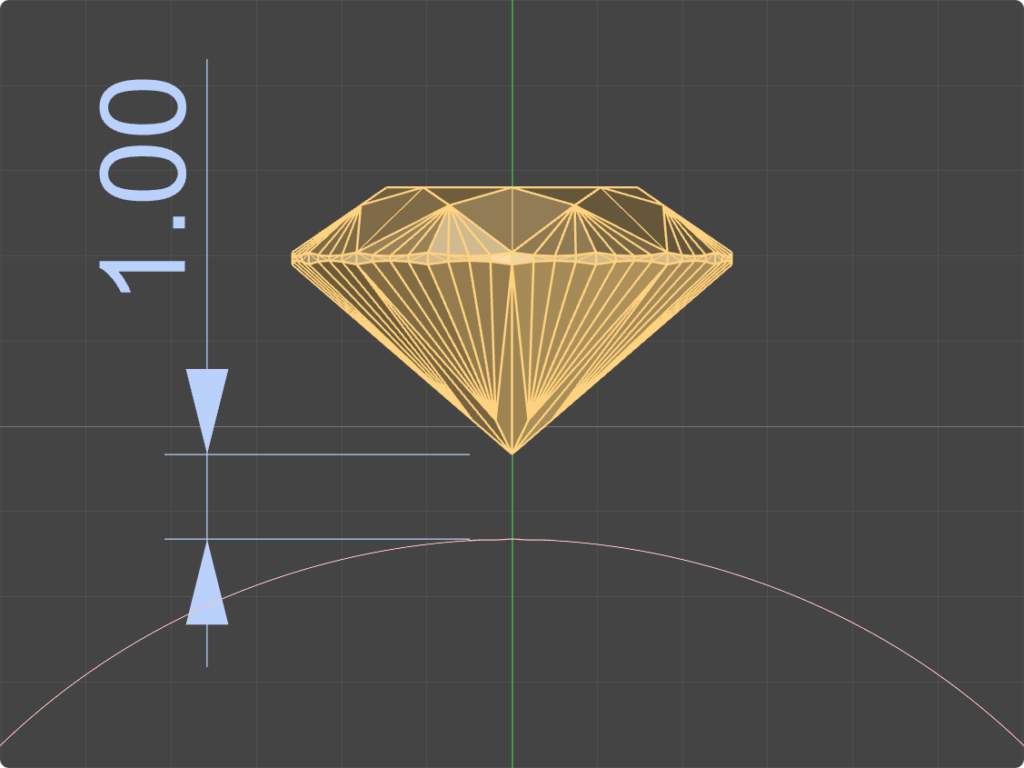

Step 6: Use the Gumball tool to move the gem 1 millimeter upwards.
Video Lesson
Next Step: Create a custom bezel for the gem.
