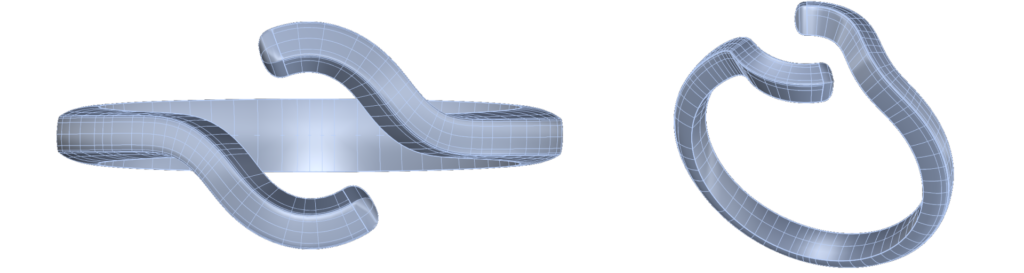

Objective: Build the ring shank using the advanced command.

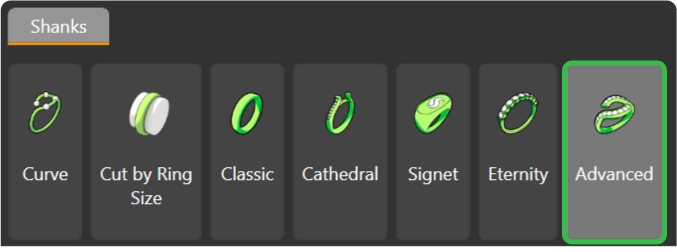

Step 1: In the “Shanks” menu, select the “Advanced” command.

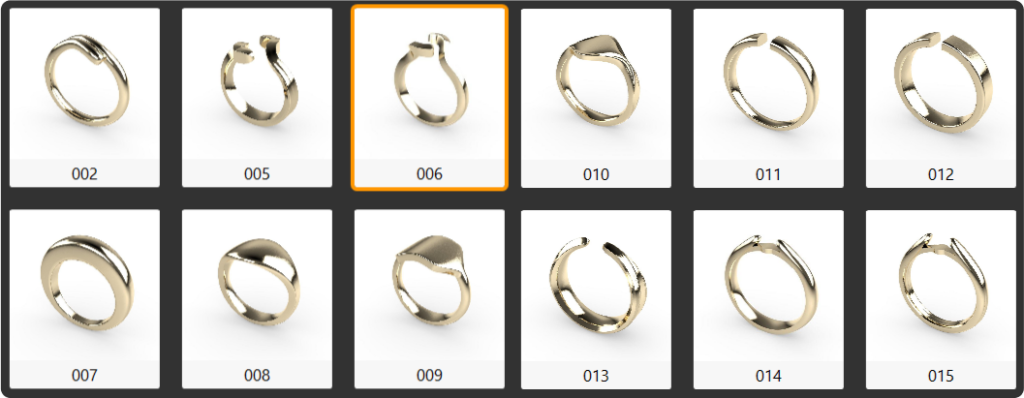

Step 2: Choose the 006 model and click “Edit.”

Step 3: Adjust the shank size.
- Region: United States of America.
- Size: 7.

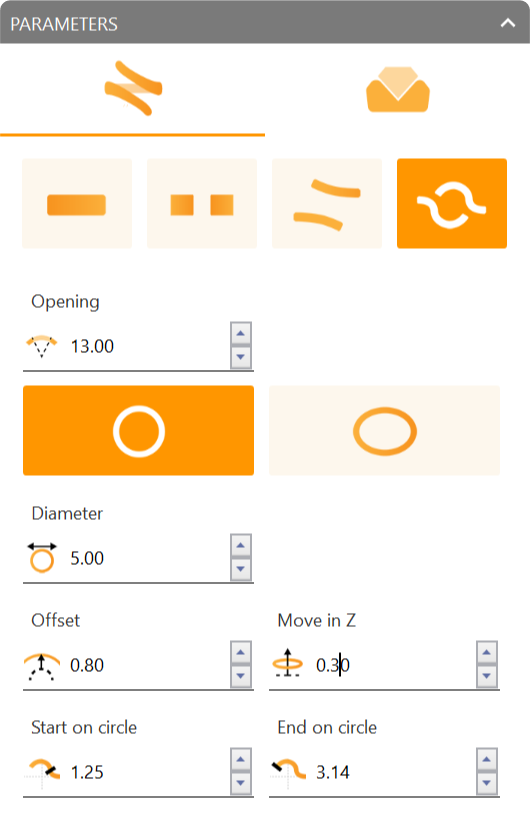

Step 4: Set the opening parameters.
- Opening size: 13 millimeters.
- Opening mode: Round.
- Offset: 0.80 millimeters.
- Move in Z: 0.30 millimeters.


Video Lesson
Next Step: Adjust the shank profiles to complete the design.
