Create the Pattern with Circles
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Downloads

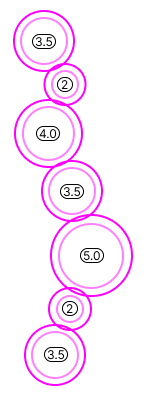

Objective: Arrange the circles into a pattern that fits the earring design.

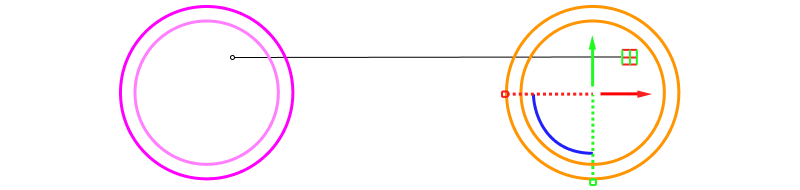

Step 1: Use the PlaneHandle on the gumball and hold Alt to move the circles and create a repeating pattern.
Step 2: Ensure that the outer curves overlap, and the distance between points is at least 1.5 mm. This ensures stability once the piece is manufactured.

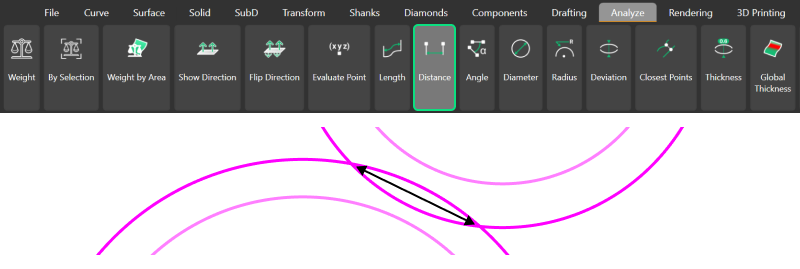

Step 3: Use the Distance command in the Analyze tab to measure the distance between two intersection points.
Step 4: Adjust the curves where necessary to ensure that every intersection meets the 1.5 mm minimum distance requirement for stability.
Video Lesson
Next Step: Create gemstones from the circles and apply the bezel set.
