Bezel Set - Ring
Lesson 47 of 58
Reference Line
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

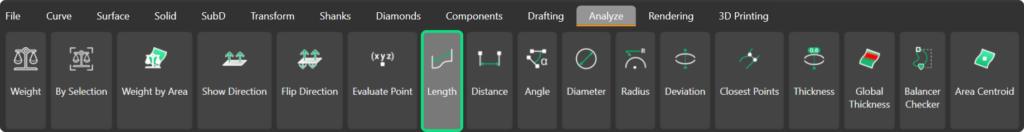

Step 1: Go to the Analyze tab and use the Length command to measure the length of the reference curve.

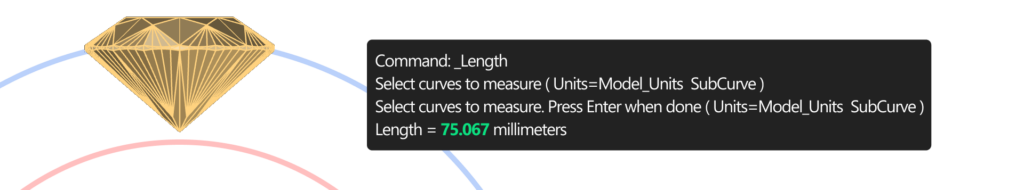

Step 2: In this case is 75.067 millimeters.

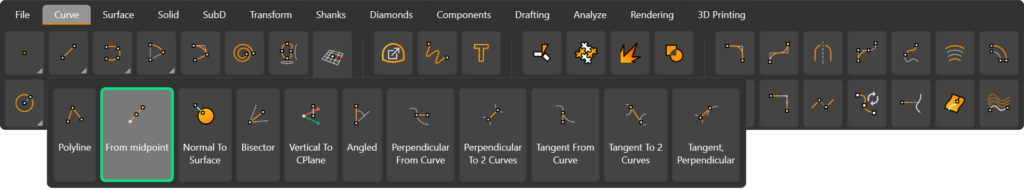

Step 2: In the Curve tab, under the Line submenu, select Line From Mid Point.

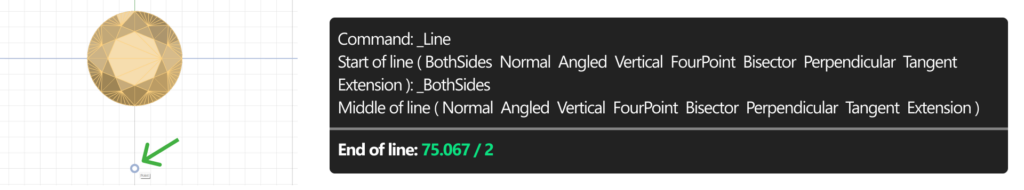

Step 3: From the Top View and with Grid Snap activated, select a center point below the elements.
Now, type the length of the curve followed by / and 2 to divide the measurement and create the correct line length.

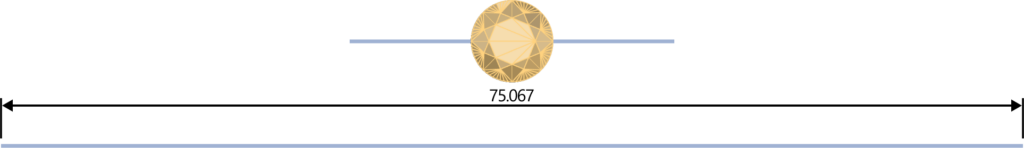

Step 4: Analyze this line to ensure it has the same length as the reference curve.
Video Lesson
Next Step: Insert the reference image and adjust the curves to start building the pattern.
