Fashion Ring
Lesson 5 of 58
Flow Along Curve
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

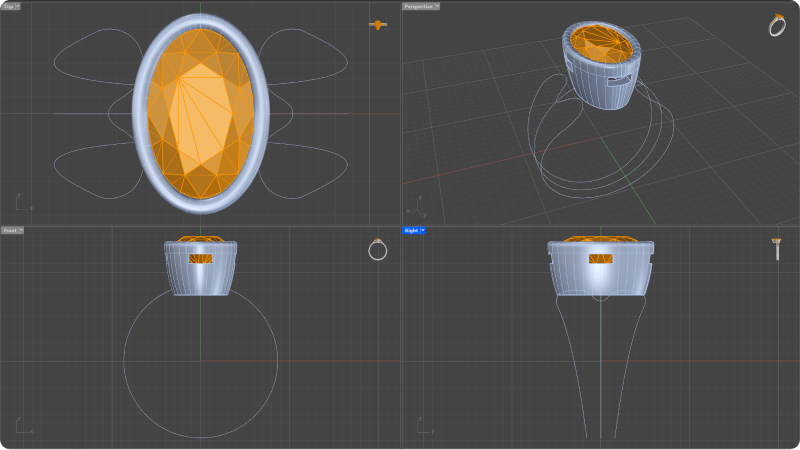

Objective: Position the profile curve correctly along the shank curve.

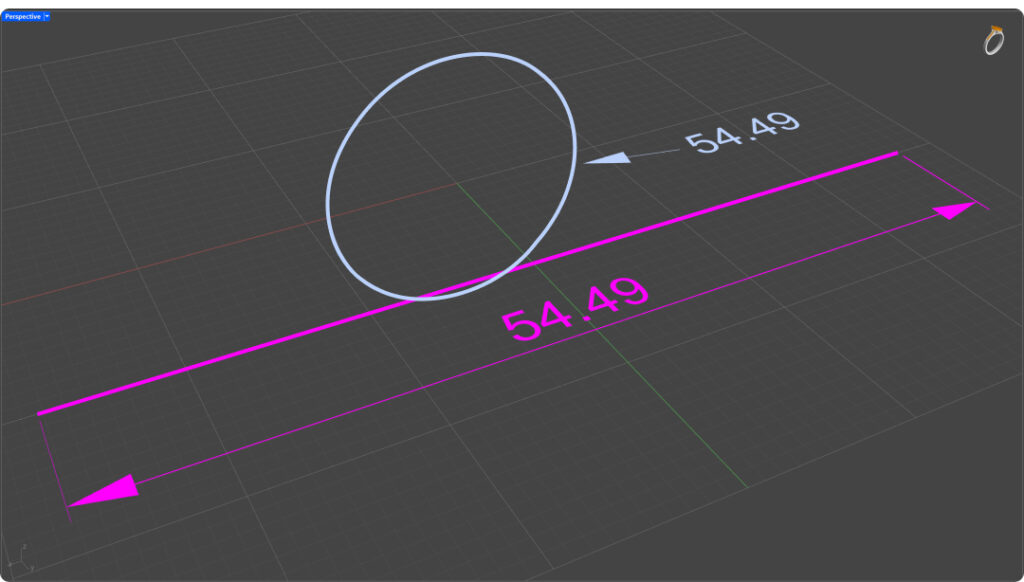

Step 1: Before creating the profile of the ring, we need to ensure that the provided curves are available and have the correct length to use the “Flow Along Curve” command properly.

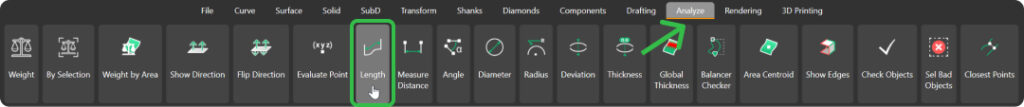

In the Analyze tab, run the Length command and select the line. Then use the command again to analyze the ring curve.

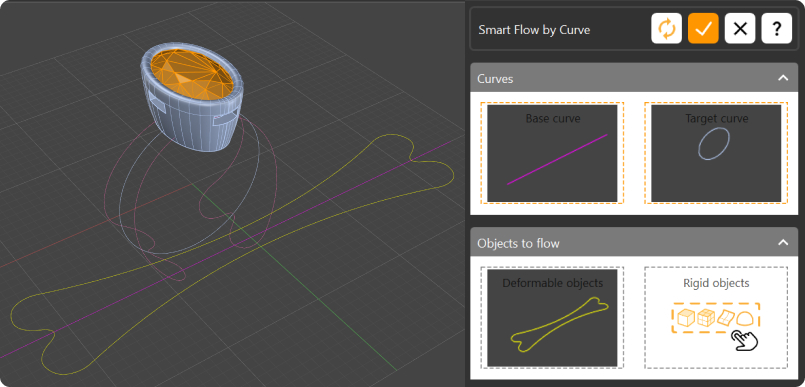

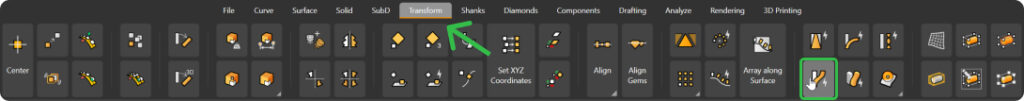

Step 2: Go to the “Transform” tab and select the “Quick Flow” command.
Step 2:
The base curve is the one with the reference length we need, which we ensured in Step 1.
The target curve is the curve where we want to flow something. In this case, we want to flow the profile curve into the ring curve.
For the Object to Flow option, there are two types:
- Deformable: The object changes its shape to adapt to the target curve.
- Rigid: The object does not change its shape, such as gems.
As we can see, the profile curve is not in the correct position, so we need to rotate it 180 degrees.

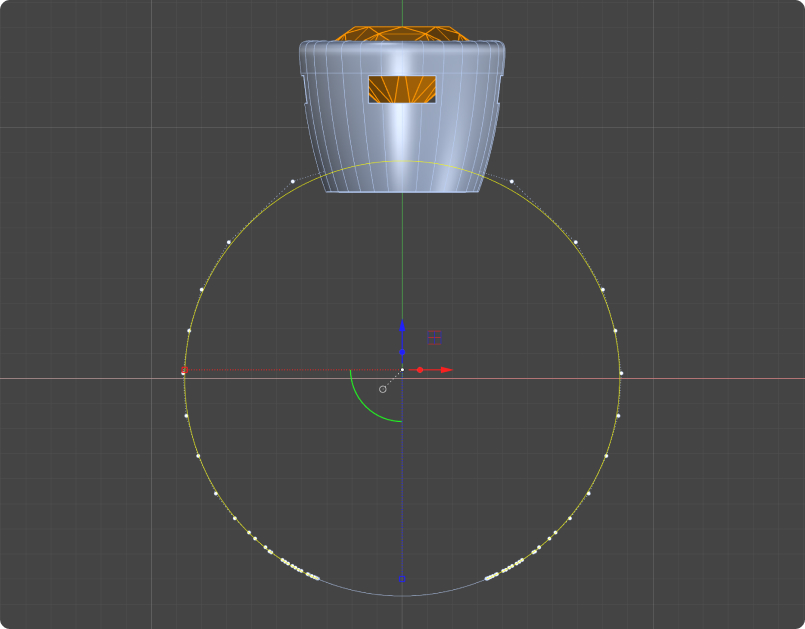

Step 3: Select the profile curve, go to the front view, and notice that the center of the curve is not aligned with the center of the viewport. We need to take this into account for the rotation.
Step 4: In the “transform tab” , use the “Rotate” command.
Type 0 to set the center at the plane of the viewport axis, and then rotate the curve 180 degrees, type 180 and press enter to align it correctly.
Video Lesson
Next Step: Use the Profile command to generate a custom shank from the profile curve.
